HIKVISION DS-7604NI-K1 User Manual

Network Video Recorder User Manual
223

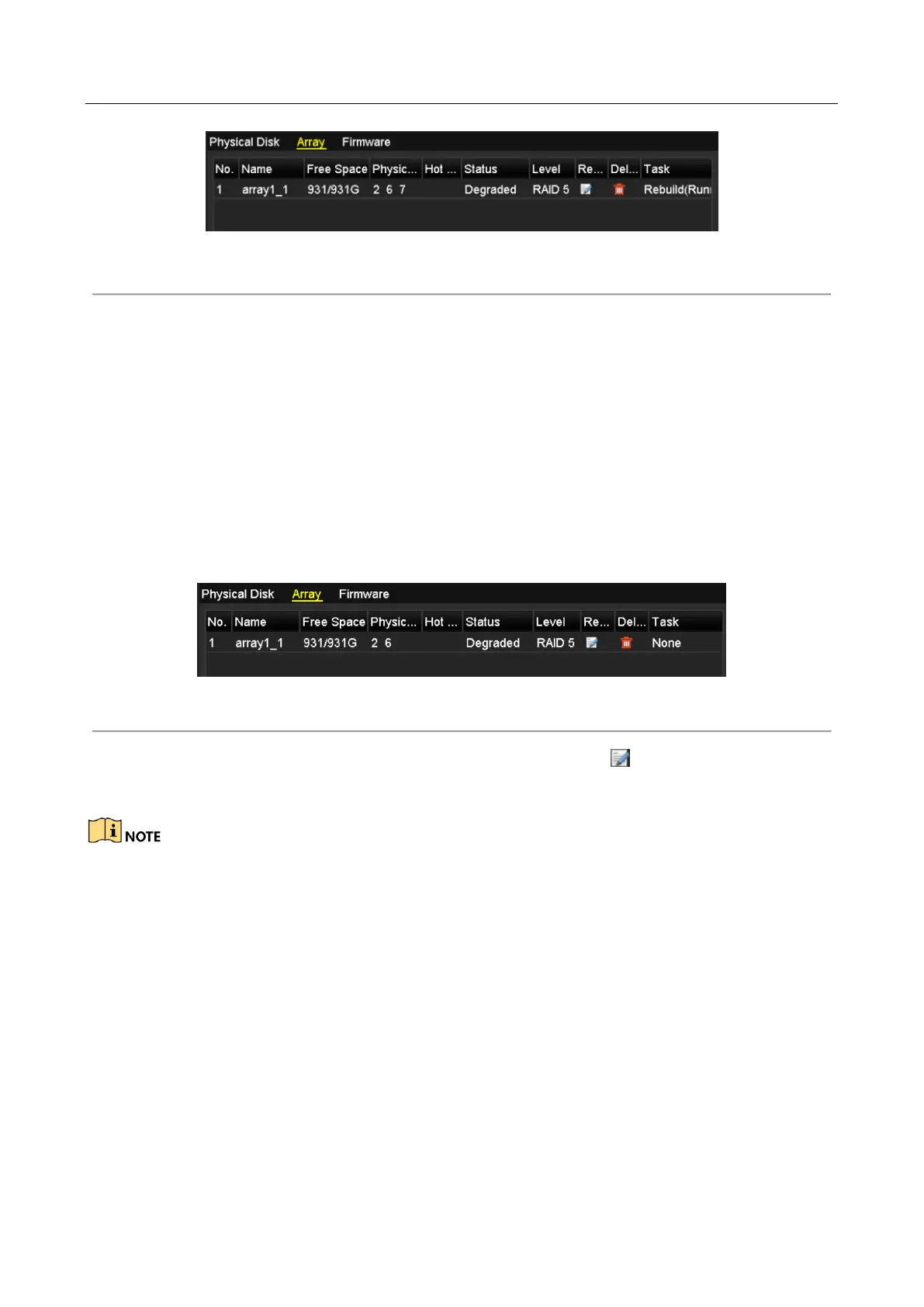

Figure 1. 2 Array Settings Interface
If there is no hot spare disk after rebuilding, it is recommended to install a HDD into the device and
set is as a hot spare disk to ensure the high security and reliability of the array.
13.2.3 Manually Rebuilding Array
Purpose:
If the hot spare disk has not been configured, you can rebuild the array manually to restore the
array when the virtual disk is in Degraded status.
Step 1 Enter the Array Settings interface. The disk 3 is lost.
Menu > HDD > RAID > Array
Figure 13-11 Array Settings Interface
Step 2 Click Array tab to back to the Array Settings interface and click to configure the array
rebuild.
At least one available physical disk should exist for rebuilding the array.

HIKVISION DS-7604NI-K1 Specifications

General

PTZ control	Yes
Display modes	Full screen, Live view, Playback, Split scren
Maximum frame rate	60 fps
Maximum resolution	3840 x 2160 pixels
Throughput data rate	40 Mbit/s
Video input channels	4 channels
Supported resolutions	3840 x 2160, 3840 x 2160, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video formats supported	H.264, H.264+, H.265, MPEG4
Resolution at capture speed	1280x720@60fps, 1920x1080@60fps, 3840x2160@30fps
Built-in display	No
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, DHCP, HIK Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	0
Product color	Black
Rack capacity	1U
Operating temperature (T-T)	-10 - 55 °C
Output voltage	12 V

Weight and Dimensions

Depth	225 mm
Width	260 mm
Height	48 mm
Weight	1000 g
