Network Video Recorder User Manual
56
2.3 Adding and Connecting the IP Cameras
2.3.1 Activating the IP Camera
Purpose:
Before adding the camera, make sure the IP camera to be added is in active status.
Step 1 Select the Add IP Camera option from the right-click menu in live view mode or click Menu>
Camera> Camera to enter the IP camera management interface.
For the IP camera detected online in the same network segment, the Password status shows
whether it is active or inactive.

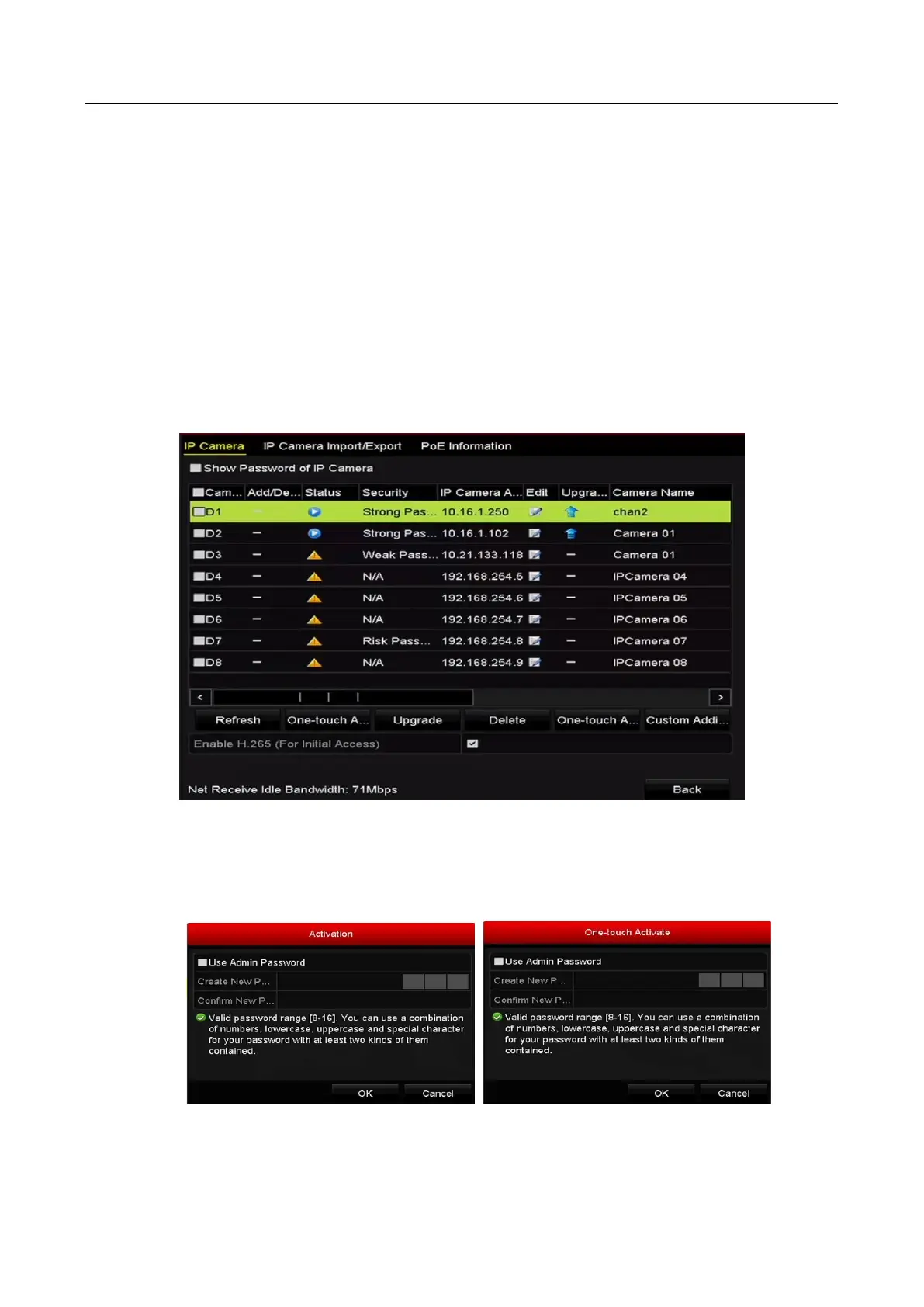

Figure 2-25 IP Camera Management Interface
Step 2 Click the inactive icon of the camera to enter the following interface to activate it. You can
also select multiple cameras from the list and click the One-touch Activate to activate the
cameras in batch.
Figure 2-26 Activate the Camera

HIKVISION DS-7604NI-K1 Specifications

General

PTZ control	Yes
Display modes	Full screen, Live view, Playback, Split scren
Maximum frame rate	60 fps
Maximum resolution	3840 x 2160 pixels
Throughput data rate	40 Mbit/s
Video input channels	4 channels
Supported resolutions	3840 x 2160, 3840 x 2160, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video formats supported	H.264, H.264+, H.265, MPEG4
Resolution at capture speed	1280x720@60fps, 1920x1080@60fps, 3840x2160@30fps
Built-in display	No
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, DHCP, HIK Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	0
Product color	Black
Rack capacity	1U
Operating temperature (T-T)	-10 - 55 °C
Output voltage	12 V

Weight and Dimensions

Depth	225 mm
Width	260 mm
Height	48 mm
Weight	1000 g
