9.2 Configuring Overlay Channel
Purpose:
You can assign the POS machine to corresponding channel on which you want to overlay.
Step 1 Enter the POS settings interface.
Menu > Configuration > POS> Overlay Channel
Step 2 Click to select the IP camera from the camera list on the right, and then click a POS item
from the POS device list you want to overlay the POS information on the selected camera.
Click or to go to the previous or next page of cameras.
Each POS device can be selected for one camera only.

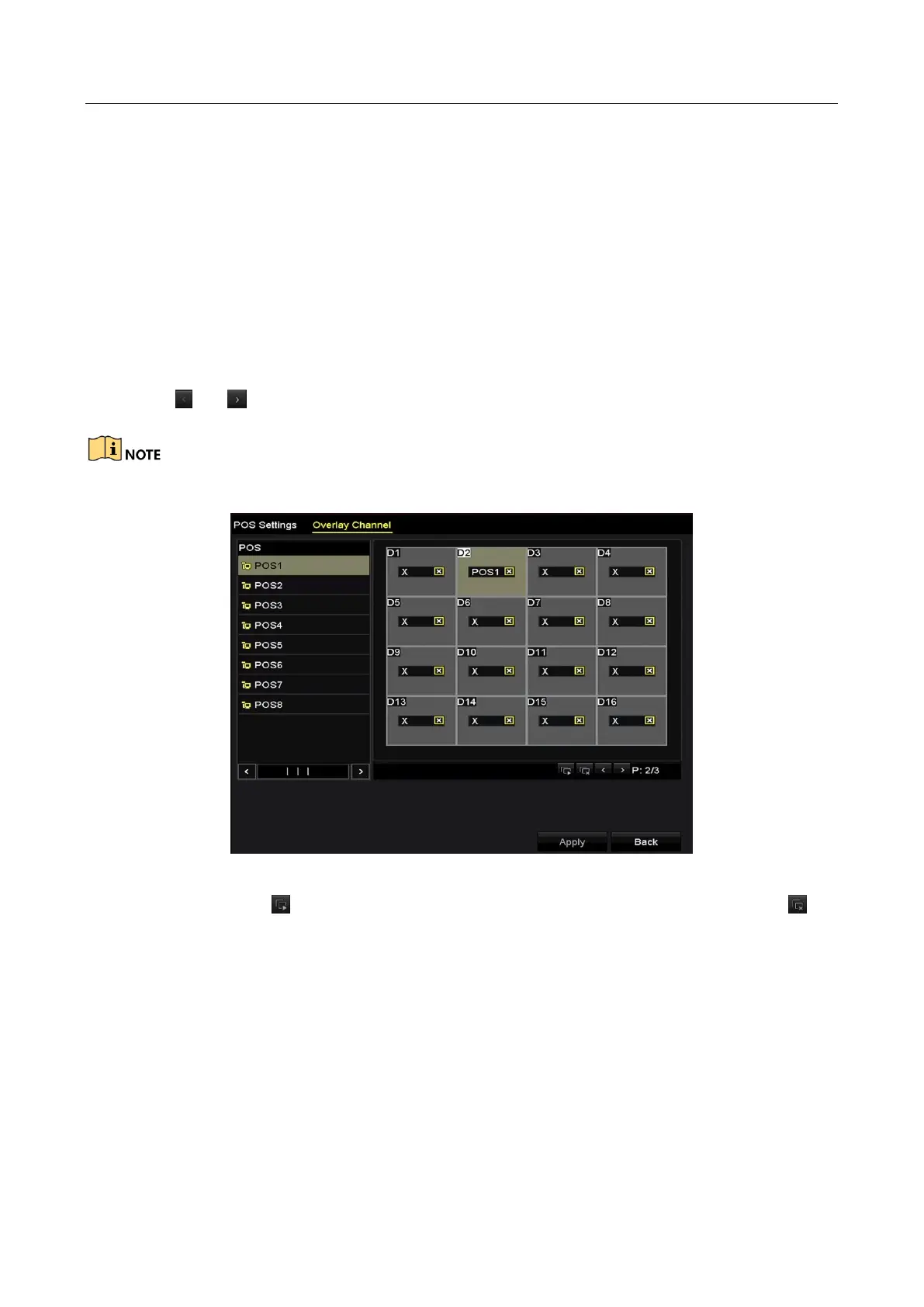

Figure 9-13 Overlay Channel Settings
Step 3 You can also click to overlay all POS items to the first 8 channels in order. And the is
used to clear all POS overlay settings.
Step 4 Click the Apply button to save the settings.

HIKVISION DS-7604NI-K1 Specifications

General

PTZ control	Yes
Display modes	Full screen, Live view, Playback, Split scren
Maximum frame rate	60 fps
Maximum resolution	3840 x 2160 pixels
Throughput data rate	40 Mbit/s
Video input channels	4 channels
Supported resolutions	3840 x 2160, 3840 x 2160, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video formats supported	H.264, H.264+, H.265, MPEG4
Resolution at capture speed	1280x720@60fps, 1920x1080@60fps, 3840x2160@30fps
Built-in display	No
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, DHCP, HIK Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	0
Product color	Black
Rack capacity	1U
Operating temperature (T-T)	-10 - 55 °C
Output voltage	12 V

Weight and Dimensions

Depth	225 mm
Width	260 mm
Height	48 mm
Weight	1000 g
