Network Video Recorder User Manual
68
2.3.5 Configuring PoE Interface
When it requires long-distance PoE transmission (100 to 300 m), you can configure the PoE
channel to the long network cable mode.
Step 1 Enter the PoE Configuration interface.
Menu> Camera> Camera>PoE Configuration
Step 2 Click the radio button of each POE channel to switch and . You can click the radio
button of PoE Channel to enable or disable the long network cable mode.
ON: Long-distance (100 - 300 meters) network transmissions via POE interface.
OFF: Short-distance (< 100 meters) network transmission via POE interface.

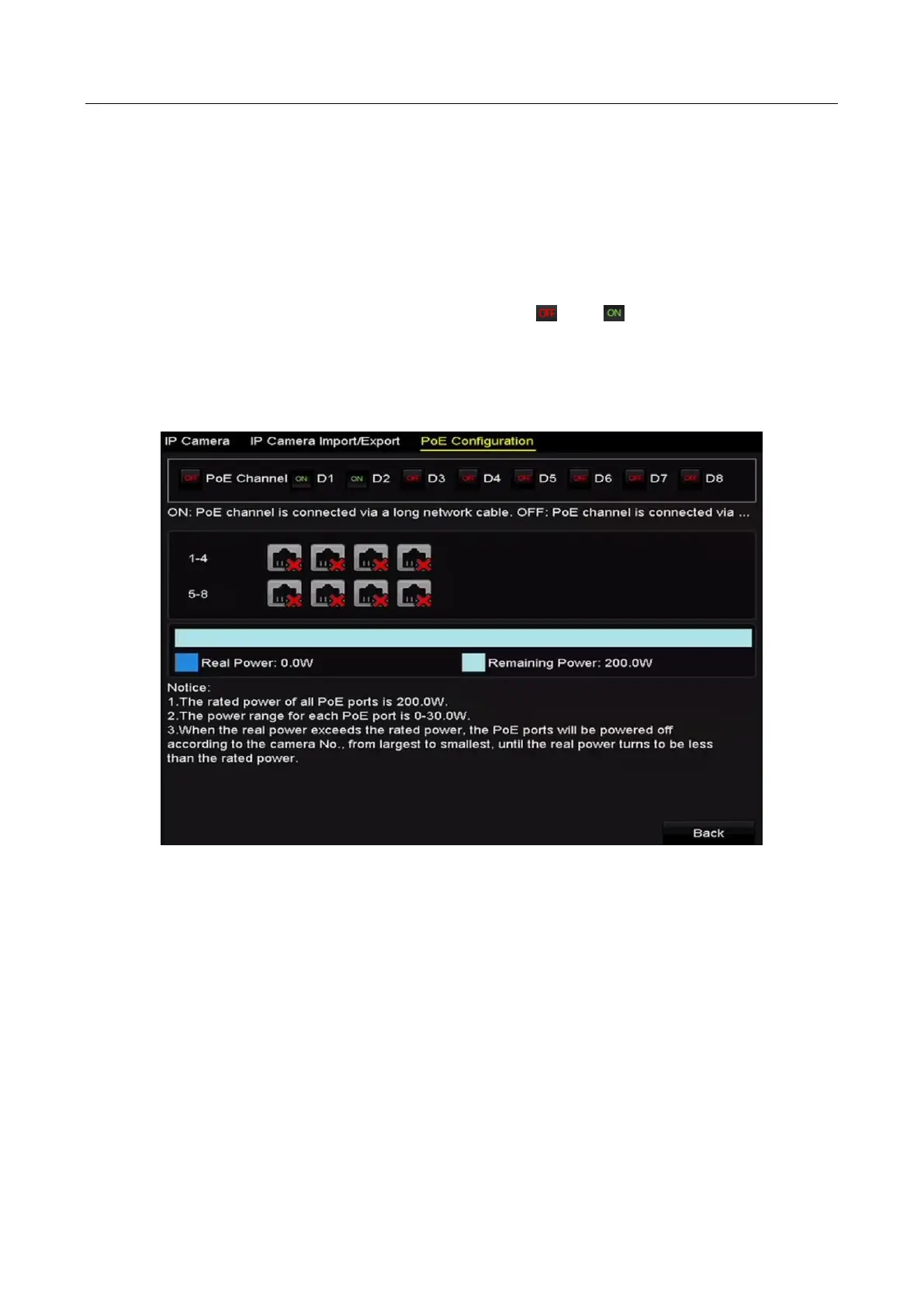

Figure 2-43 Configure PoE Interface

HIKVISION DS-7604NI-K1 Specifications

General

PTZ control	Yes
Display modes	Full screen, Live view, Playback, Split scren
Maximum frame rate	60 fps
Maximum resolution	3840 x 2160 pixels
Throughput data rate	40 Mbit/s
Video input channels	4 channels
Supported resolutions	3840 x 2160, 3840 x 2160, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video formats supported	H.264, H.264+, H.265, MPEG4
Resolution at capture speed	1280x720@60fps, 1920x1080@60fps, 3840x2160@30fps
Built-in display	No
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, DHCP, HIK Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	0
Product color	Black
Rack capacity	1U
Operating temperature (T-T)	-10 - 55 °C
Output voltage	12 V

Weight and Dimensions

Depth	225 mm
Width	260 mm
Height	48 mm
Weight	1000 g
