HIKVISION DS-7604NI-K1 User Manual

Network Video Recorder User Manual
252
16.4 Importing/Exporting Configuration Files
Purpose:
The configuration files of the NVR can be exported to local device for backup; and the
configuration files of one NVR can be imported to multiple NVR devices if they are to be
configured with the same parameters.
Step 1 Enter the Import/Export Configuration File interface.
Menu > Maintenance >Import/Export

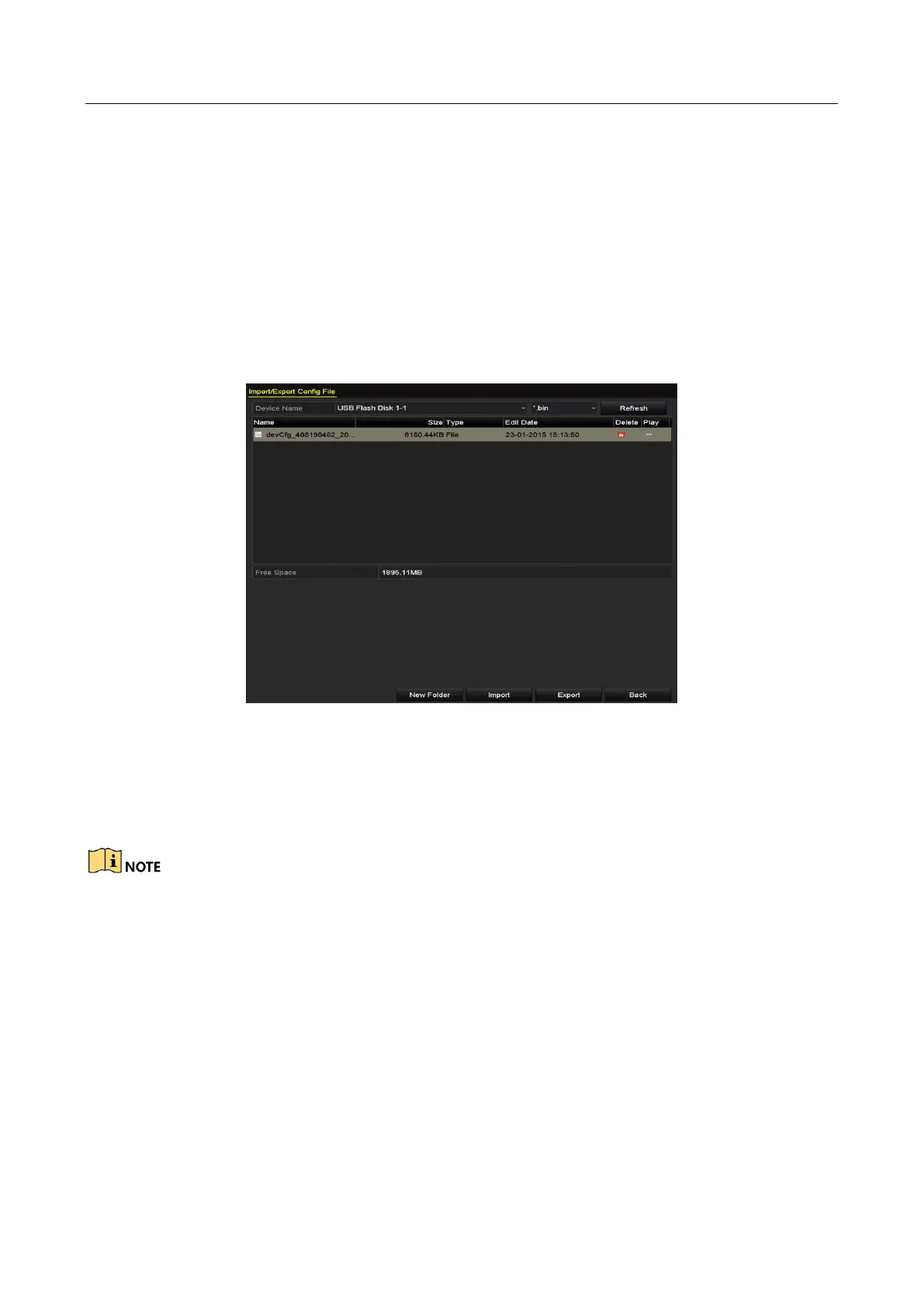

Figure 16-6 Import/Export Config File
Step 2 Click the Export button to export configuration files to the selected local backup device.
Step 3 To import a configuration file, select the file from the selected backup device and click the
Import button. After the import process is completed, you must reboot the NVR.
After having finished the import of configuration files, the device will reboot automatically.

HIKVISION DS-7604NI-K1 Specifications

General

PTZ control	Yes
Display modes	Full screen, Live view, Playback, Split scren
Maximum frame rate	60 fps
Maximum resolution	3840 x 2160 pixels
Throughput data rate	40 Mbit/s
Video input channels	4 channels
Supported resolutions	3840 x 2160, 3840 x 2160, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video formats supported	H.264, H.264+, H.265, MPEG4
Resolution at capture speed	1280x720@60fps, 1920x1080@60fps, 3840x2160@30fps
Built-in display	No
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, DHCP, HIK Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	0
Product color	Black
Rack capacity	1U
Operating temperature (T-T)	-10 - 55 °C
Output voltage	12 V

Weight and Dimensions

Depth	225 mm
Width	260 mm
Height	48 mm
Weight	1000 g
