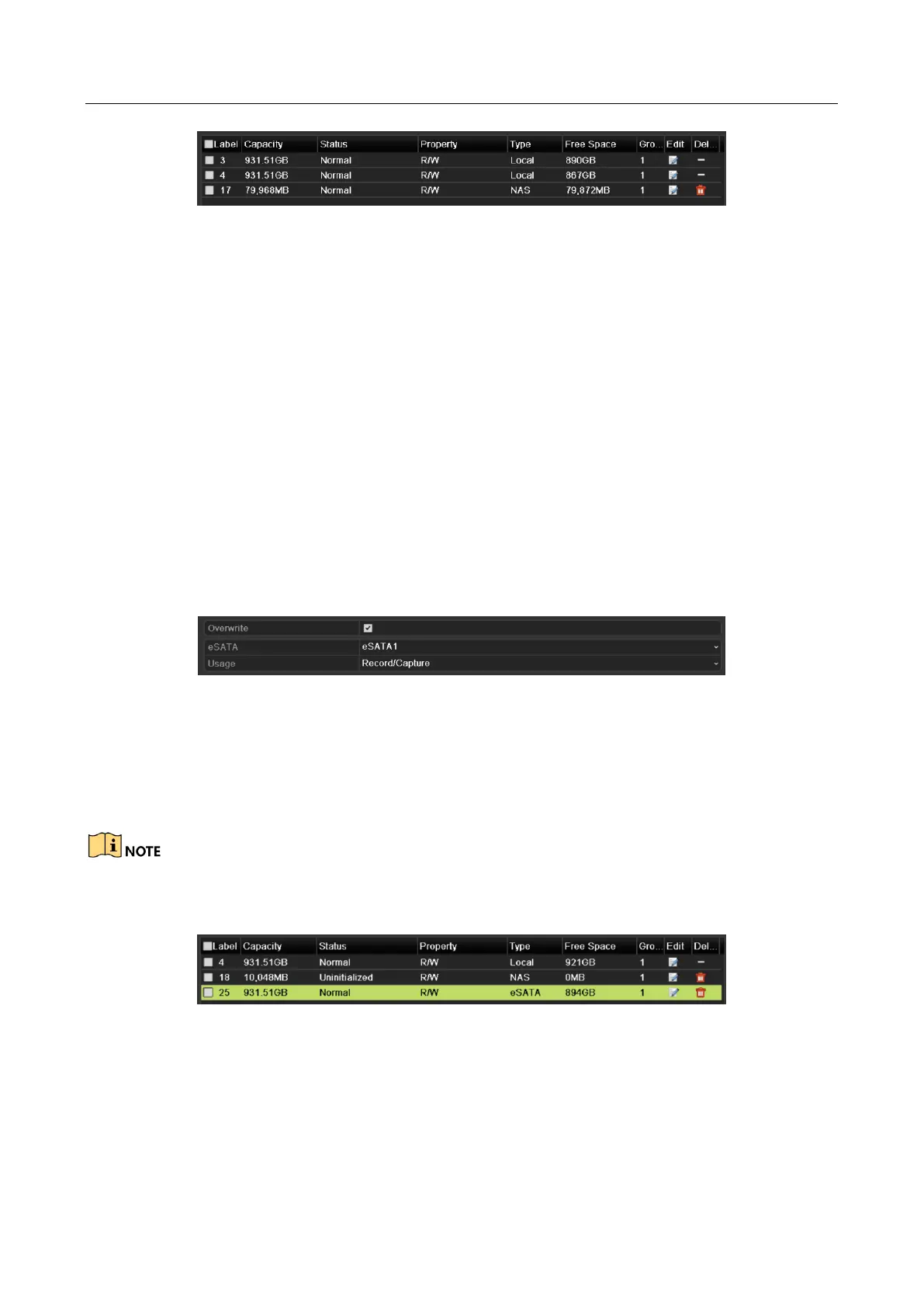

Figure 14-10 Initialize Added NetHDD
14.3 Managing eSATA
Purpose:
When there is an external eSATA device connected to NVR, you can configure eSATA for the use of
Record/Capture or Export, and you can manage the eSATA in the NVR.
Step 1 Enter the Advanced Record Settings interface.
Menu >Record>Advanced
Step 2 Select the eSATA type to Export or Record/Capture from the dropdown list of eSATA.
Export: use the eSATA for backup. Refer to Backup using eSATA HDDs in Chapter Backing up
by Normal Video/Picture Search for operating instructions.
Record/Capture: use the eSATA for record/capture. Refer to the following steps for
operating instructions.
Figure 14-11 Set eSATA Mode
Step 3 When the eSATA type is selected to Record/Capture, enter the HDD Information interface.
Menu > HDD>General
Step 4 Edit the property of the selected eSATA, or initialize it is required.
Two storage modes can be configured for the eSATA when it is used for Record/Capture. Please
refer to Chapter Managing HDD Group and Chapter Configuring Quota Mode for details.
Figure 14-12 Initialize Added eSATA

HIKVISION DS-7604NI-K1 Specifications

General

PTZ control	Yes
Display modes	Full screen, Live view, Playback, Split scren
Maximum frame rate	60 fps
Maximum resolution	3840 x 2160 pixels
Throughput data rate	40 Mbit/s
Video input channels	4 channels
Supported resolutions	3840 x 2160, 3840 x 2160, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video formats supported	H.264, H.264+, H.265, MPEG4
Resolution at capture speed	1280x720@60fps, 1920x1080@60fps, 3840x2160@30fps
Built-in display	No
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, DHCP, HIK Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	0
Product color	Black
Rack capacity	1U
Operating temperature (T-T)	-10 - 55 °C
Output voltage	12 V

Weight and Dimensions

Depth	225 mm
Width	260 mm
Height	48 mm
Weight	1000 g
