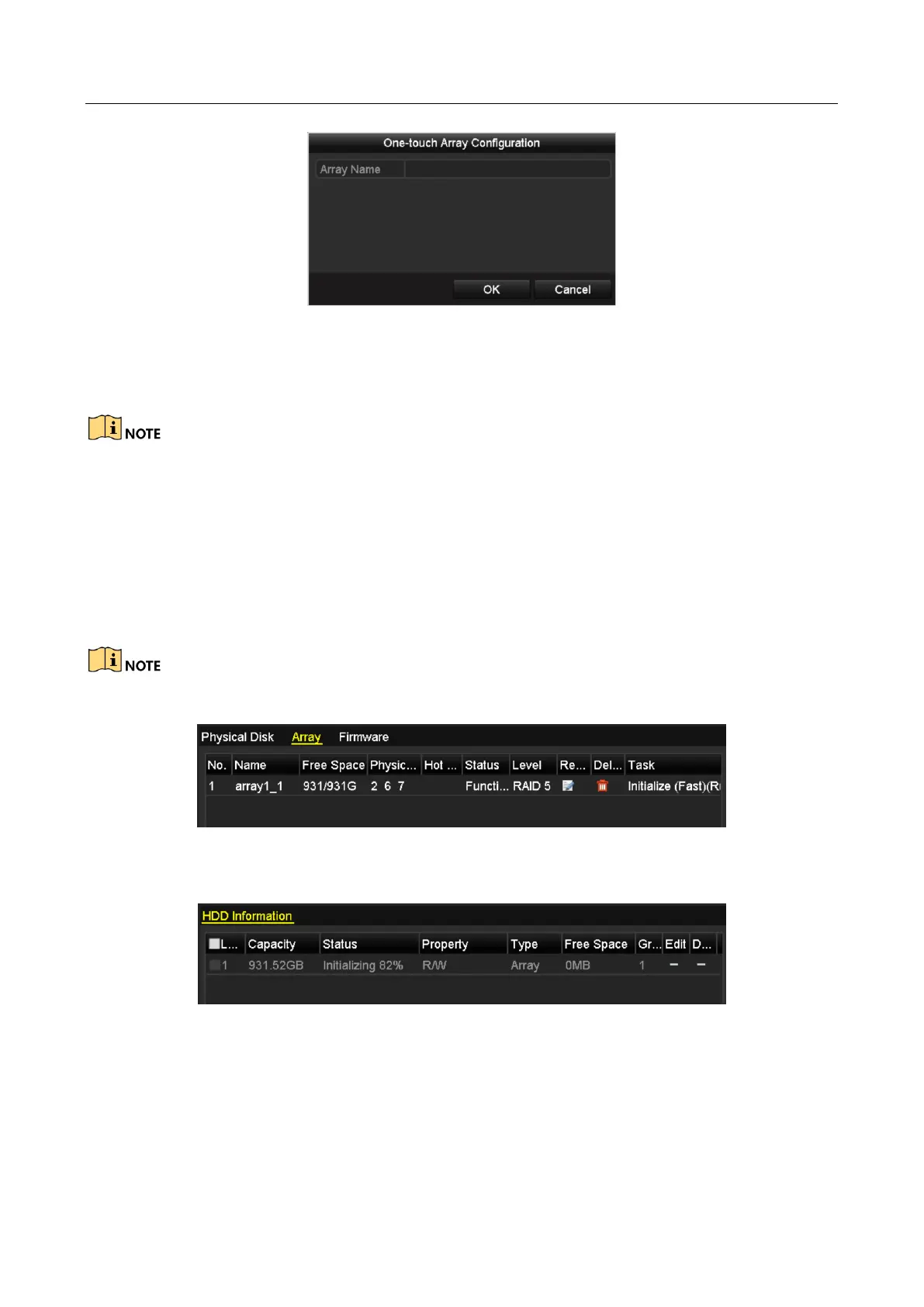

Figure 13-4 One-touch Array Configuration
Step 4 Edit the array name in the Array Name text filed and click OK button to start configuring
array.
If you install 4 HDDs or above for one-touch configuration, a hot spare disk will be set by default. It
is recommended to set hot spare disk for automatically rebuilding the array when the array is
abnormal.
Step 5 When the array configuration is completed, click OK button in the pop-up message box to
finish the settings.
Step 6 You can click Array tab to view the information of the successfully created array.
By default, one-touch configuration creates an array and a virtual disk.
Figure 13-5 Array Settings Interface
Step 7 A created array displays as an HDD in the HDD information interface.
Figure 13-6 HDD Information Interface
13.1.4 Manually Creating Array
Purpose:
You can manually create the array of RAID 0, RAID 1, RAID 5, RAID6 and RAID 10.

HIKVISION DS-7604NI-K1 Specifications

General

PTZ control	Yes
Display modes	Full screen, Live view, Playback, Split scren
Maximum frame rate	60 fps
Maximum resolution	3840 x 2160 pixels
Throughput data rate	40 Mbit/s
Video input channels	4 channels
Supported resolutions	3840 x 2160, 3840 x 2160, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video formats supported	H.264, H.264+, H.265, MPEG4
Resolution at capture speed	1280x720@60fps, 1920x1080@60fps, 3840x2160@30fps
Built-in display	No
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, DHCP, HIK Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	0
Product color	Black
Rack capacity	1U
Operating temperature (T-T)	-10 - 55 °C
Output voltage	12 V

Weight and Dimensions

Depth	225 mm
Width	260 mm
Height	48 mm
Weight	1000 g
