HIKVISION DS-7608NI-L1/W User Manual

Network Video Recorder User Manual
48
4) Click Settings, and the message box for channel information pops up.

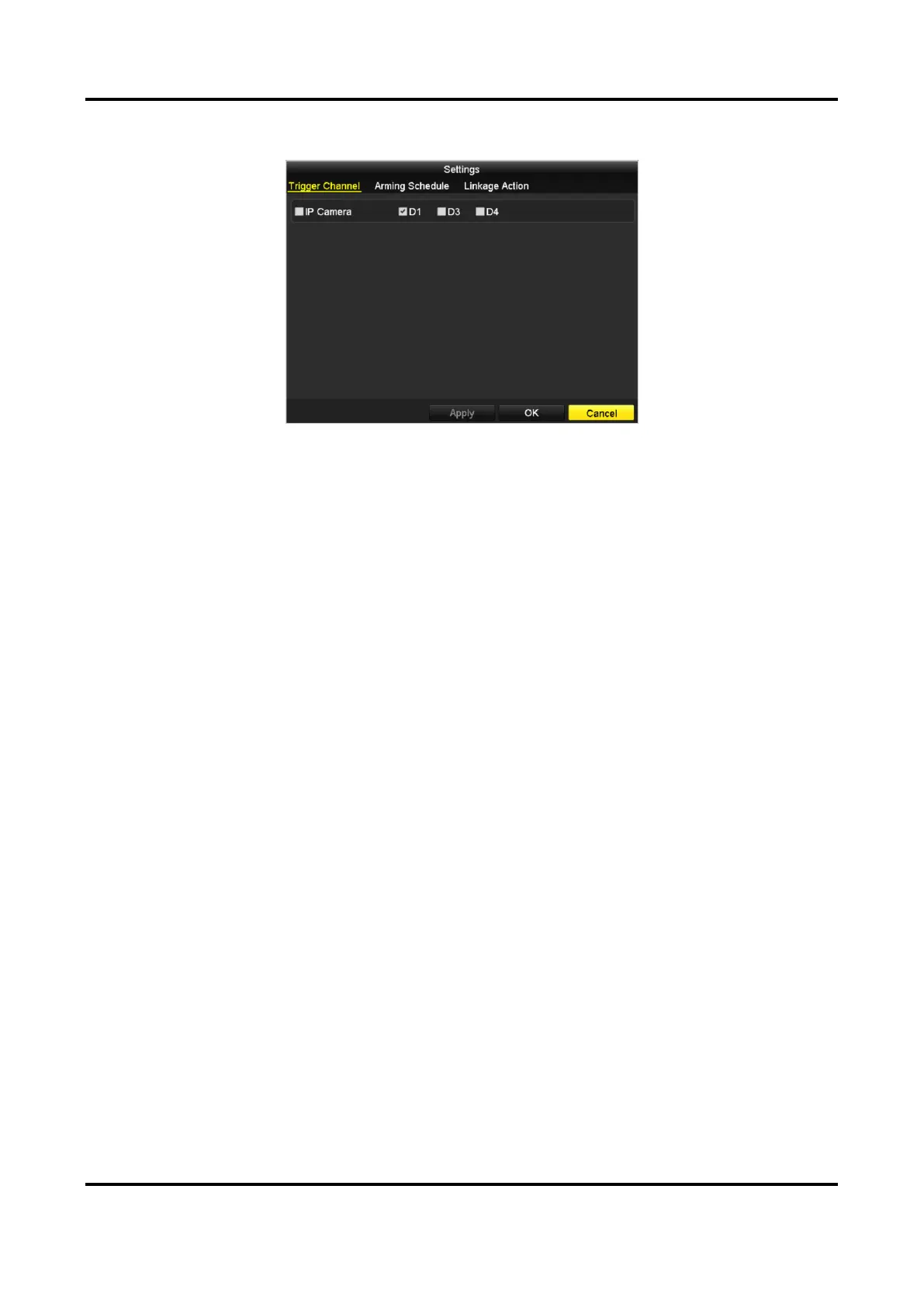

Figure 4-12 Motion Detection Handling
1. Select the channels which you want the motion detection event to trigger recording.
2. Click Apply to save the settings.
3. Click OK to back to the upper level menu.
4. Exit the Motion Detection menu.
3. Edit the Motion Detection Record Schedule. For the detailed information of schedule
configuration, see Configure Recording Schedule.
4.4 Configure Alarm Triggered Recording
Follow the procedure to configure alarm triggered recording.
Steps
1. Go to Menu → Configuration → Alarm.
