Network Video Recorder User Manual
61
manually. You can also click to set the full screen as the detection area.
7. Optional: You can click to filter the searched video files by setting the target characters,
including the gender and age of the human and whether he/she wears glasses.

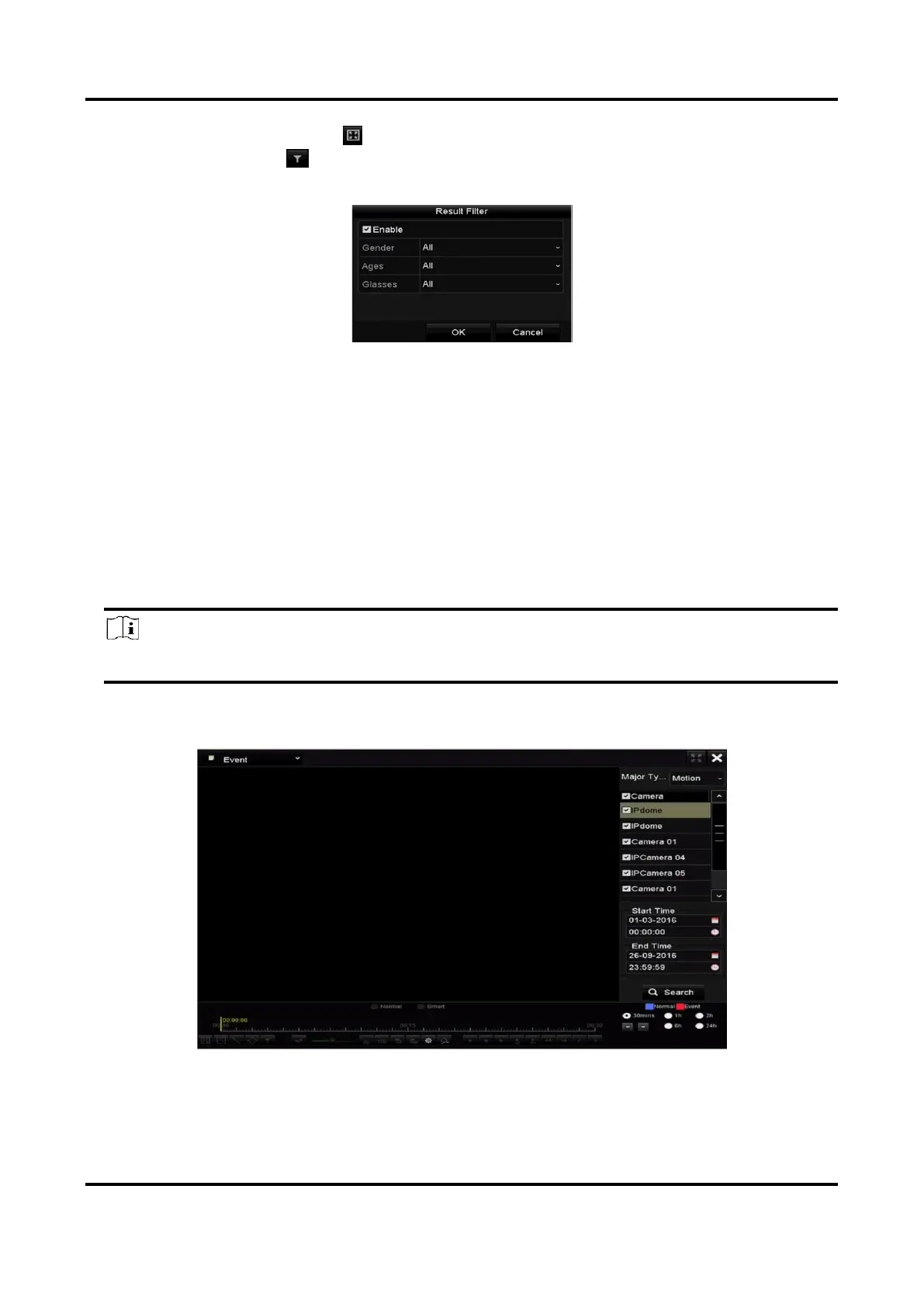

Figure 5-3 Set Result Filter
5.1.4 Play Back by Event Search
Play back record files on one or several channels searched out by event type (e.g., alarm input,
motion detection and VCA).
Steps
1. Go to Menu ā Playback.
2. Select Event in the drop-down list on the top-left side.
3. Select the major type to Alarm Input, Motion, or VCA as the event type.
Note
We take playback by VCA as the example in the following instructions.
Figure 5-4 Event Search Interface
4. Select the minor type of VCA from the drop-down list.
5. Select the camera (s) for searching, and set the Start time and End time.
To Next Page
