HIKVISION DS-9600NI-M8 Series User Manual

Network Video Recorder User Manual
40

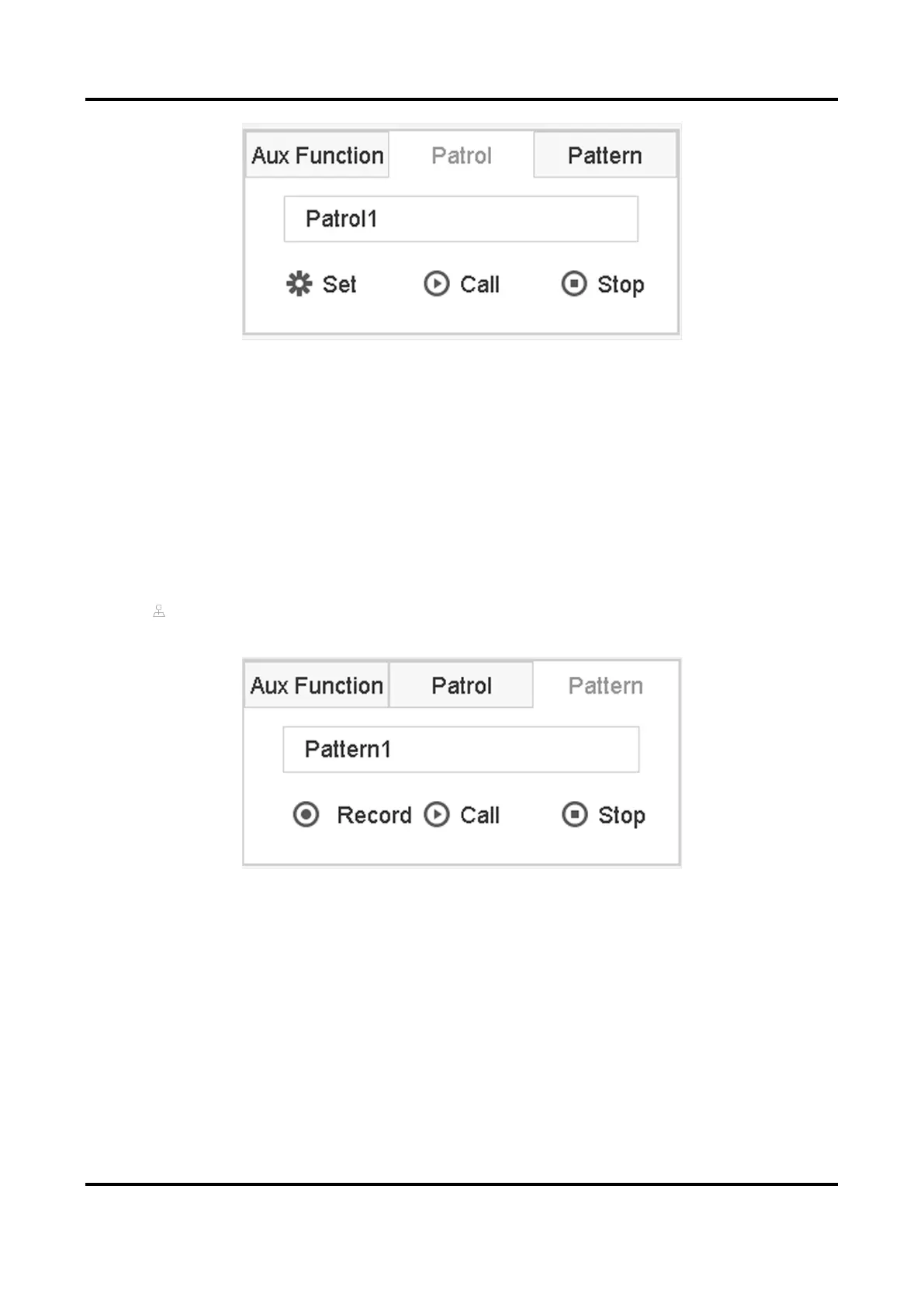

Figure 3-15 Patrol Configuration
3. Select a patrol.
4. Click Call to start the patrol.
5. Optional: Click Stop to stop the patrol.
3.7.6 Set a Pattern
Patterns can be set by recording the movement of the PTZ. You can call the pattern to make the
PTZ move according to the predefined path.
Steps
1. Click on the quick settings toolbar of the PTZ camera's live view.
2. Click Pattern to configure a pattern.
Figure 3-16 Pattern Configuration
3. Select the pattern No.
4. Set the pattern.
1) Click Record to start recording.
2) Click corresponding buttons on the control panel to move the PTZ camera.
3) Click Stop to stop recording. The PTZ movement is recorded as the pattern.

HIKVISION DS-9600NI-M8 Series Specifications

General

Brand	HIKVISION
Model	DS-9600NI-M8 Series
Category	Network Hardware
Language	English
