HIKVISION DS-9600NI-M8 Series User Manual

Network Video Recorder User Manual
65

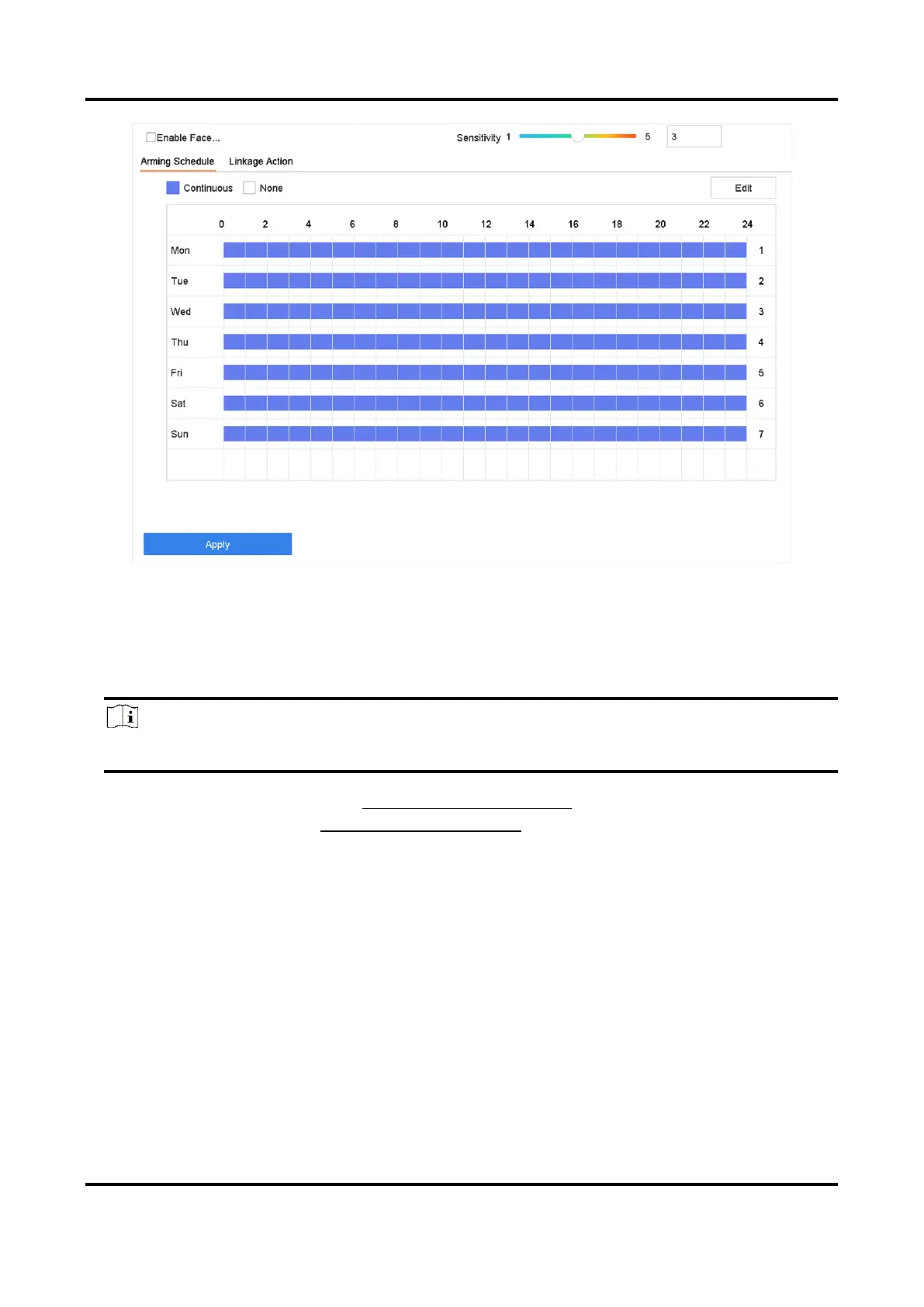

Figure 6-4 Face Capture
3. Select a camera to configure.
4. Check Enable Face Capture.
5. Optional: Check Save VCA Picture to save the captured pictures of face detection.
6. Set the detection sensitivity.
Note
Sensitivity range: [1-5]. The higher the value is, the easier faces will be detected.
7. Set the arming schedule. Refer to Configure Arming Schedule.
8. Set linkage actions. Refer to Configure Linkage Actions.
9. Click Apply.
6.2.5 Line Crossing Detection
Line crossing detection detects people, vehicles, and objects crossing a set virtual line. The
detection direction can be set as bidirectional, from left to right or from right to left.
Steps
1. Go to Smart Analysis → Smart Event Settings → Perimeter Protection.
2. Select a camera.
3. Click Line Crossing.
