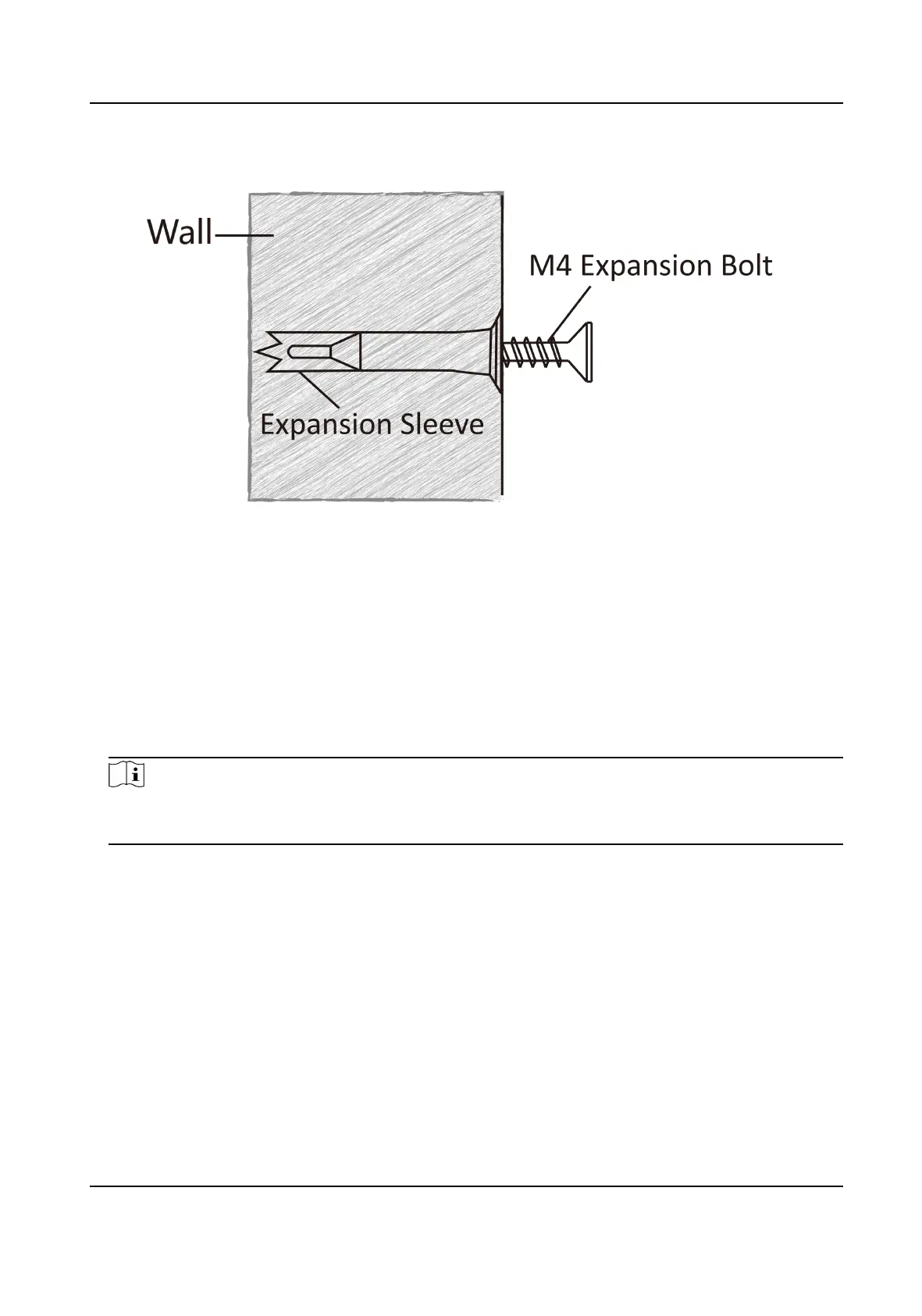

Figure 3-2 Install Screws
4.
Align the holes on the device plate with the xed screws and hang the device on the wall.
3.2 Install with Gang Box
Install device on the wall with gang box.
Steps
1.
Install the gang box on the wall.
Note
Make sure the gang box screw holes match the mounng plate's. The gang box in the picture is
for reference only.
2.
Fix the mounng plate on the gang box with 2 supplied screws.
DS-K1A802A Series Fingerprint Time Aendance Terminal User Manual
6
