Hitachi RX2 User Manual

4-25 ●Set the print format (Free layout; RX2-S only)
2015.07.0712:45
Com=0
−
《
＋
》
Back
M
Manual
Startup
Apply
HOME
00000 00100
Prev.item
abcde
fghij
klmno
Nextitem
abcde
fghij
klmno
Print format [Stop ]
Message name[ ]
Item1
Usagerange
Hor. 60
Vert. 16
Adjustment
char.cond.
Printspec.
Editmessage
Overall
itemmove
Individual
itemmove
Deleteitem Insertitem
Bold(times 1〜9)
Bar code
1
none
Inter-char. space
(MAX 0)
1
12x16
Dot matrix
4.8.2 Set the print items to be edited
(1) Function
●Set the "horizontal (X) coordinate" and "vertical (Y) coordinate" of the selected item at the
bottom-left.
●The total number of vertical dots and limit of the coordinate are as follows;
Total vertical dots and limit of coordinate
Model type
Total vertical dots Horizontal (X)
coordinate
Vertical (Y) coordinate
RX2-S
30 dots
(Option : Up to 32 dots)
0 to 31999
0 to 29
(Option : Up to 31)
Horizontal (X) coord. = 0
Vertical (Y) coord. = 0
Horizontal (X) coord. = 42
Vertical (Y) coord. = 4

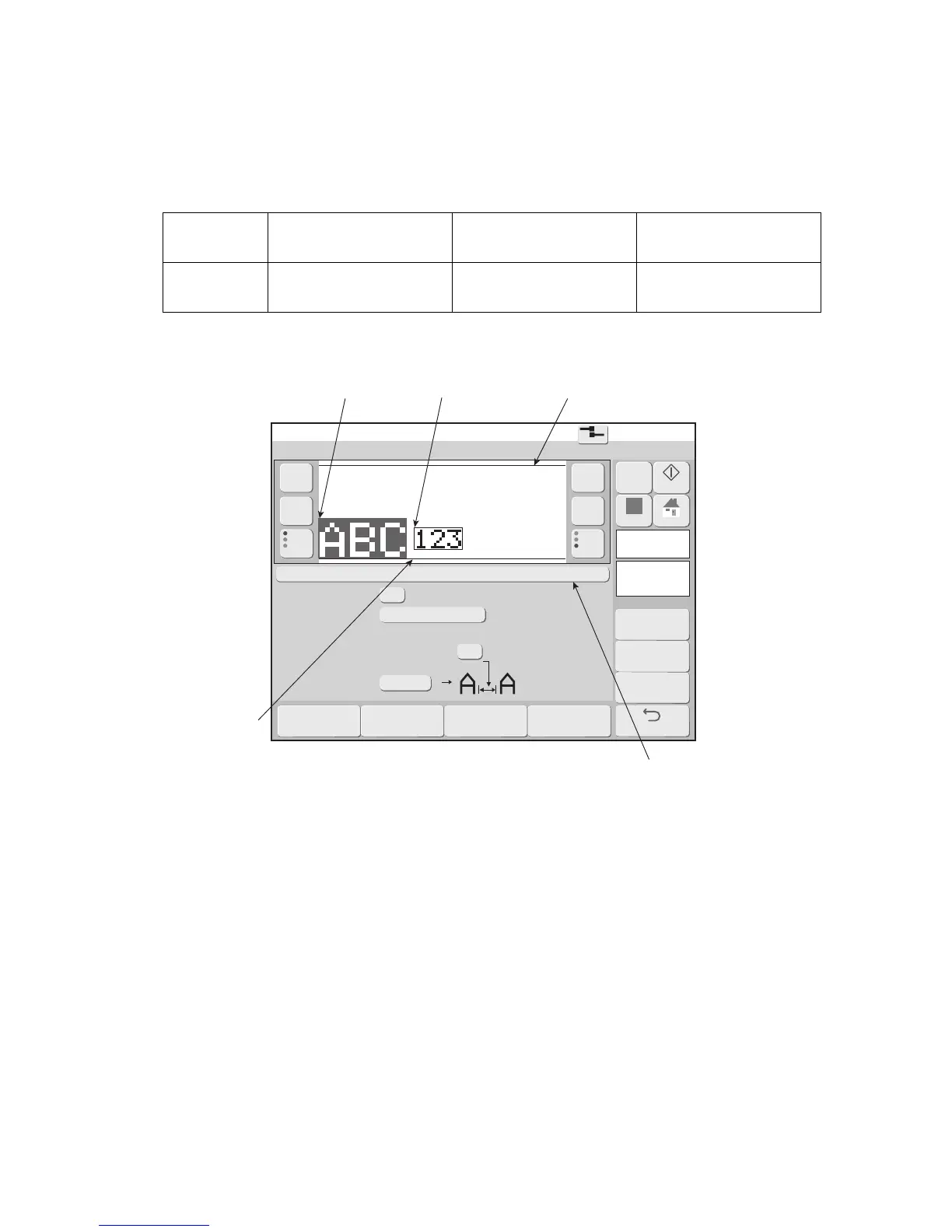

Display the upper limit line of the
vertical dots.
(The line position is changed by the
display magnification)
Display the Horizontal (X)
coordinate
Display the lower limit
line of the vertical dots.
(The line position is
changed by the
display magnification)
