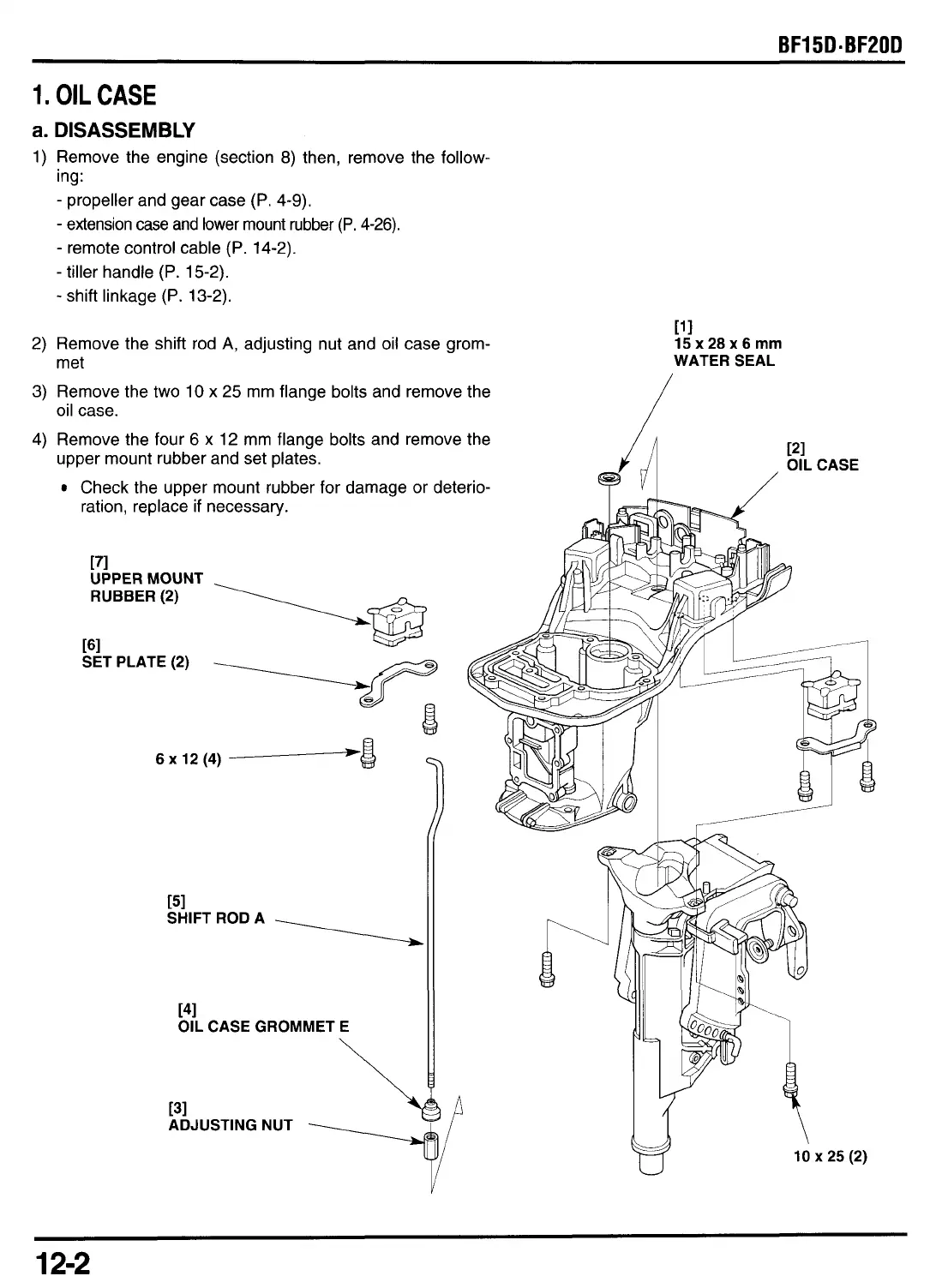

1. OIL CASE
a. DISASSEMBLY
1) Remove the engine (section 8) then, remove the follow-
ing:
- propeller and gear case (P. 4-9).
- extension case and tower mount rubber (P. 4-26).
- remote control cable (P. 14-2).
- tiller handle (P. 15-2).
- shift linkage (P. 13-2).
2) Remove the shift rod
A, adjusting nut and oil case grom-
3) Remove the two 10 x 25 mm flange bolts and remove the
met
oil case.
4)
11 1
15 x 28 x 6 mm
WATER SEAL
/
/
Remove the four 6 x 12 mm flange bolts and remove the
upper mount rubber and set plates.
Check the upper mount rubber for damage or deterio-
ration, replace if necessary.
[71
UPPER MOUNT
161
SET PLATE (2)
151
SHIFT ROD A
ADJUSTING NUT
II 10 x 25 (2)
12-2

Honda BF15D Specifications

General

Displacement	350 cc (21.4 cubic inches)
HP Rating	15 HP
Fuel Delivery	1 Carburetor
Ignition System	Digital CDI
Cooling System	Water Cooled
Gear Ratio	2.08:1
Lubrication	Wet Sump
Gear Shift	F-N-R
Engine Type	4-stroke
Full Throttle RPM Range	5000 - 6000 rpm
Starting System	Manual
Exhaust	Through Propeller
Fuel Tank Capacity	External tank
Oil Capacity	1.1 L
Fuel	Unleaded Gasoline
Shaft Length	15 inches
