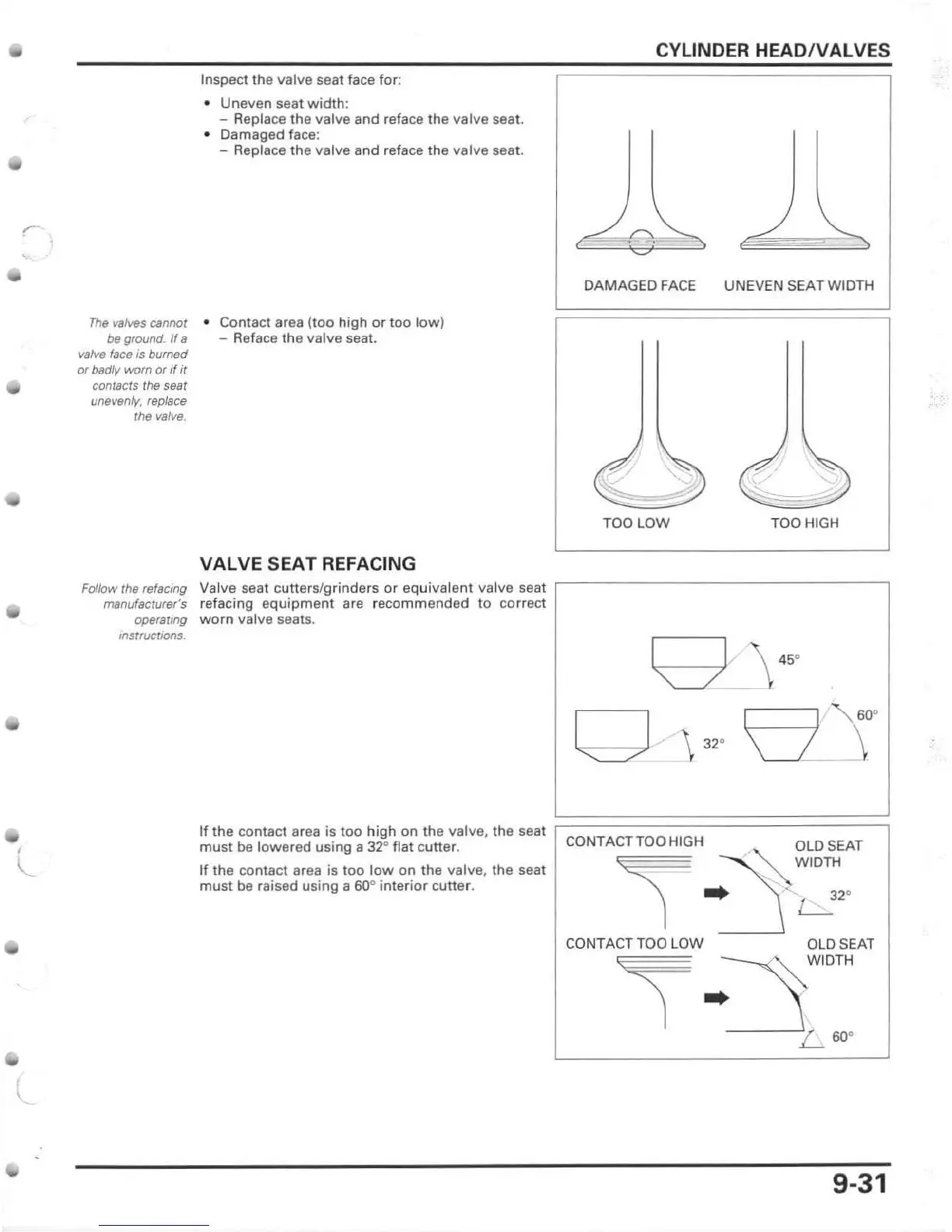

Inspect the valve seat face for:
• Uneven seat width :
- Replace the valve and retace the valve seat .
• Damaged face:
- Replace the valve and reface the valve seat.
The valves cannot • Contact area (too high or too low)
be ground. If B - Refaee the valve seat.
valve fsce is burned
01 badly worn or if it
contac ts the sear
unevenly, rep/ace
the valve.
VALVE SEAT REFACING
FOllow t he reracing Valve seat cutters/grinders or equivalent valve seat
manu fa CTure r' s refacing equipment are r ecommended to correct
oper ating worn valve seals.
mstruCf!OfIS.
If the contact area is too high on the valve, the seat
must be lowered using a 32" flat cutter .
If the contact area is too Iowan the valve, the seat
must be raised using a 60° interior cutter.
CYLINDER HEADIVALVES
.0.
D AMAG ED FACE UNEVEN SE AT WID TH
TOO lO W
TOO HIGH
9
\45
0
Q
V
"\ So o
\ 32°
\
'"."~. ~:;~'
CONTACT TOO LOW OLD SEAT
~ .. ~WIDTH
L 60°
9-31
