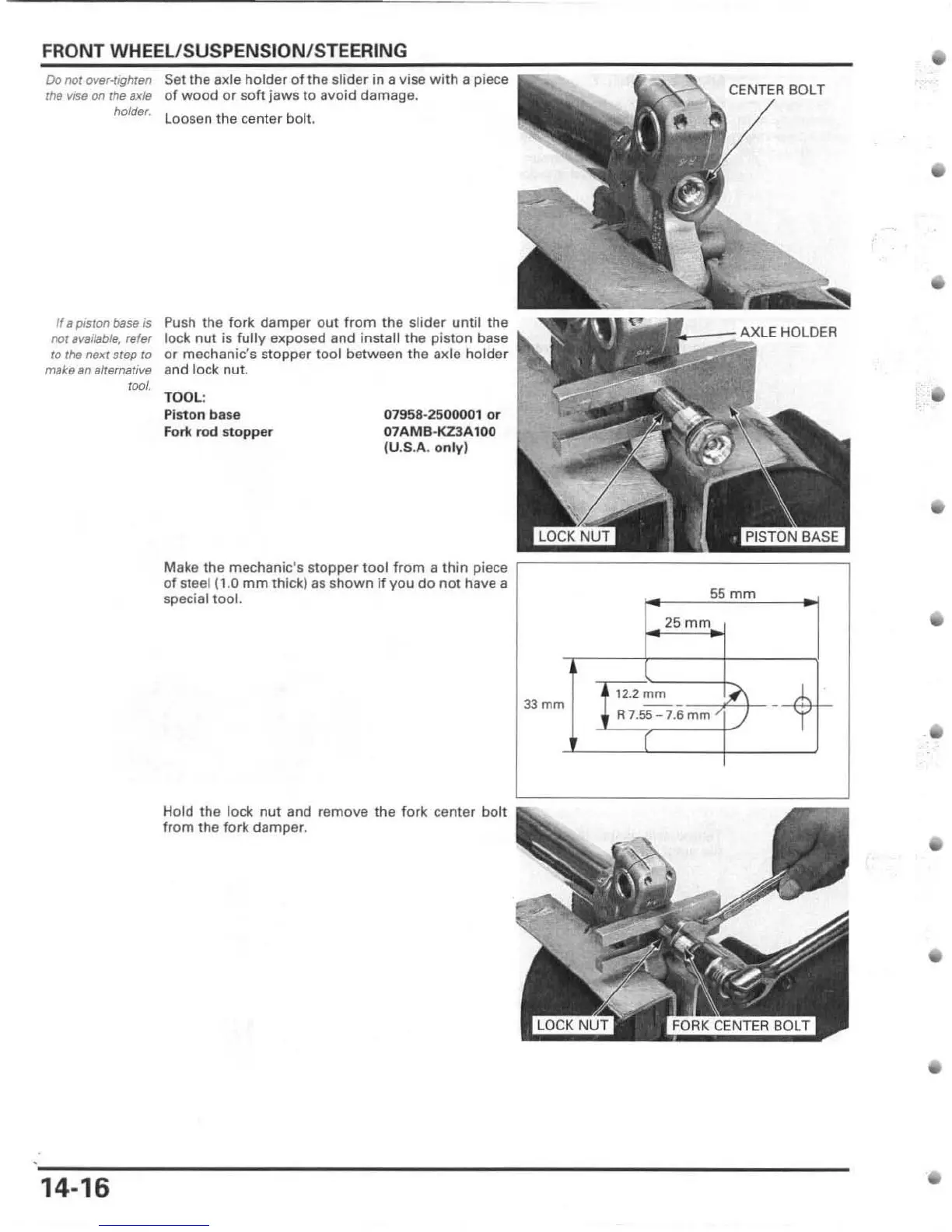

FRONT WHEEL/SUSPENSION/STEERING
Do not over-ughfen
the VIse on the axle
holder.
Set Ihe axle holder of the sl ider in a vise with a piece
of wood or soft jaws to avoid damage.
Loosen the center
bol t.
If a PIston base is Push the fork damper out from the slider until the
nol available, refer lock nut is fully exposed and install the piston base
to the next st ep fO or mechanic's stopper tool between the axle holder
make an alternative and lock nu t.
tool.
TOOL :
Piston base
Forti: rod s topper
07958-2500001 or
07 AMB-KZ3A 100
(U.S.A. only)
CEN TER BOLT
Make the mechanic's stopper 1 00 1 from a thin piece ~~~~~~~~~~~~~~~~~~~
14-16
of steel (1.0 mm thick) as shown if you do not have a
special tool.
Hold
the lock nut and remove the fork center bolt
from the fork dampe r.
33mm
55mm
25mm
~
~m
-
R7 . 55 - 7. 6mm
)
r

Honda CRF450R 2012 Specifications

General

Engine Type	449cc liquid-cooled single-cylinder four-stroke
Bore x Stroke	96.0mm x 62.1mm
Compression Ratio	12.5:1
Induction	Programmed Fuel Injection (PGM-FI), 46mm throttle body
Ignition	CDI
Transmission	Close-ratio five-speed
Final Drive	#520 chain; 13T/48T
Front Brake	Single 240mm disc with twin-piston caliper
Rear Brake	Single 240mm disc
Front Tire	80/100-21
Rear Tire	120/80-19
Seat Height	37.6 inches
Ground Clearance	13.2 inches
Front Suspension	12.2 inches travel
Rear Suspension	Pro-Link Showa single shock with spring preload, rebound and compression damping adjustability; 12.4 inches travel
Rake	27° 04'
Trail	4.6 inches
Wheelbase	58.3 inches
Curb Weight	249 pounds
