Honda CRF450R 2012 Service Manual

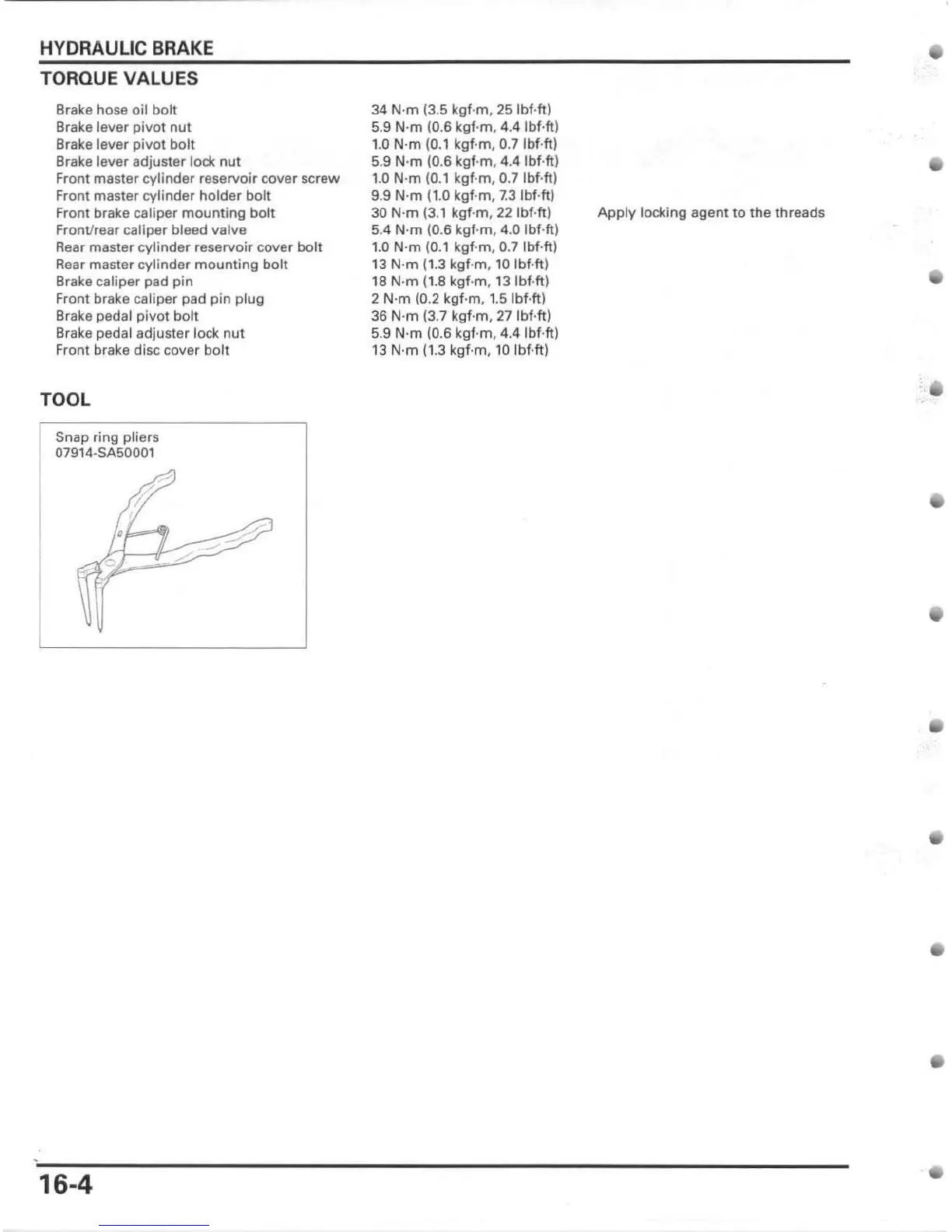

HYDRAULIC BRAKE
TORQUE VALUES
Brake hose oil bolt
Brake lever pivot nut
Brake lever pivot bolt
Brake lever adjuster lock nut
Front master cy linder reservoir cover screw
Front master cylinder
holder bolt
Front brake caliper mounting bolt
Fron t/ rear caliper bleed valve
Rear master cy linder reservoir cover bolt
Rear master cylinder mounting bolt
Brake caliper pad pin
front brake caliper pad pin plug
Brake pedal pivot bolt
Brake pedal adjuster lock nut
Front brake disc cover bolt
TOOL
Snap ring pliers
07914-SA50001
16-4
34 N-m (3.5 kgf - m, 25 Ibf.fU
5.9 N-m (0 .6 kgf · m, 4.4 Ibf.ft)
to N-m (0.1 kgf-m. 0.7 IbHt)
5.9 N'm (0.6 kgf-m, 4.4 Ibf.ftl
to N-m (0.1 kgf -m, O .7I hf.ft)
9.9 N-m (to kgf -m, 7.3 Ibf· h)
30 N-m (3.1 kgf·m, 22 Ibf.ft)
5.4 N·m (0.6 kgf·m, 4.0 Ibf.ftj
to N-m (0.1 kgf ·m, 0.7Ibf·ft)
13 N·m (1.3 kgf·m. 10 Ibf.ft)
18 N·m (1.8 kgf·m, 13Ibf ·ft)
2 N·m (0.2 kgf·m, 1.5 fbf·ft)
36 N'm (3.7 kgf·m, 27 Ibf·ft)
5.9 N'm (0.6 kgf · m, 4.4 Ibf·ft)
13 N·m ( 1. 3 kgf·m, 10 Ibf·ft)
Apply locking agent to the threads
•
•

Honda CRF450R 2012 Specifications

General

Engine Type	449cc liquid-cooled single-cylinder four-stroke
Bore x Stroke	96.0mm x 62.1mm
Compression Ratio	12.5:1
Induction	Programmed Fuel Injection (PGM-FI), 46mm throttle body
Ignition	CDI
Transmission	Close-ratio five-speed
Final Drive	#520 chain; 13T/48T
Front Brake	Single 240mm disc with twin-piston caliper
Rear Brake	Single 240mm disc
Front Tire	80/100-21
Rear Tire	120/80-19
Seat Height	37.6 inches
Ground Clearance	13.2 inches
Front Suspension	12.2 inches travel
Rear Suspension	Pro-Link Showa single shock with spring preload, rebound and compression damping adjustability; 12.4 inches travel
Rake	27° 04'
Trail	4.6 inches
Wheelbase	58.3 inches
Curb Weight	249 pounds
