OPTIONAL PARTS
Hanger Kit

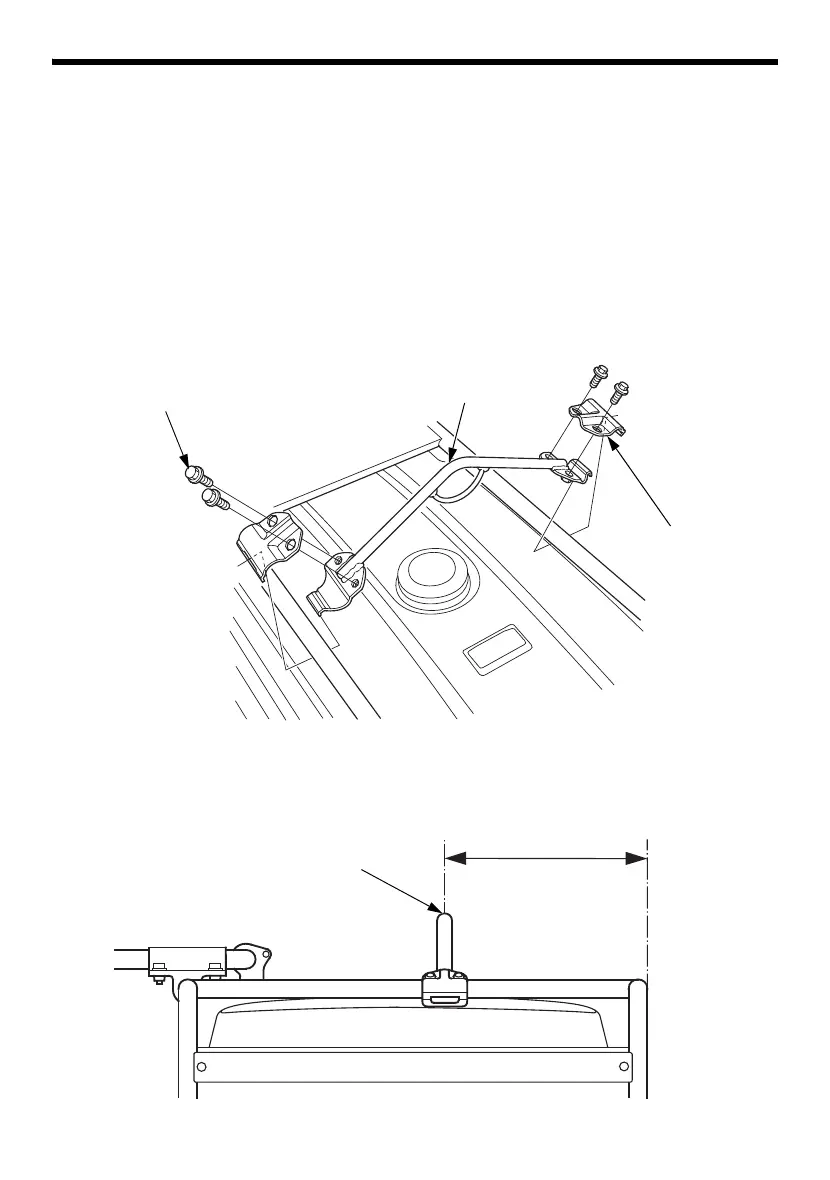

1. Position the hanger at the generator’s balance point as shown
below.
2. Fit the end tabs of the hanger through the bracket slots, and bolt the
brackets to the hanger and tighten securely.
TORQUE: 17–22 lbf·ft (24–29 N·m, 2.4–3.0 kgf·m)
8×16 mm FLANGE BOLT (4)
HANGER
HANGER BRACKET (2)
11 in (280 mm)
HANGER
GENERATOR
SIDE
