95
ASSEMBLY

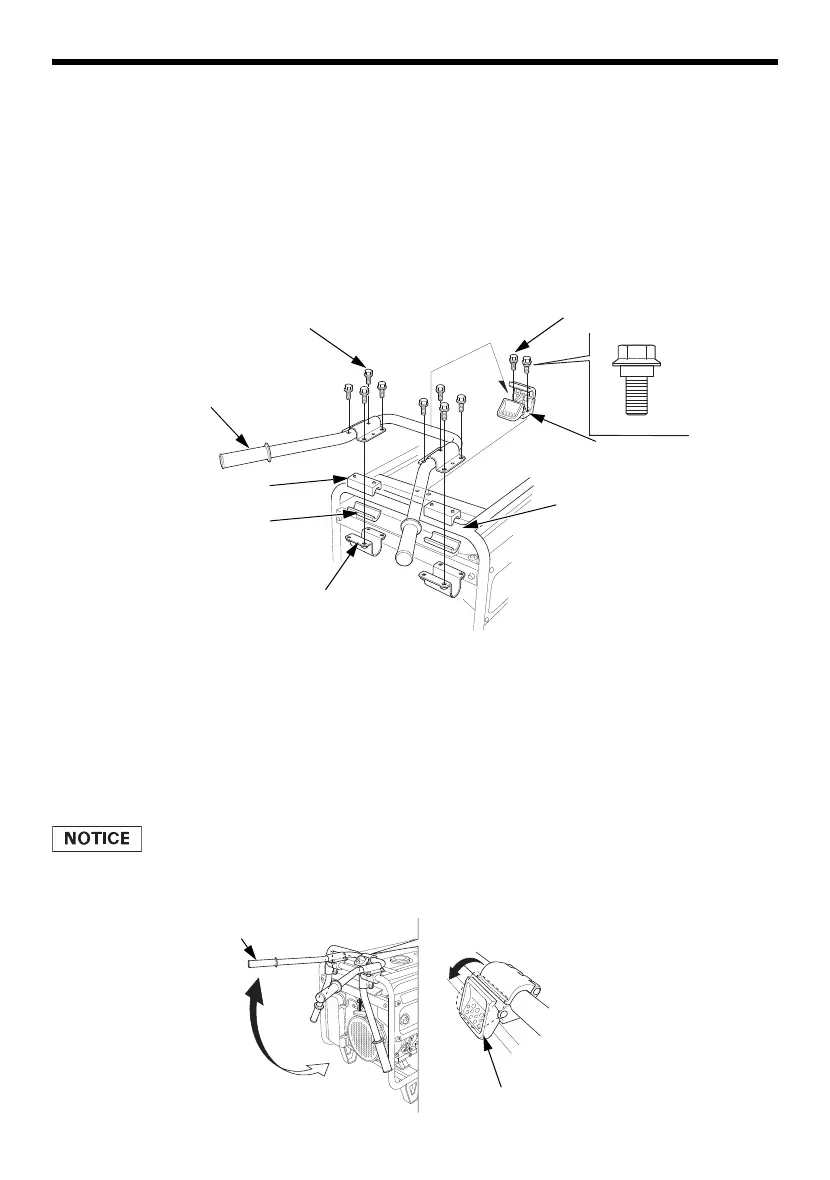

Handle Installation
1. Install the handle holder assembly on the generator upper frame
using the 8×18 mm flange bolts.
2. Install the handle assembly on the generator upper frame pipe
using the 8×16 mm flange bolts, handle bush A, handle bush B, and
handle lower bracket.
TORQUE: 17–22 lbf·ft (24–29 N·m, 2.4–3.0 kgf·m)
Operation must be checked after attaching the handle.
• Check that the handle can be folded smoothly.
• Check that the handle does not hang down by its own weight.
To extend handle:
Raise the handle to the horizontal position. The handle will click into
place when locked.
Pressing down on the handles may damage the handle holder
assembly. Only pull up on the handles to move the generator.
8×18 mm FLANGE BOLT (2)
8×16 mm FLANGE BOLT (8)
HANDLE ASSEMBLY
HANDLE BUSH A (2)
HANDLE BUSH B (2)
HANDLE LOWER BRACKET (2)
FRAME PIPE
HANDLE HOLDER ASSEMBLY
