CONTROLS & FEATURES
Fuel Gauge
The fuel gauge is a mechanical device that measures the fuel level in the
tank. The red indicator in the window will reference the level in relation
to full or empty. To provide increased operating time, start with a full
tank before beginning operation. Check the fuel level with the generator
on a level surface. Always refuel with the engine OFF and cool.
Ground Terminal
The generator ground terminal is connected to the frame of the
generator, the metal non-current-carrying parts of the generator, and
the ground terminals of each receptacle.
Before using the ground terminal, consult a qualified electrician,
electrical inspector, or local agency having jurisdiction for local codes
or ordinances that apply to the intended use of the generator.
NEUTRAL FLOATING:
• The generator (stator winding) is isolated from the frame and from
the AC receptacle ground pin.
• Electrical devices that require a grounded receptacle pin connection
will not function if the receptacle ground pin is not functional.

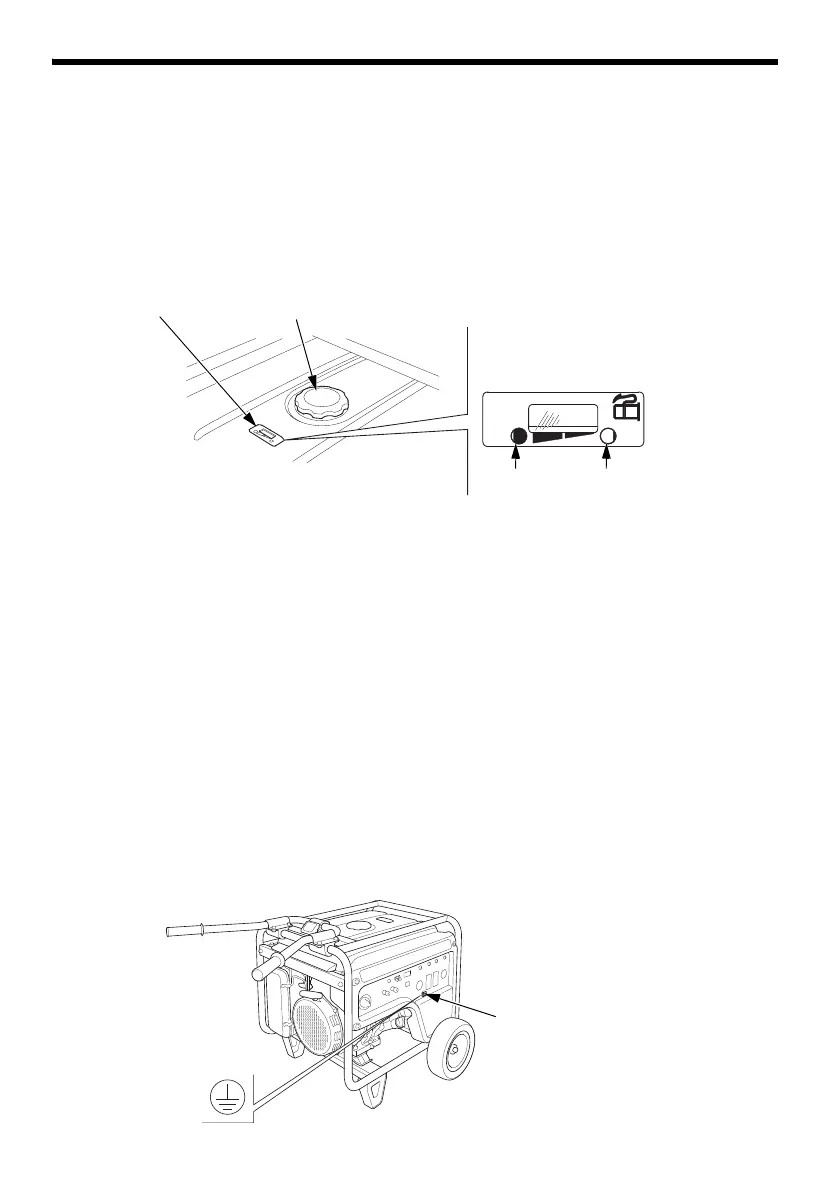

FUEL GAUGE FUEL TANK CAP
EMPTYFULL
