SERVICING YOUR GENERATOR
AIR CLEANER SERVICE

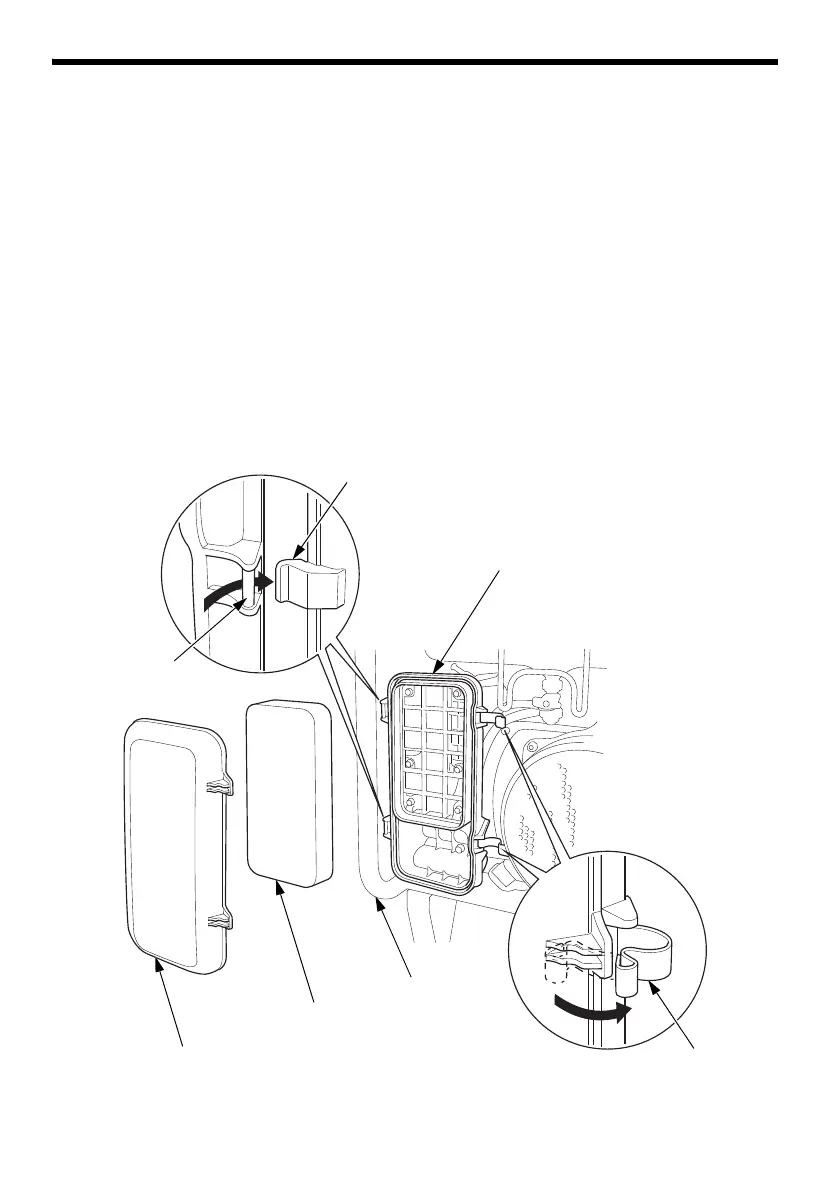

1. Unsnap the air cleaner cover clips and open the air cleaner cover.
2. Free the hooks from the setting pins on the air cleaner case and
remove the air cleaner cover to the right side of the frame pipe,
taking care not to damage the air cleaner cover.
3. Remove the air cleaner element from the air cleaner case.
4. Check the air cleaner element to be sure it is clean and in good
condition.
If the air cleaner element is dirty, clean it as described on page 53.
Replace the air cleaner element if it is damaged.
HOOK
SETTING PIN
AIR CLEANER CASE
FRAME PIPE
AIR CLEANER ELEMENT
AIR CLEANER COVER
CLIP
