OPERATION
AC Receptacle Selection

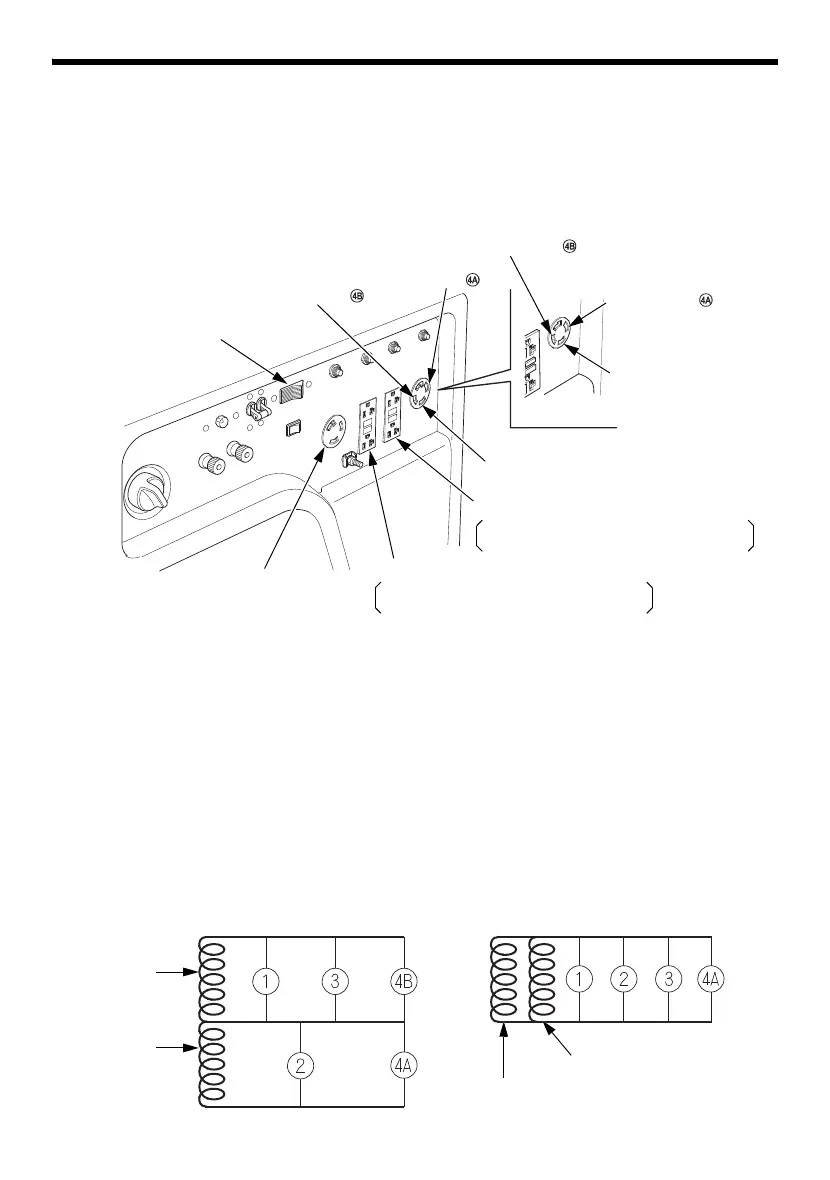

The control panel, shown below, has a voltage selector switch and
four receptacles. Receptacle 4, the 240-volt receptacle, has two
powered terminals, 4A and 4B.
Power Producing Circuits
This generator is equipped with two power generating circuits.
When the voltage selector switch is in the 120V/240V position, each of
the two power producing circuits supplies power to specific
receptacles.
When the voltage selector switch is in the 120V ONLY position, the
power producing circuits operate in parallel, sharing the total load
connected to terminal 4A and receptacles 1, 2, and 3.
TERMINAL
VOLTAGE SELECTOR
SWITCH
<EM4000SX>
RECEPTACLE ④
TERMINAL
TERMINAL
RECEPTACLE ①
TERMINAL
RECEPTACLE ④
RECEPTACLE ②
GFCI RECEPTACLE
(120 V 20 A DUPLEX RECEPTACLE)
RECEPTACLE ③
GFCI RECEPTACLE
(120 V 20 A DUPLEX RECEPTACLE)
POWER
CIRCUIT B
POWER
CIRCUIT A
120 V/240 V 120 V ONLY
POWER CIRCUIT B
POWER CIRCUIT A
