5-4
dummyheaddummyhead
FUEL SYSTEM

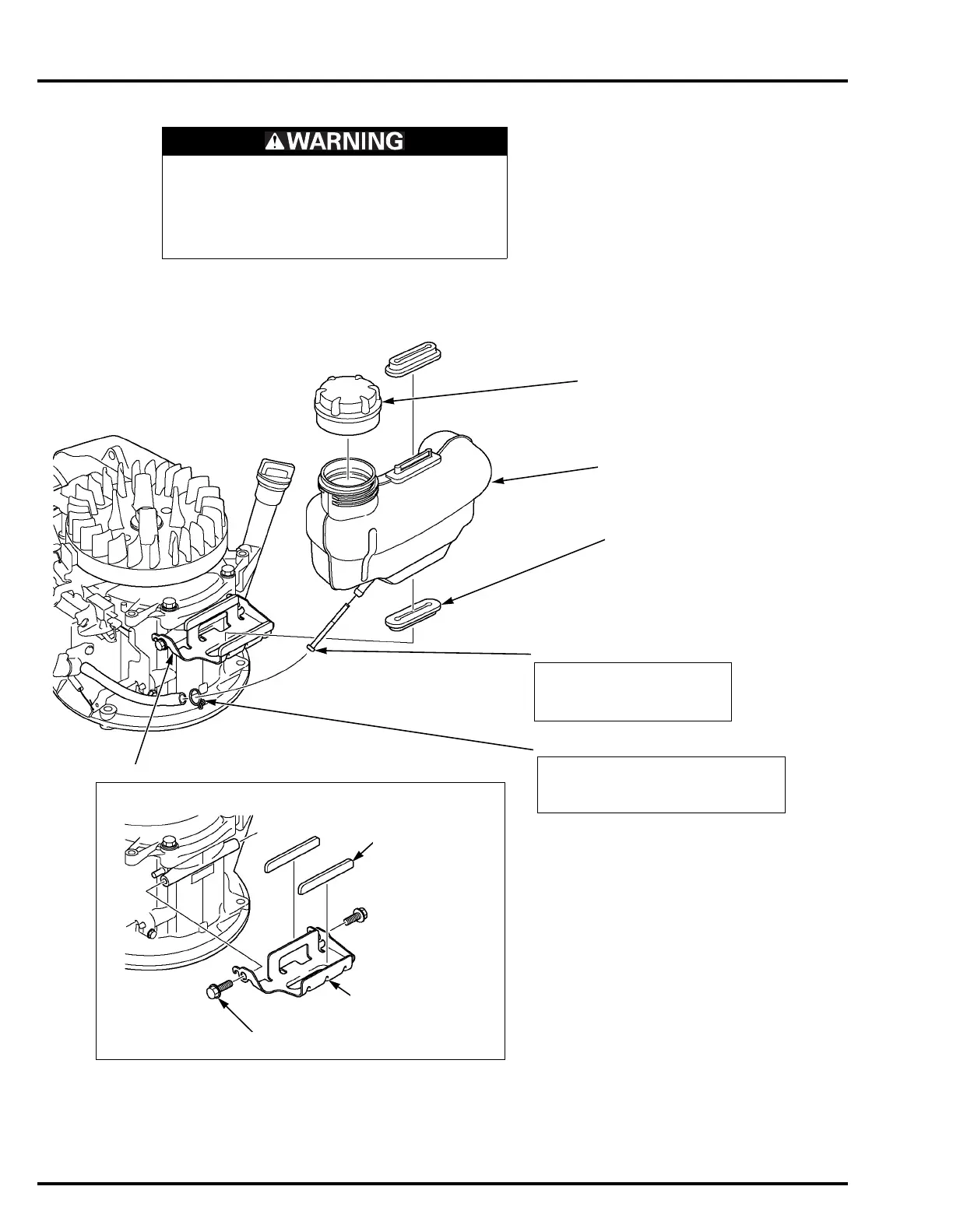

FUEL TANK REMOVAL/INSTALLATION
Before removal, drain the gasoline into an approved container.
Remove the fan cover (page 5-3).
Gasoline is highly flammable and explosive. You
can be burned or seriously injured when handling
fuel.
• Keep heat, sparks and flames away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
CHECK:
Before installing, check the fuel
strainer for clogs or damage.
TUBE CLIP B12
REMOVAL/INSTALLATION:
CT BOLT (6 x 14 mm) (2)
FUEL TANK STAY
TANK MOUNTING
RUBBER B (2)
FUEL TANK CAP
FUEL TANK
FUEL TANK STAY
TANK MOUNTING
RUBBER A (2)
FUEL STRAINER
INSTALLATION:
Be sure it is installed in position and
direction properly (page 2-5).
To Next Page
