CRANKSHAFT/PISTON/VALVES
CAMSHAFT/CYLINDER/PISTON/VALVE
INSPECTION

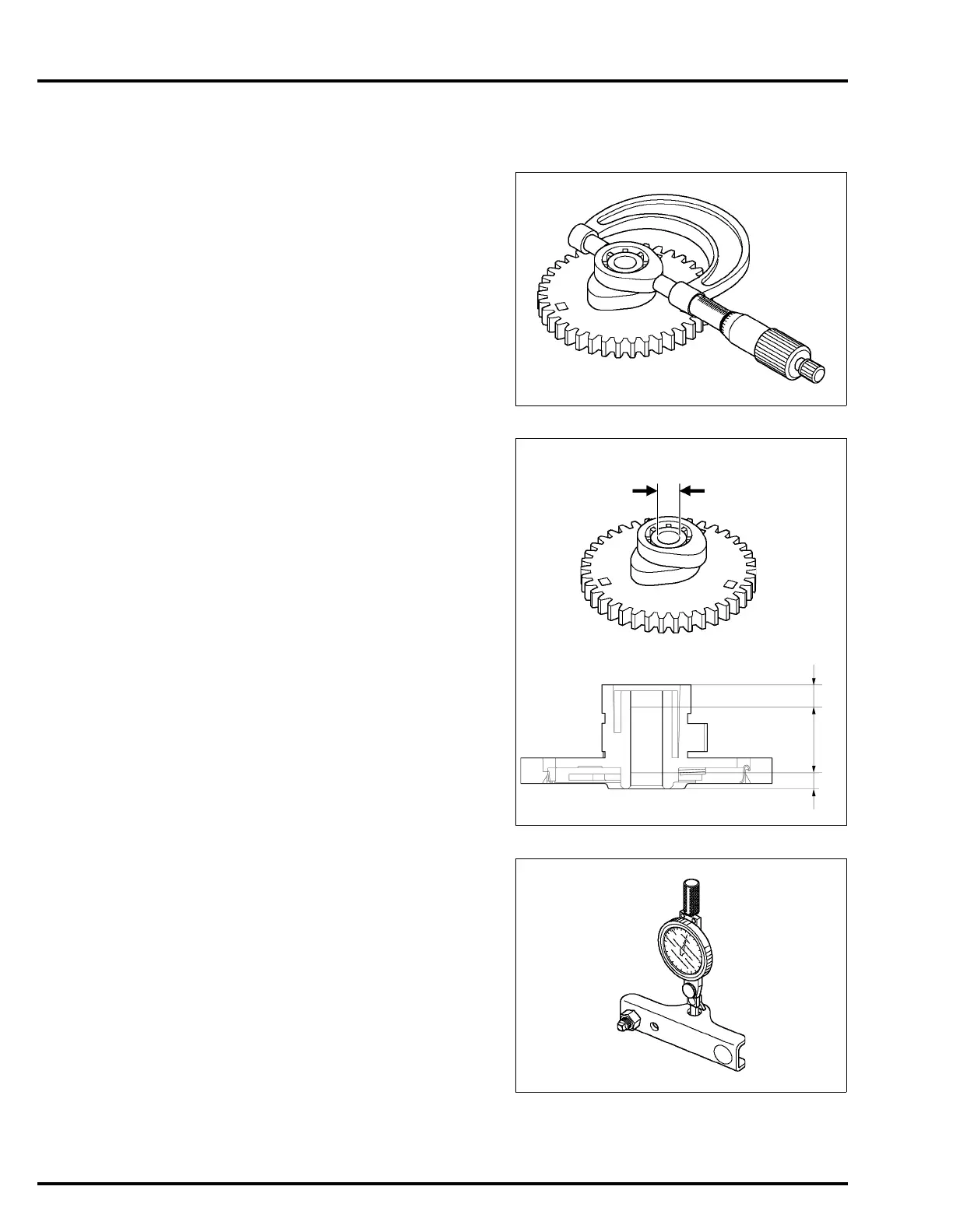

CAM HEIGHT
Measure the cam height.
If the measurement is less than the service limit,
replace the camshaft (page 10-7).
CAMSHAFT I.D.
Measure the camshaft I.D.
If the measurement is more than the service limit,
replace the camshaft (page 10-7).
ROCKER ARM I.D.
Measure the rocker arm I.D.
If the measurement is more than the service limit,
replace the rocker arm (page 10-4).
STANDARD: 33.779 – 34.179 mm
(1.3299 – 1.3456 in)
SERVICE LIMIT: 33.754 mm (1.3289 in)
STANDARD:
BOTH END [1]: 10.09 – 10.18 mm
(0.397 – 0.401 in)
CENTER [2]: 10.14 – 10.18 mm
(0.399 – 0.401 in)
SERVICE LIMIT: 10.20 mm (0.402 in)
6.7 - 7.3 mm
(0.26 - 0.29 in)
20 mm
(0.8 in)
[1]
[2]
[1]
STANDARD: 6.000 – 6.030 mm
(0.2362 – 0.2374 in)
SERVICE LIMIT: 6.043 mm (0.2379 in)
