10-2

dummyheaddummyhead

CRANKSHAFT/PISTON/VALVES

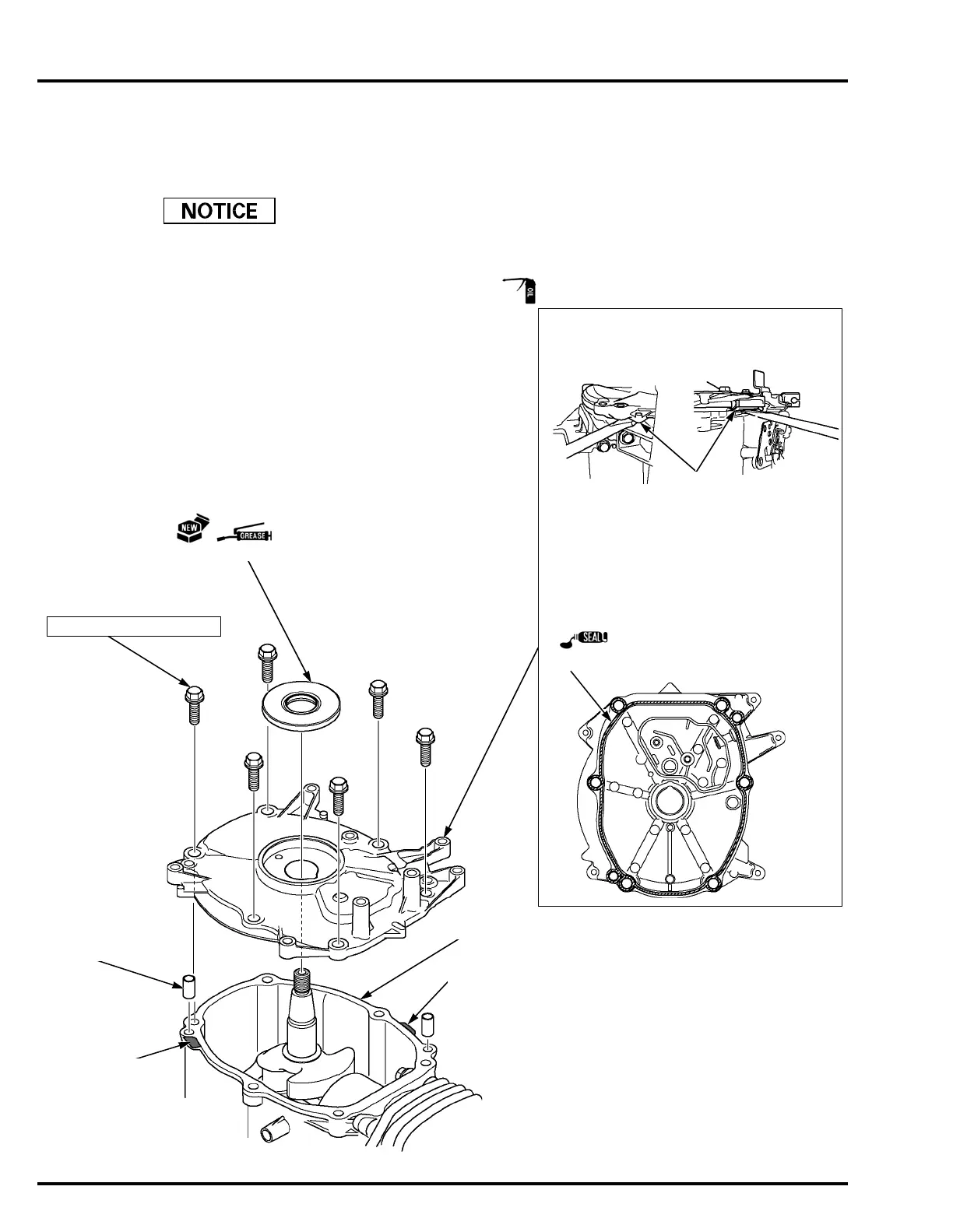

CRANKCASE COVER

REMOVAL/INSTALLATION

Set the piston at TDC on the compression stroke (page 3-5).

Remove the brake assembly (page 8-3)

• Assemble within 3 minutes after applying the liquid sealant.

• Wait for approximately 30 minutes after assembly and before filling oil and starting the engine.

CRANKCASE

CRANKCASE COVER

[1]

INSTALLATION:

Clean the mating surfaces of the crankcase and

the crankcase cover using a degreasing cleaning

agent or a clean shop towel.

Apply a bead liquid sealant (ThreeBond

#1216E

or LOCTITE

5900 or equivalent).

Be careful not to damage the lip of the oil seal

when installing the crankcase cover.

DOWEL PIN (2)

24 N·m (2.4 kgf·m, 18 lbf·ft)

BOLT (8 x 25 mm) (6)

Recess

Φ1.0 – 2.0 mm (0.04 – 0.08 in)

Recess

(Bearing area)

(Lips)

REMOVAL:

Insert a screw driver or equivalent tool into the

recesses [1] of the crankcase, and remove the

crankcase cover.

OIL SEAL (25.4 x 62 x 6 mm)
