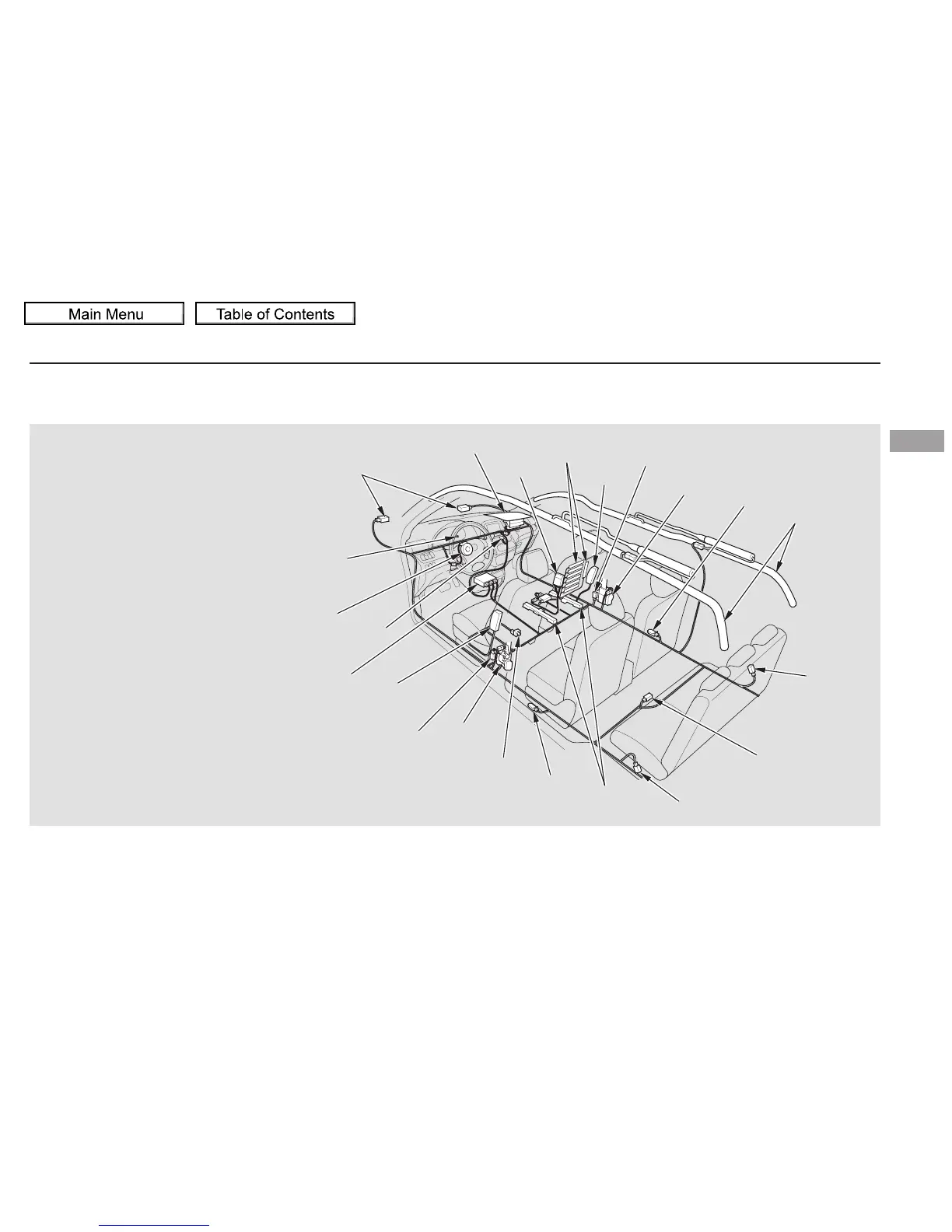

Airbag System Components
Additional Information About Your Airbags
Driver and Passenger Safety
25
(8) Front Passenger’s Weight Sensors
(9) Front Impact Sensors
(10) Passenger Airbag Off Indicator
(11) Side Impact Sensors
(1) Driver’s Front Airbag
(2) Passenger’s Front Airbag
(3) Control Unit
(4) Front Seat Belt Tensioners
(5) Side Airbags
(6) Side Curtain Airbags
(7) Driver’s Seat Position Sensor
(15) Supplemental Restraint System
(SRS) Indicator
(12) Occupant Position Detection
System (OPDS) Sensors
(13) Front Passenger’s Weight Sensors/
OPDS Sensors Control Unit
(14) Rear Safing Sensor
(9)
(2)
(15)
(5)
(11)
(4)
(11)
(6)
(11)
(14)
(11)
(1)
(3)
(11)
(4)
(7)
(11)
(8)
(5)
(12)
(13)
(10)
