××15 A 2, 10 A 2
30 A
30 A
40 A
main fuse
shift motor fuse
other fuses
PS (Electric Power
Steering) fuse
(1)
(1) blown fuse
(TRX500FPA only)
(TRX500FPA only)
244

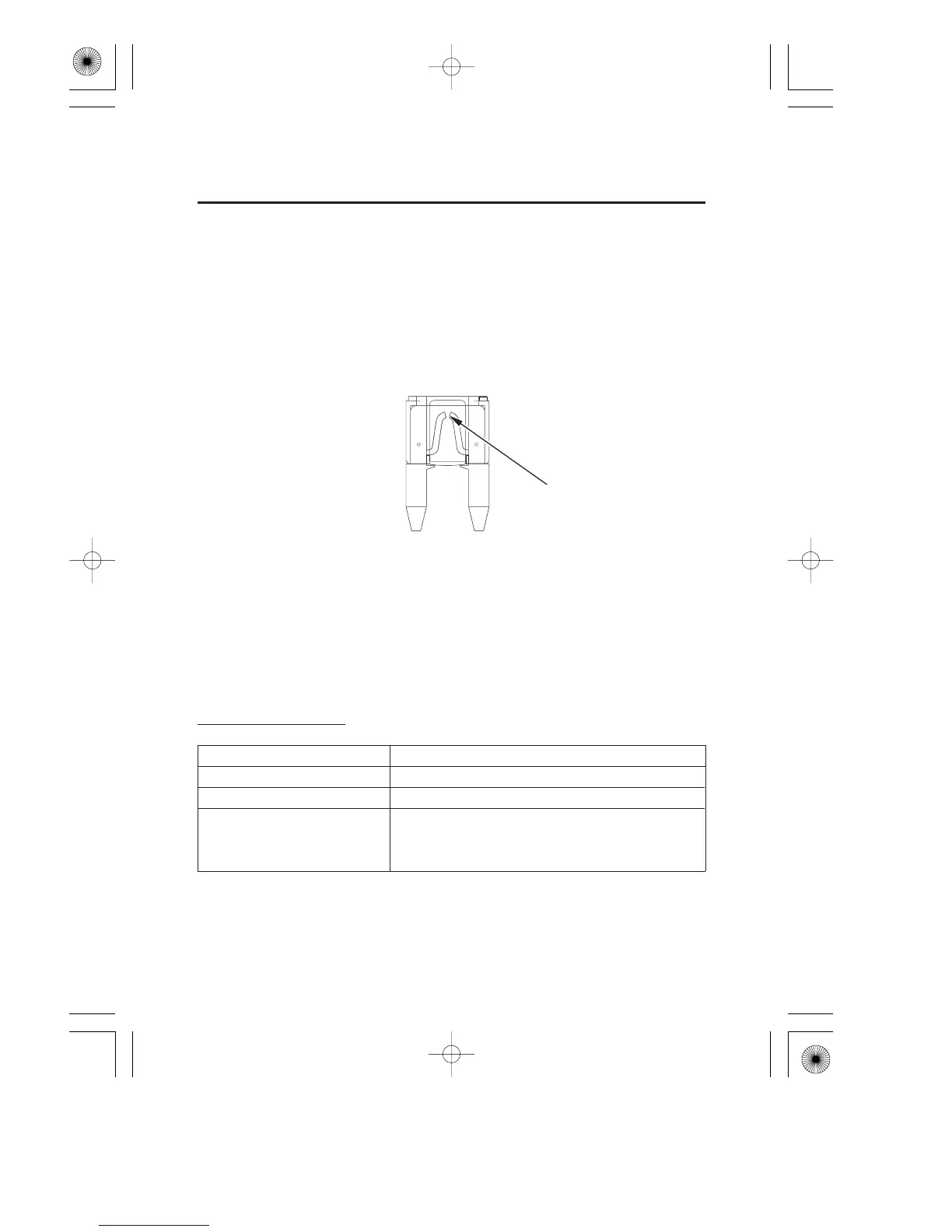

If a Fuse Blows
Taking Care of the Unexpected
All of the electrical circuits on your ATV have fuses to protect them
from damage caused by excess current flow (short circuit or overload).
If something electrical on your ATV stops working, the first thing you
should check for is a blown fuse ( ).
Check all the fuses before looking elsewhere for another possible cause
of the problem. Replace any blown fuses and check component
operation.
Recommended Fuses
The PS (Electric Power Steering) fuse is located near the battery.
The main fuse and the circuit fuses are located in the battery
compartment.
1
