Parts and Functions
Front Panel
Terminal Well
Place the terminal in this well to communicate with a host device, power the terminal, and
charge the installed battery pack. The base completely charges the main battery in a Dolphin
terminal in 4 hours. If the host device is a workstation that uses ActiveSync, synchronization
begins immediately.
Auxiliary Battery Well
See Auxiliary Battery Well on page 12-3.
DOCK LED
Turns solid green when the terminal is properly seated in the base.
AUX Battery LED
Indicates status of the battery charging in the auxiliary battery well; see Back Panel on page
12-3.
For information about charging a battery in the auxiliary battery well, see page 12-5.
This color means…
Orange The auxiliary battery is charging.
Green The auxiliary battery has completed charging and is ready for use.

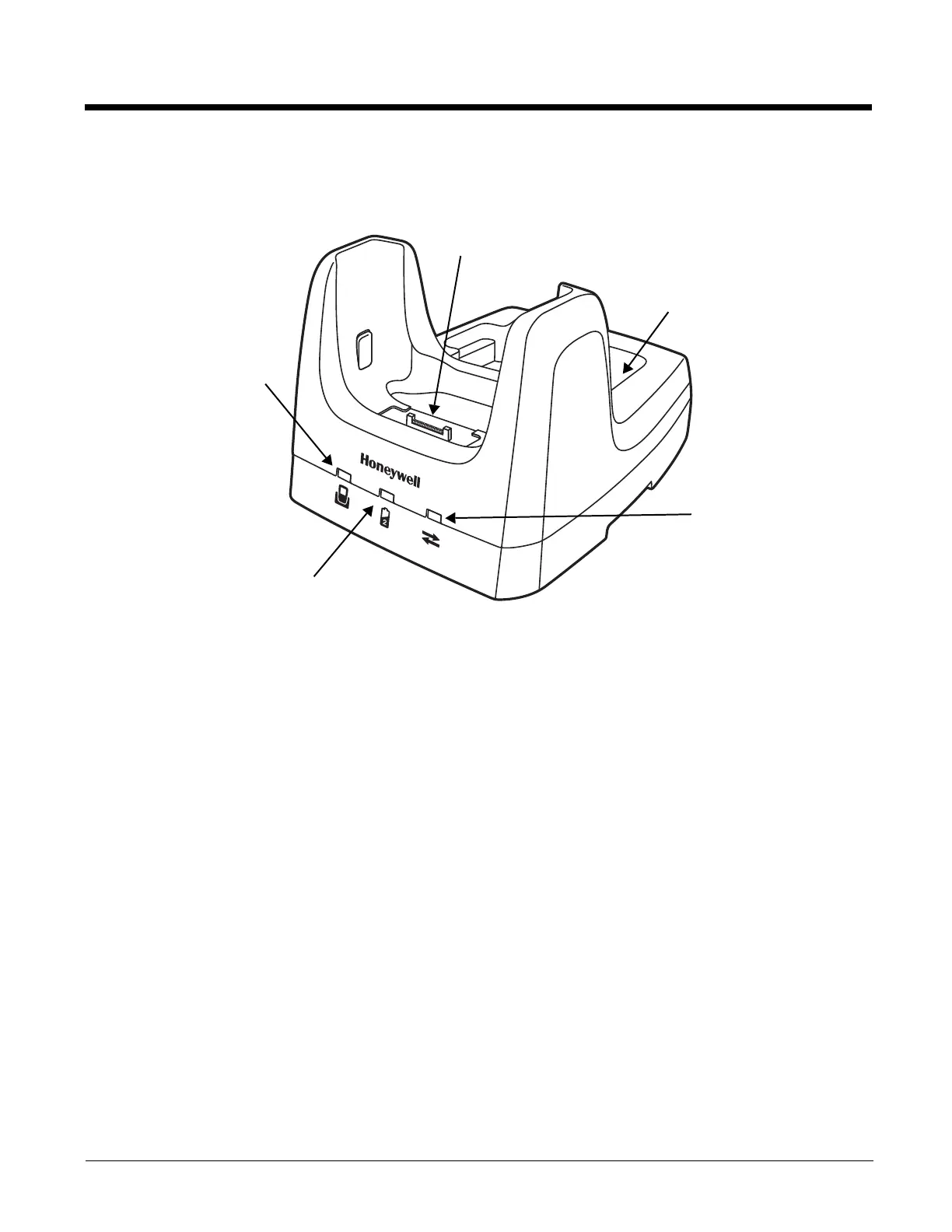

Terminal Well
DOCK LED
Auxiliary Battery Well
AUX
Battery
LED
COMM LED
