14 - 2

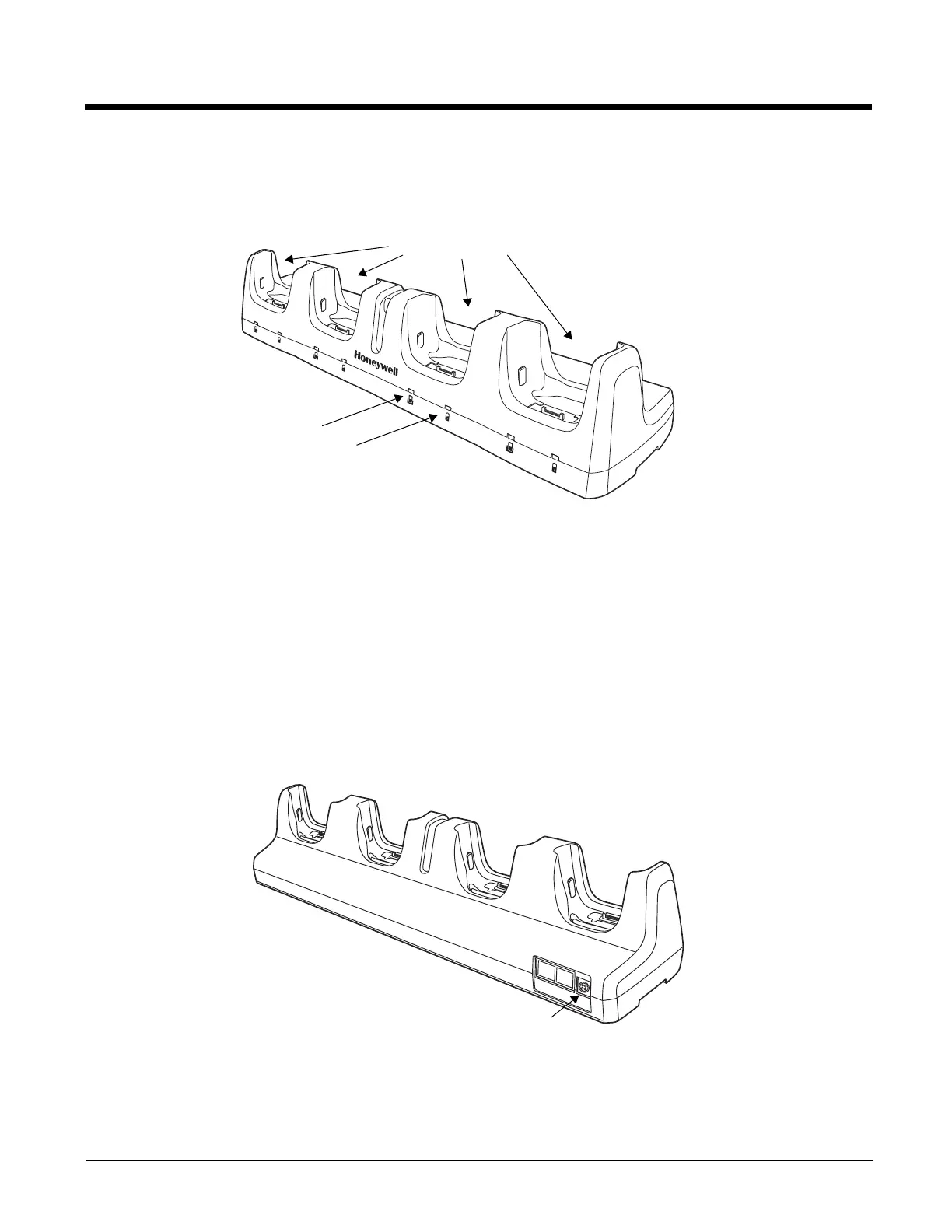

Parts and Functions
Front Panel
Terminal Wells
The base contains four terminal wells. Each well has its own dedicated Docking LED and
Charging LED indicator.
Dock LED
Each terminal well displays a Dock LED on the front that lights solid green when a terminal is
properly seated, which means that the terminal and the base are connected.
Charge LEDs
Each terminal well displays a Charge LED on the front that lights green to indicate charging.
For details, see Charging Terminals on page 14-4.
Back Panel
Power Supply Connector
This connector receives input from the power adapter. Plug the power connector cable from
the power adapter into this connector. There is no ON/OFF switch on the back panel of the
base. The power switch is on the power adapter.
Dock LED
Charge LED
Terminal Wells
