9 - 7
Setup Options
Tap
Menu
>
Options
.

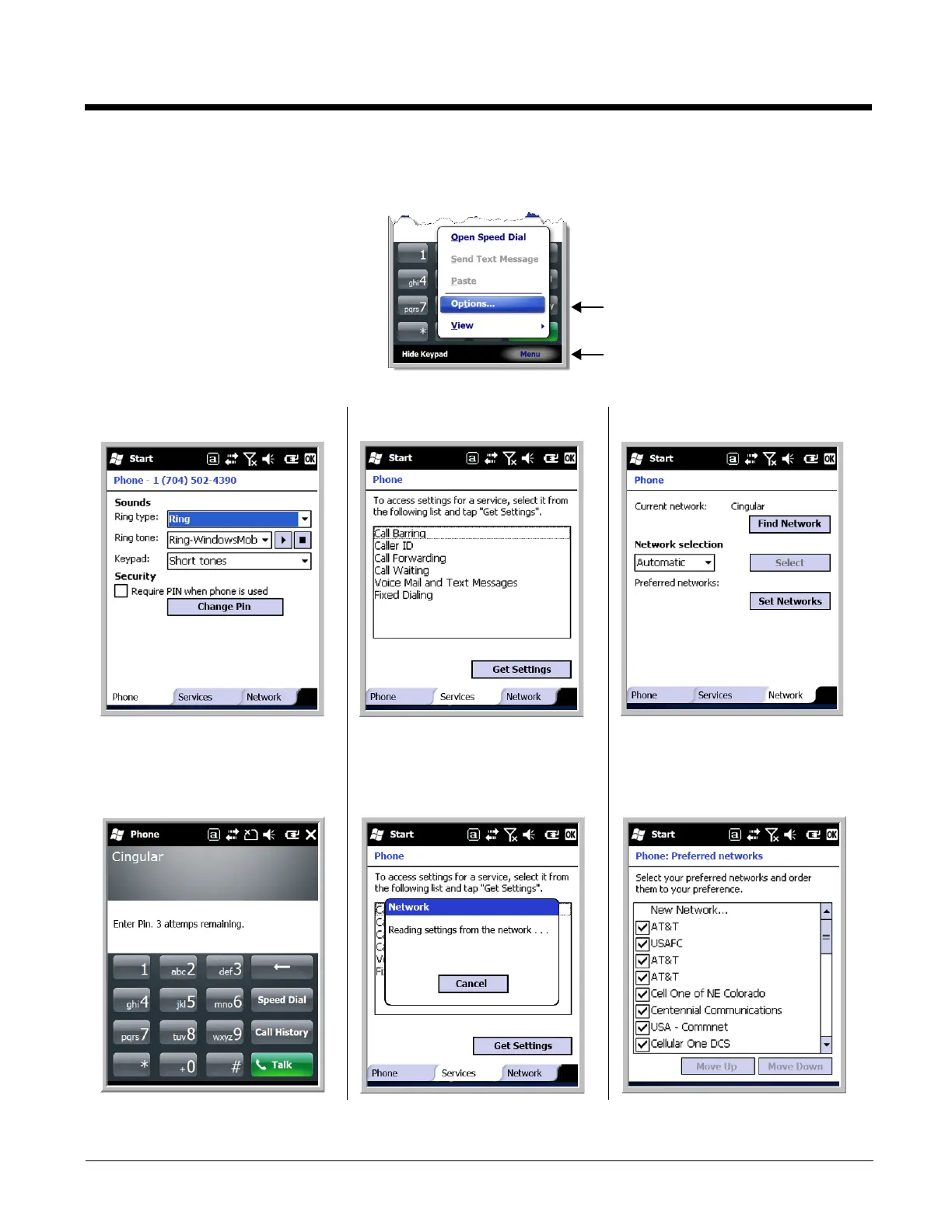

The Phone Settings tab windows appear.
Phone Tab
Services Tab
Network Tab
Establish or change a PIN on the
Phone tab
.
F
or each ser
vice
, the phone will
read settings from the network on
the SIM card and displa
y the
av
ailable options from the carrier
.
Y
ou can set networks on the Networ
k
tab
.
90
92
Table of Contents
Default Chapter
3
Table of Contents
3
Chapter 1 - Agency Information
9
Label Locations
9
LED Safety Statement
10
Infrared LED Safety Statement
10
UL and Cul Statement
10
Approvals by Country
10
R&TTE Compliance Statement-802.11A/B/G, Bluetooth, And/Or GSM
11
Dolphin RF Terminal-802.11A/B/G, Bluetooth, And/Or GSM
11
For European Community Users
12
Waste Electrical and Electronic Equipment Information
12
Chapter 2 - Getting Started
13
Out of the Box
13
Today Screen
15
Navigation Bar
16
Icons in the Navigation Bar
16
Command Bar
18
Pop-Up Menus
18
Selecting Programs
19
File Explorer
19
Search
20
Chapter 3 - Hardware Overview
21
Standard Configurations for the 9700
21
Peripherals for the 9700
22
Accessories for the 9700
23
Front Panel: 9700
24
Front Panel Features for the 9700
25
Back Panel: 9700
26
Back Panel Features for the 9700
27
Side Panels: 9700
28
Left Side
28
Right Side
28
Installing a Memory Card
29
Installing a SIM Card
29
Bottom Panel: 9700
30
I/O Connector
30
Using the Touch Panel
31
Installing a Screen Protector
31
Healthcare Housing
32
Batteries
33
Main Battery Pack
33
Internal Backup Battery
34
Managing Battery Power
34
Checking Battery Power
35
Resetting the Terminal
36
Soft Reset (Warm Boot)
36
Hard Reset (Cold Boot)
36
Suspend Mode
36
Chapter 4 - Using the Scan Image Engine
37
Overview
37
Angled Imaging
37
Image Engine Specifications
37
Laser Specifications
38
Supported Bar Code Symbologies
38
Decoding
39
To Decode a Bar Code
39
Aiming Options
40
Capturing Images
41
Taking an Image
41
Uploading Images
42
Chapter 5 - Using the Color Camera
43
Overview
43
Taking a Picture Using the Camera Demo Tool
43
Options
44
Taking a Picture Using the Windows Mobile 6.5 Camera Tool
44
Menu
45
Options
45
Recording Video
45
Chapter 6 - Using the Keyboards
47
Available Keyboards
47
Keyboard Combinations
47
Common Buttons
47
Using the Function Keys
48
Using the Modifier Keys
49
Using the Navigation Keys
49
31-Key Numeric Keyboard
50
31-Key Keyboard Combinations
50
45-Key QWERTY Keyboard
52
45-Key Keyboard Combinations
52
Chapter 7 - System Settings
55
Overview
55
Clock & Alarms
56
Personal Menu
57
Buttons
58
Input
59
System Menu
61
About
62
Backlight
63
Certificates
64
Encryption
64
Error Reporting
64
External GPS
65
Managed Programs
65
Memory
66
Ril
67
Power
68
Regional Settings
68
Remove Programs
68
Task Manager
71
Chapter 8 - Communication
73
Connections Menu
73
Using the Irda Port
74
Irda Port Location
74
Sending Data
74
Receiving Data
75
Connections Manager
76
To Access the Connections Manager
76
Task Tab
76
Advanced Tab
77
Dolphin Wireless Manager
77
Dolphin Wireless Manager Window
78
Enabling the Radios
78
Accessing Radio Configuration Utilities
79
Activesync Communication
80
Communicating with the Dolphin Terminal
81
Installing Additional Software
82
Adding Programs to the Terminal Using Activesync
82
Adding Programs Directly from the Internet
83
9700 COM Port Assignment Table
83
Chapter 9 - Working with GSM/HSDPA/UMTS/GPRS/EDGE
85
Overview
85
Penta Band Antenna
85
SIM Card Installation
86
Installing a SIM Card
87
Enabling the GSM Radio
88
Voice Communication
88
Audio Modes
88
Volume Control
89
Accessing the Dialer Window
89
Dialing
89
Sending Calls
90
Ending Calls
90
Keyboard Combinations for Calls
90
Accessing Voice Mail
90
View Options
90
Setup Options
91
Data Communication
92
Establishing Data Communication
92
Ending the Data Connection
94
Manual Network Selection
95
Chapter 10 - Working with the Bluetooth Radio
97
Enabling the Bluetooth Radio
97
Connecting to Other Bluetooth Devices
98
Pairing and Trusted Devices
100
Types of Devices and Services
101
Connecting to Bluetooth Printers
102
Connecting to Bluetooth Headsets
102
Transferring Files
103
Making the Terminal Discoverable
104
Selecting COM Ports
104
Chapter 11 - Working with GPS
105
Overview
105
Assisted GPS Support
105
Powering the GPS Module
105
Communication Ports
105
Selecting the Port
105
Com7
106
GPS Intermediate Driver
106
GPS Demo
106
Chapter 12 - Dolphin 9700 Homebase Device
107
Overview
107
Parts and Functions
108
Back Panel
109
Power
110
Serial Connector
110
Charging the Main Battery
111
To Power a Terminal and Charge Its Main Battery
111
Charging a Spare Battery in the Auxiliary Battery Well
111
Communication
112
Connecting the Communication Cables
112
Establishing Communication
112
Verifying Data Transfer
113
RS232 Communications Cables
113
RS232 Pin Configuration
114
Mounting
114
Desk Mounting
115
Chapter 13 - Dolphin 9700 Mobile Base Device
117
Overview
117
Front Panel
118
Bottom Panel
119
Powering the Dolphin Terminal
120
Charging the Dolphin Terminal
120
Mounting
121
Power
122
Establishing Communication
123
Connecting the Communication Cables
123
Establishing Activesync Communication
123
Chapter 14 - Dolphin 9700 Chargebase Device
125
Overview
125
Parts and Functions
126
Supplying Power
127
Inserting and Removing Terminals
127
Charging Terminals
128
Mounting
128
Chapter 15 - Dolphin 9700 Quadcharger Device
131
Overview
131
Parts and Functions
132
Supplying Power
133
Inserting and Removing Battery Packs
133
Charging Batteries
134
Mounting
134
Desk Mounting
134
Troubleshooting
135
Chapter 16 - Customer Support
137
Product Service and Repair
137
Online Product Service and Repair Assistance
137
Technical Assistance
138
Online Technical Assistance
138
Limited Warranty
139
How to Extend Your Warranty
140
