13 - 2

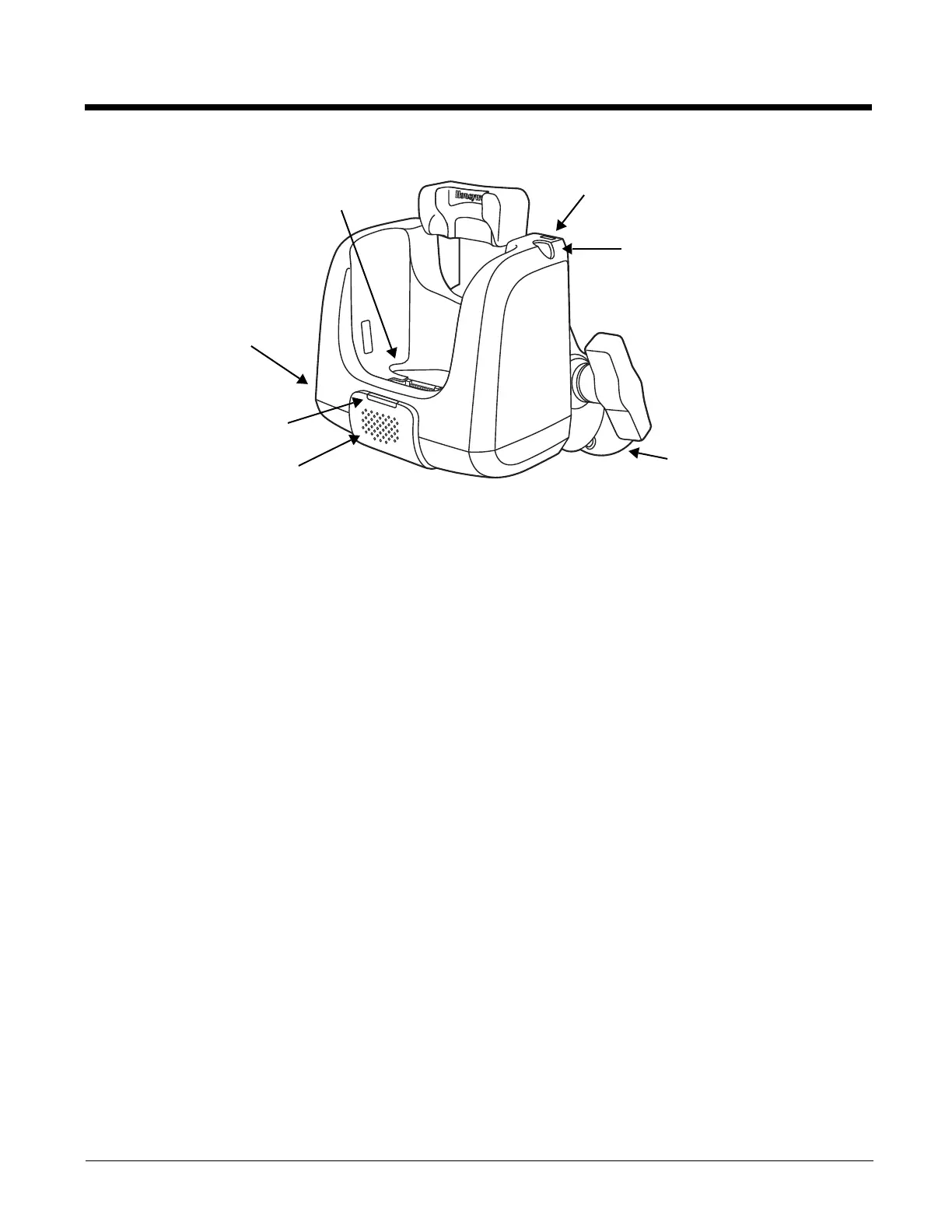

Front Panel

Fastener for the Stylus Tether

Stylus tethers can be purchased separately to help prevent accidental loss when the stylus is

not stored in the stylus slot. A stylus tether is a coiled, elastic cord that tethers the stylus to

the Mobile Base. Secure one end of the cord to the top of the base and the other end to the

stylus.

Mounting Bracket

Used to mount the base to a fixed location.

Speaker

Amplifies the Dolphin’s audio signals.

Status LED

Illuminates solid green when the Dolphin terminal is properly seated in the terminal well and

indicates data transfer between the host device and the Dolphin terminal

Stylus Slot

The stylus is used to operate the touch panel on the Dolphin terminal. The top panel of the

mobile base features a storage slot to hold the stylus when not in use. The stylus features a

special tip for added accuracy and ease of use.

Terminal Well

Place the terminal in this well. Once seated, the terminal can communicate with a host device

and its main battery pack begins charging.

Volume Control Dial

The speaker volume is adjusted via the dial located on the side of the base.

Color Indicates that…

Green

The terminal is properly docked.

Orange

The terminal is docked and communicating.
