15 - 4
Recommendations for Storing Batteries
To maintain top performance from batteries, follow these storage guidelines:
• Avoid storing batteries outside of the specified temperature range of -4 to 104° F (-20 to 40°C) or in
extremely high humidity.
• For prolonged storage, do not keep batteries stored in a charger that is connected to a power source.
Charging Batteries
For best results, battery packs should be at room temperature before recharging them; temperature has
a marked effect on charging. The recommended temperature range is 50° to 95° F (10° to 35° C).
1. Set up the charger.
2. Power the charger
3. Insert batteries into the appropriate slots. The Status LED for each slot turns orange to indicate that
the battery has begun a charge cycle.
4. When the Status LED turns green, the battery in the slot has completed charging.
Mounting
The charger should be on a dry, stable surface and can be mounted on a flat, horizontal surface such as
a desktop or workbench.
When choosing a location, always bear in mind that
• the mounting location must allow users easy access to power switch and power connector.
• the charger should be oriented so that users can easily insert and remove battery packs and see the
LEDs.
Installation Hardware
The DIN rail slot on the bottom panel enables secure mounting to a horizontal surface.
Screw: 3/16 in. dia x 5/8 in. long pan head screw
Washer: 1/2 in. OD x 7/32 in. ID x 3/64 in. thick
Nut: 3/16 in. dia

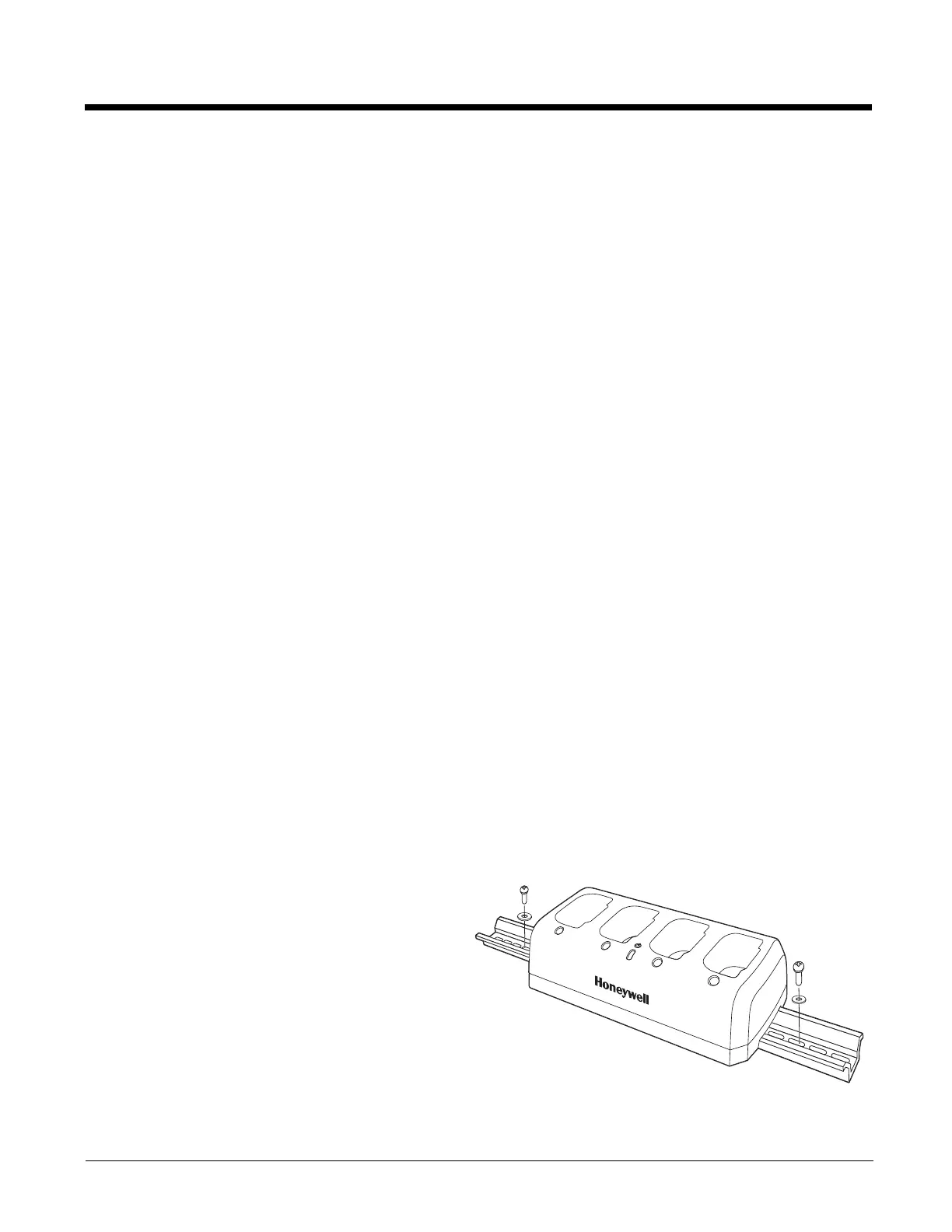

Desk Mounting
1. Slide the DIN rail into the DIN rail slot
(7.5 X 35 mm) on the bottom of the Quad-
Charger.
2. Then, using the appropriate nuts and bolts
listed above, secure the DIN rail to the
desktop.
To Next Page
