DOCUMENT: FC1: MARKINGS AND DEVICE SEALING
PAGE: 2 OF 12
1 FC1 front markings
The FC1 device is available in two housing sizes, i.e. with a housing width of
1/3 for up to four process boards or a housing width of 1/2 for up to seven
process boards. The front plate for both housing widths is available in two
designs (Elster or Honeywell).
1.1 Front markings for an FC1 with 1/3 housing width,
Elster front design

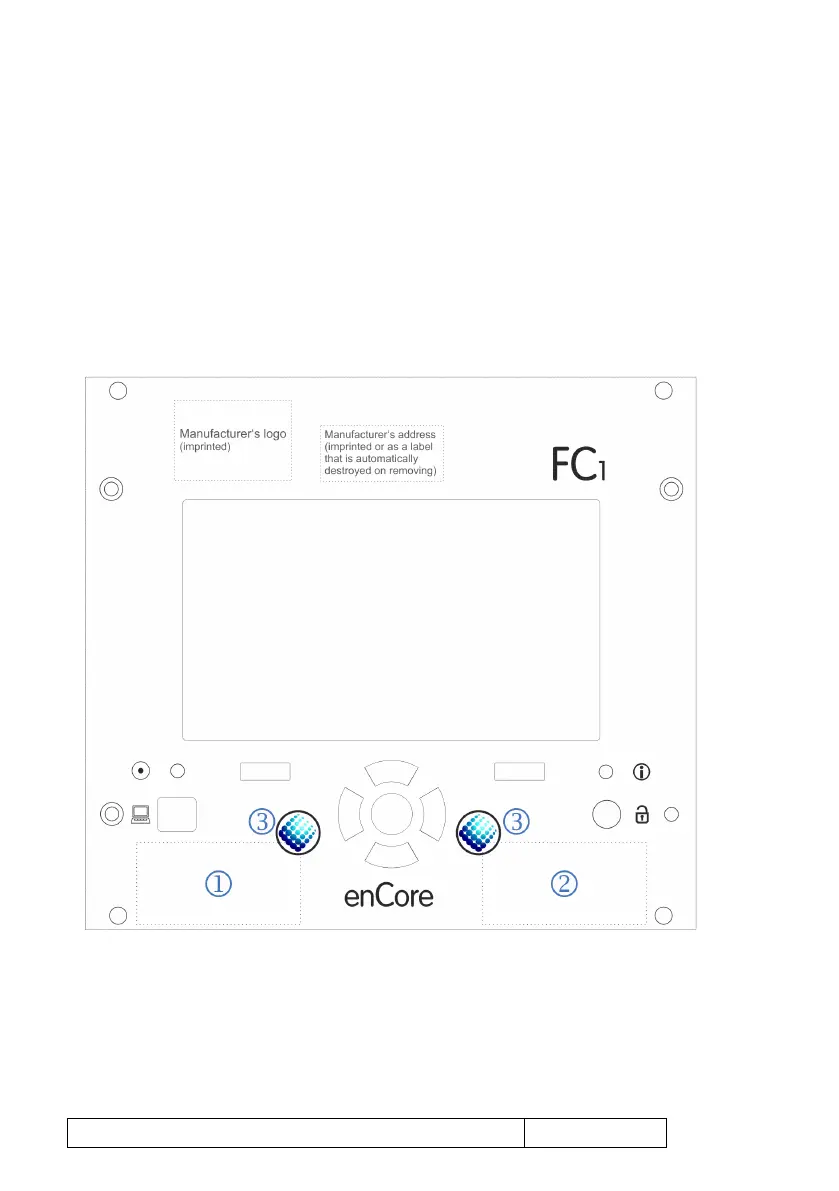

Figure 1: FC1 front view with position of type plates
(1/3 housing width, Elster design)
Location of type plate part 1
Location of type plate part 2
Securing marks (adhesive labels), example
