DOCUMENT: FC1: MARKINGS AND DEVICE SEALING
PAGE: 4 OF 12
1.3 Type plates
For the design of the type plates there are two alternatives differing slightly
in label size and arrangement. Figure 3 shows the first and Figure 4 the
second alternative. In the second alternative, a 2D code can be applied on
the left part of the type plate optionally.

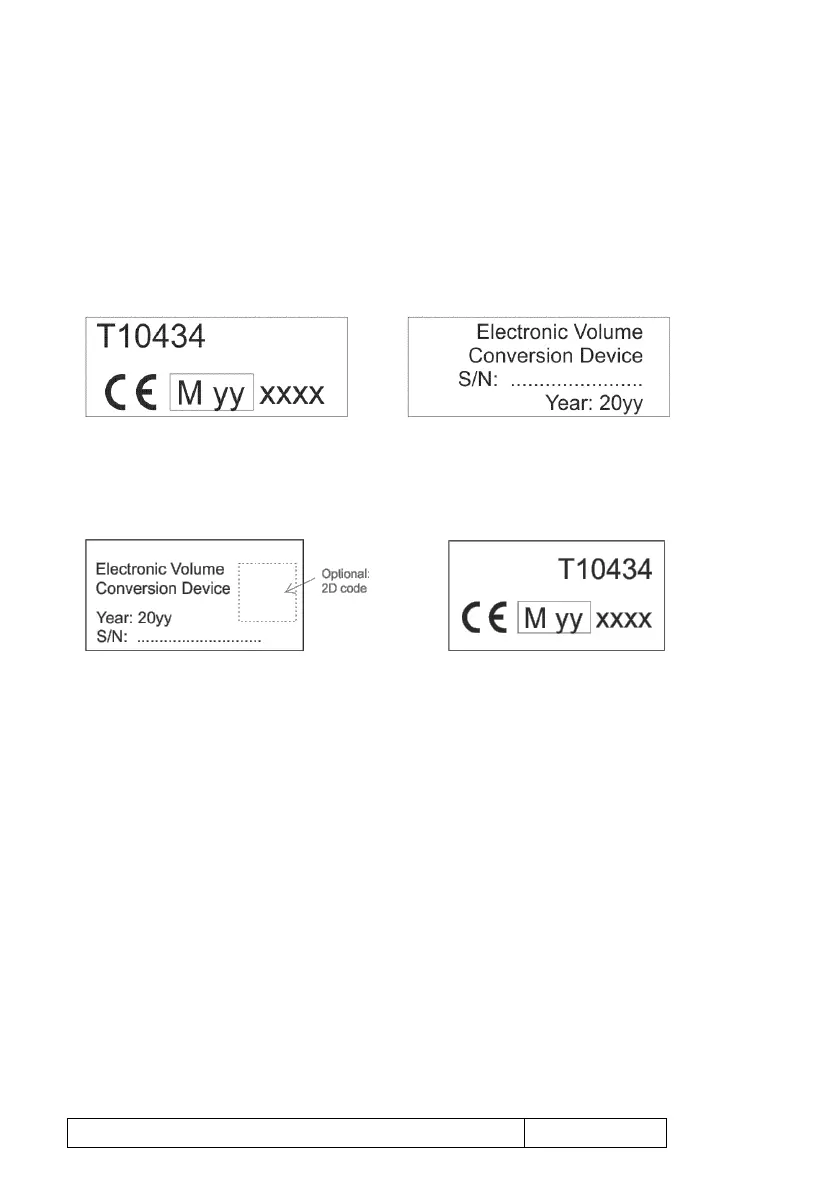

Figure 3: Type plate parts 1&2 (alternative 1)
Figure 4: Type plate parts 1&2 (alternative 2)
