FUSION DVR Digital Recording and Transmission System
7–2
7.2 SETTING UP A PTZ CAMERA, CONTINUED
7. Once enabled, the Protocol can be edited. Select the appropriate Protocol.
NOTE: Protocols are a set of instructions written by the manufacture of the PTZ
cameras that allow software programs such as this DVR to control their
functions. The majority of the major PTZ manufacturer protocols are included
in this software.
8. Press Apply and exit Setup.
9. From the Main Display Screen select the PTZ button (See Section 4.3 – Display
Screen.) The PTZ Control options open.
10. Select the PTZ camera to control by clicking on its video on the main display
screen. The camera number will appear inside the PTZ controls.
11. Using the PTZ controls, you should now be able to move the PTZ around.

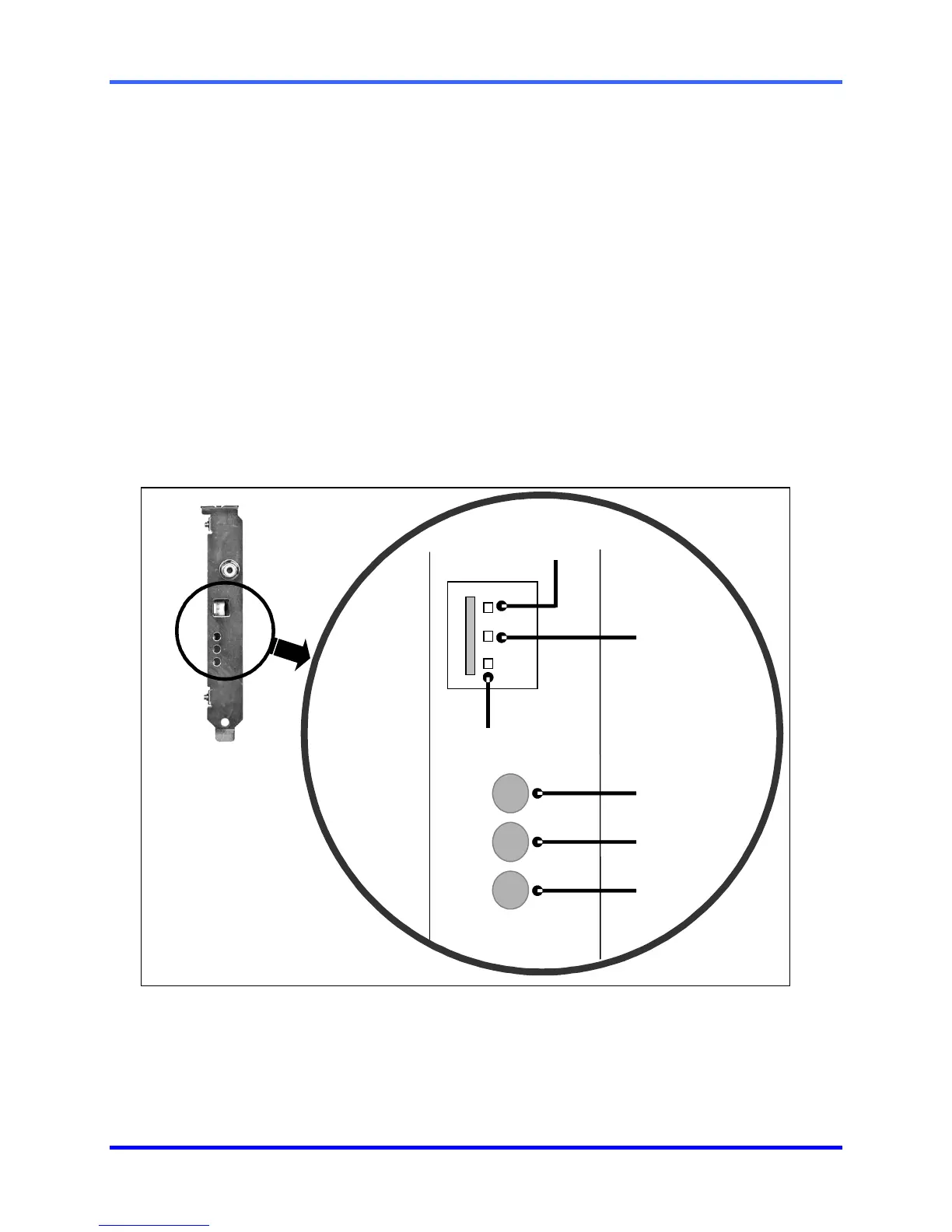

Operation
LED
RS485
Signal Line (+)
Signal Line (-)
Ground
RX LED
TX LED
