FUSION DVR Digital Recording and Transmission System
7–14

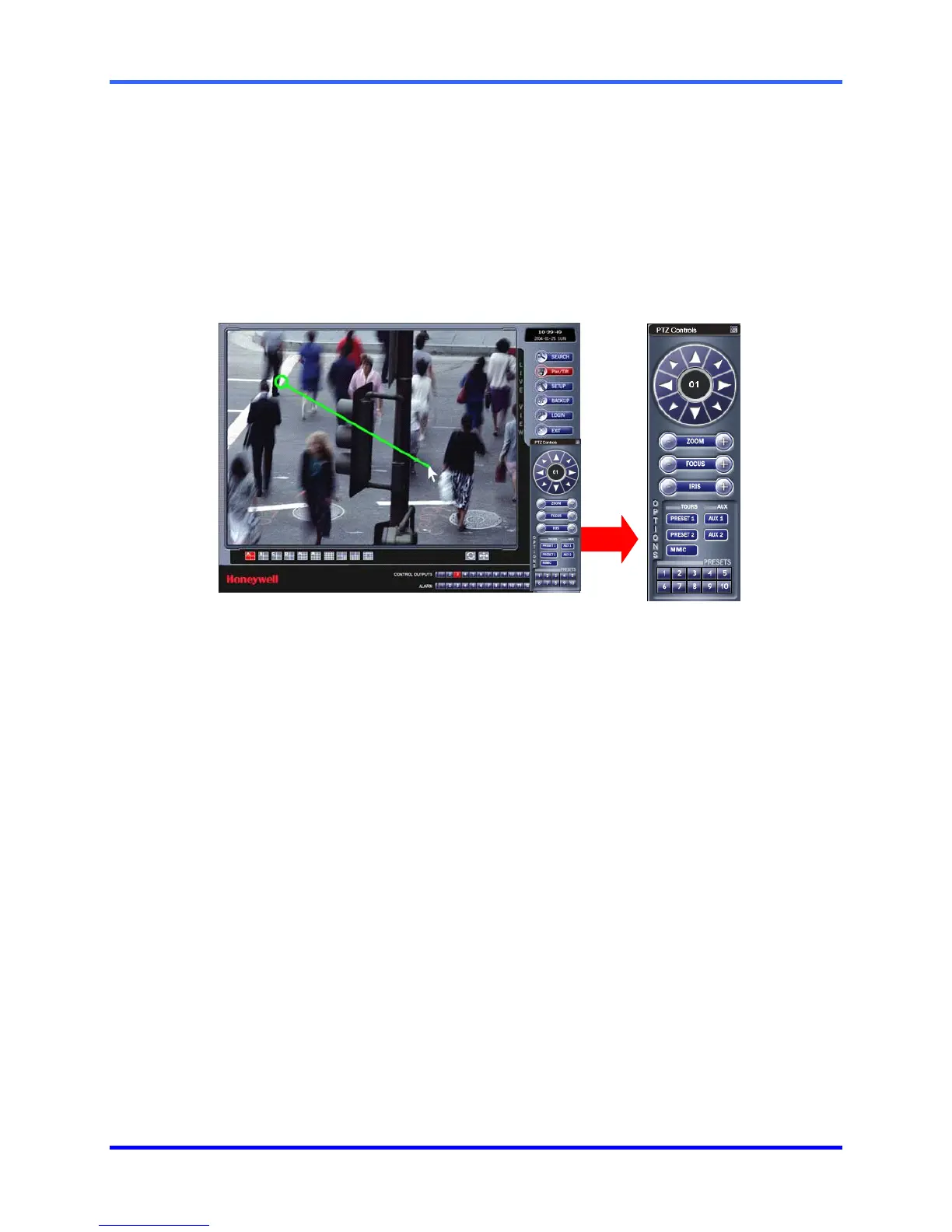

7.9 USING THE ON-SCREEN CONTROLLER AND COMPASS
The Fusion DVRs provide control for the PAN/TILT camera in two different ways.
1. Using the Graphical PTZ controller that appears when the PTZ button is
pressed on the main screen.
2. Clicking on the video itself. This second option is a much more powerful way to
control the Camera. (NOTE: The PTZ button on the main screen must also be
selected to use this option.)
Control the PTZ by dragging the mouse on the screen in the desired direction. A green
line will appear to show the direction the PTZ will move. The shorter the line the shorter
the PTZ will move. The longer the line the longer the PTZ will travel in the specified
direction.
