PAN / TILT / ZOOM
7–7
7.4 CREATING AND VIEWING PRESET POSITIONS, CONTINUED
6. A window will open for entering a Preset Name. Enter a
name and press OK.
7.4.2 VIEWING A PRESET
1. From the Main Display Screen, click on the PTZ camera to select it.
2. Using the keyboard, press the number keys corresponding with the Preset
positions. The camera will move to the saved Preset.
3. Presets can also be activated using the on-screen PTZ controller.
Open the controller and press a preset button.

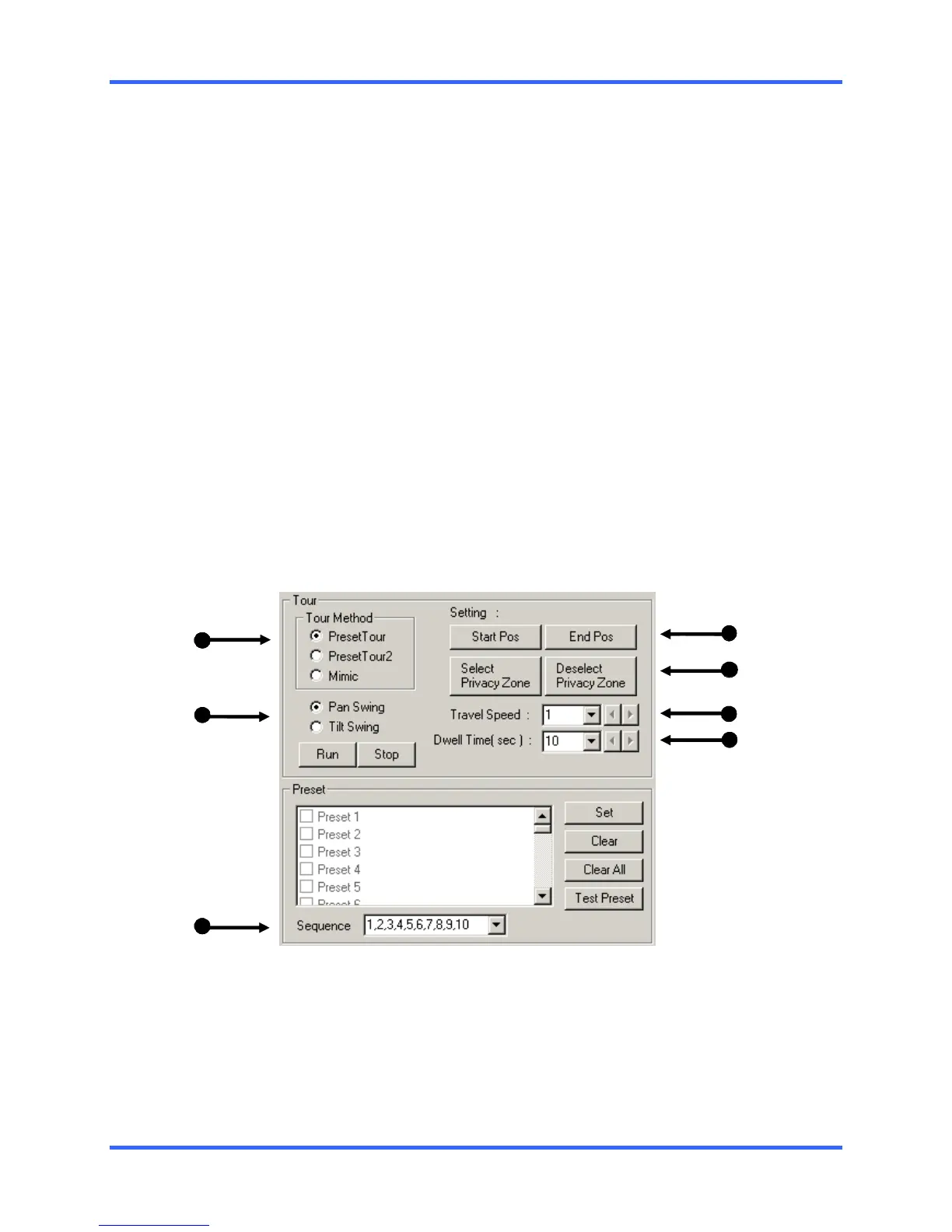

7.5 UNDERSTANDING TOURS
The following section explains the PTZ Tour options. Since there are many PTZ
manufactures with several different ways of operating Tours, we have tried to
accommodate the most popular protocols. Not every Tour Method will be available for
each PTZ camera.
4
2
3
1
2
3
2
5
6
7
To Next Page
