58 PD45 User Guide
Replace the Platen Roller
If the printer platen roller gets damaged or wears out, it may need to be replaced.
1. Turn the printer off and disconnect the printer from power.
2. Open the media cover.
3. Remove the media.
4. Turn the printhead lift lever counterclockwise to raise the printhead.

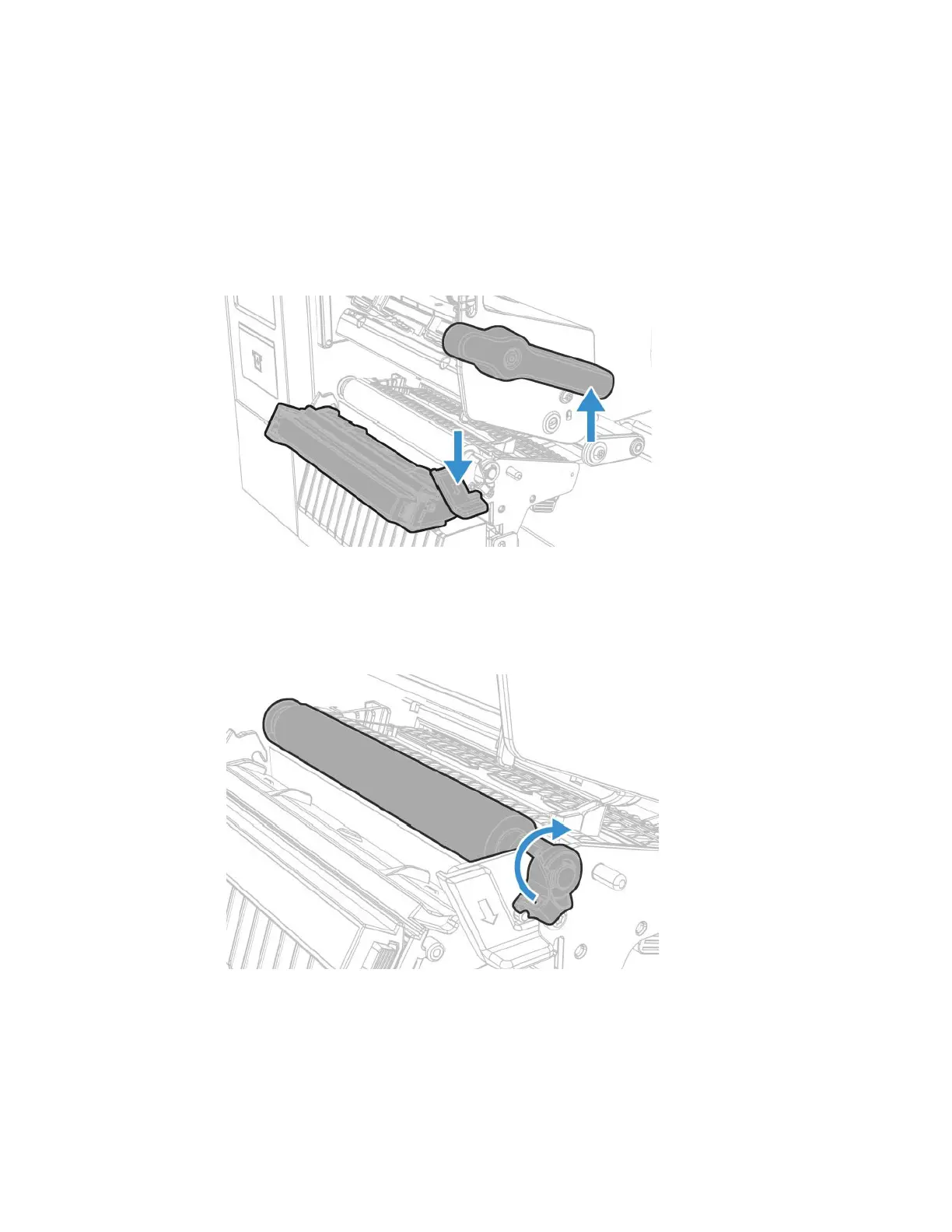

5. Pull the front sensor knob toward the outside.
6. Pull down the front sensor toward the front side.
7. Rotate the platen roller latch clockwise to detach it from the printer and pull
the platen roller away from the printer.
