Menu
Model
1630A/D/G
Rear
Panel
Port
:
Selects
control
signal
to
be
supplied
through
the
rear
panel
BNC
output
PORT
to
an
external
device,
as
follows
:
Beeper
:
[Pulse
on
State
Tracepoint]
-
analyzer
outputs
15-nsec
TTL
positive
pulse
when
it
finds
state
tracepoint
.
[High
til
State
Tracepoint]
-
after
run
start,
analyzer
outputs
TTL
high
until
it
finds
state
tracepoint
.
Then
it
switches
TTL
low
.
[Low
til
State
Tracepoint]
-
after
run
start,
analyzer
outputs
TTL
low
until
it
finds
state
tracepoint
.
Then
it
switches
TTL
high
.
[High
on
Last
Sequence]
-analyzer
outputs
TTL
high
when
it
is
searching
for
the
last
term
in
a
trigger
sequence
.
[High
on
Timing
Pattern]
-
analyzer
outputs
TTL
high
as
long
as
the
timing
trigger
pattern
occurs
for
longer
than
the
specified
valid
pattern
duration
.
[Constant
High]
-
analyzer
outputs
TTL
high
.
when
[On],
the
analyzer
will
beep
whenever
it
completes
a
measurement,
and
whenever
itflashes
an
error
or
warning
message
on
screen
.
When
[Off],
the
analyzer
will
not
beep
at
any
time
.
1630G
System
[Peripherals]
Specification
Menu
System
Specification
------------------------------------------
lock
.
Cset
:
HP-IL
:
External
Controller
HP-
IB
:
16BOG
is
controller
Logic
analyzer
HP-IB
address
:
00
Printer
HP
-IB
address
:
Disc
HP-11)
address
:
02
No
Disc
Print
non-waveform
me
-Rear
panel
port
:
Beeper
:
Save
configuration
in
internal
storage
:

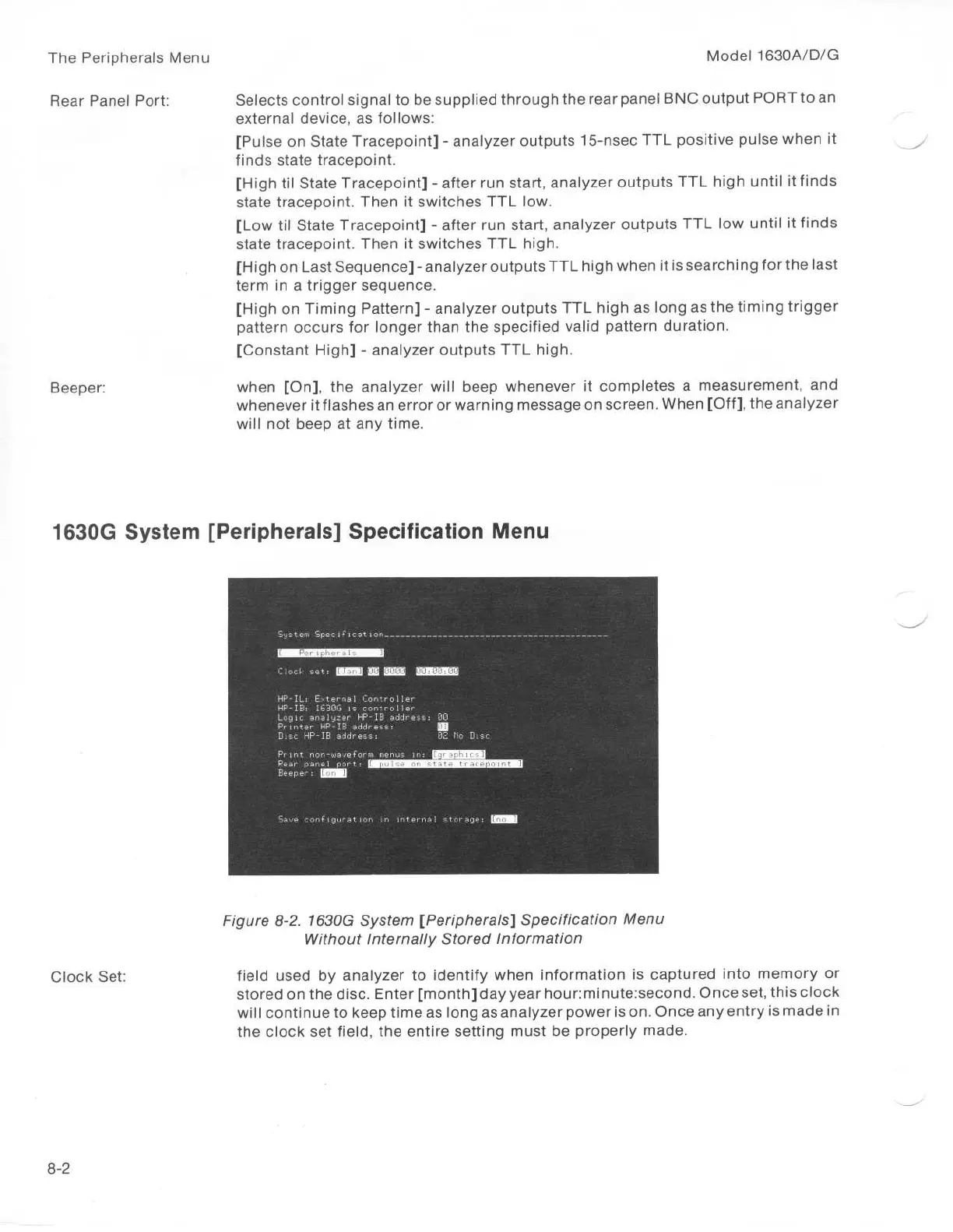

Figure
8-2
.
1630G
System
[Peripherals]
Specification
Menu
Without
Internally
Stored
Information
Clock
Set
:
field
used
by
analyzer
to
identify
when
information
is
captured
into
memory
or
stored
on
the
disc
.
Enter
[month]
day
year
hou
r
:
mi
nute
:second
.
Once
set,
this
clock
will
continue
to
keep
time
as
long
as
analyzer
power
is
on
.
Once
any
entry
is
made
in
the
clock
set
field,
the
entire
setting
mustbe
properly
made
.
103
105
