Model
1630A/D/G


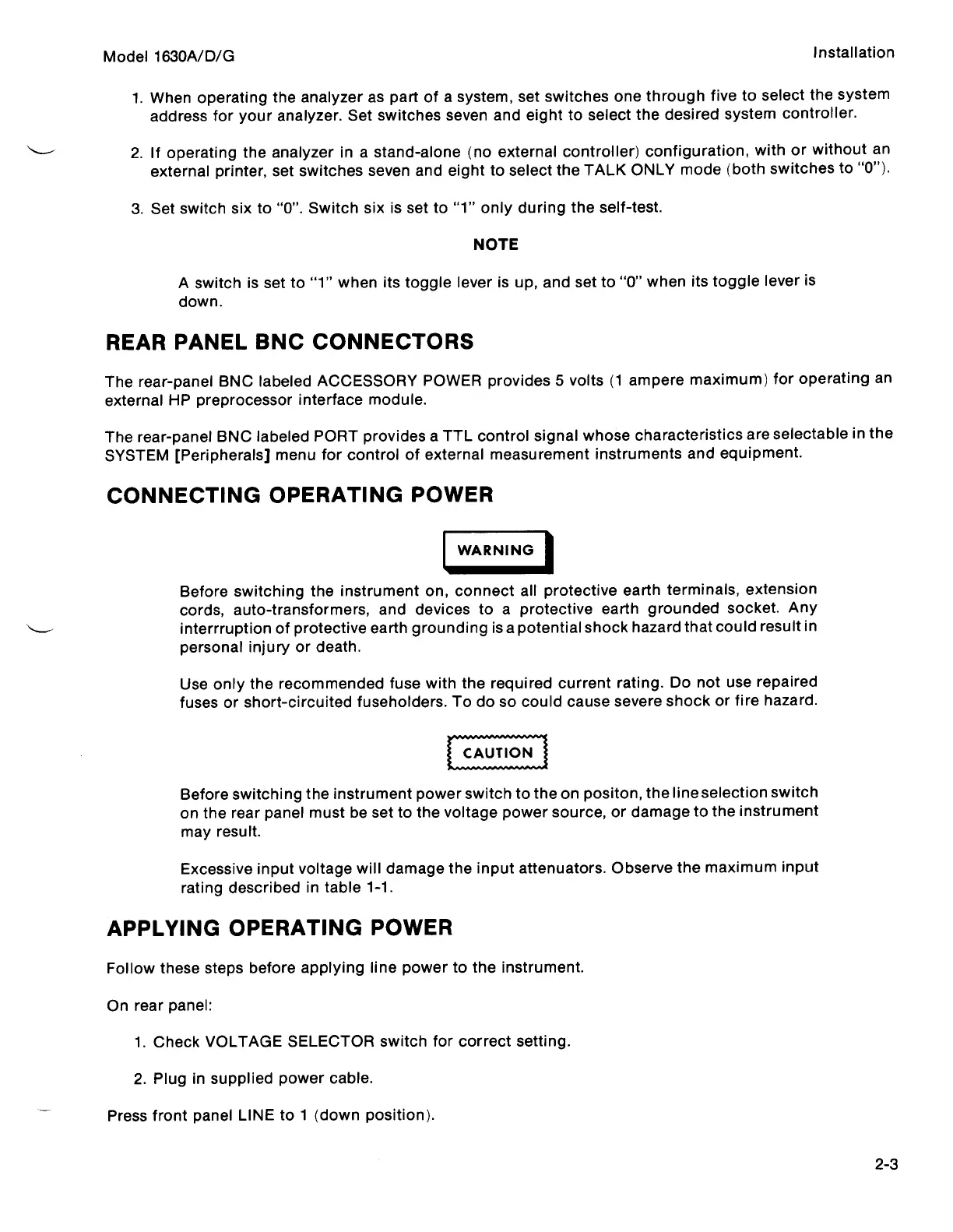

Installation
1
.
When
operating
the
analyzer
as
part
of
a
system,
set
switches
one
through
five
to
select
the
system
address
for
your
analyzer
.
Set
switches
seven
and
eight
to
select
the
desired
system
controller
.
2
.
If
operating
the
analyzer
in
a
stand-alone
(no
external
controller)
configuration,
with
or
without
an
external
printer,
set
switches
seven
and
eight
to
select
the
TALK
ONLY
mode
(both
switches
to
"0")
.
3
.
Set
switch
six
to
"0"
.
Switch
six
is
set
to
"1"
only
during
the
self-test
.
A
switch
is
set
to
"1"
when
its
toggle
lever
is
up,
and
set
to
"0"
when
its
toggle
lever
is
down
.
REAR
PANEL
BNC
CONNECTORS
The
rear-panel
BNC
labeled
ACCESSORY
POWER
provides
5
volts
(1
ampere
maximum)
for
operating
an
external
HP
preprocessor
interface
module
.
The
rear-panel
BNC
labeled
PORT
provides
a
TTL
control
signal
whose
characteristics
are
selectable
in
the
SYSTEM
[Peripherals]
menu
for
control
of
external
measurement
instruments
and
equipment
.
CONNECTING
OPERATING
POWER
Before
switching
the
instrument
on,
connect
all
protective
earth
terminals,
extension
cords,
auto-transformers,
and
devices
to
a
protective
earth
grounded
socket
.
Any
interrruption
of
protective
earth
grounding
is
a
potential
shock
hazard
that
could
result
in
personal
injury
or
death
.
Use
only
the
recommended
fuse
with
the
required
current
rating
.
Do
not
use
repaired
fuses
or
short-circuited
fuseholders
.
To
do
so
could
cause
severe
shock
or
fire
hazard
.
Before
switching
the
instrument
power
switch
to
the
on
positon,
the
lineselection
switch
on
the
rear
panel
must
be
set
to
the
voltage
power
source,
or
damage
to
the
instrument
may
result
.
Excessive
input
voltage
will
damage
the
input
attenuators
.
Observe
the
maximum
input
rating
described
in
table
1-1
.
APPLYING
OPERATING
POWER
NOTE
WARNING
Follow
these
steps
before
applying
line
power
to
the
instrument
.
On
rear
panel
:
1
.
Check
VOLTAGE
SELECTOR
switch
for
correct
setting
.
2
.
Plug
in
supplied
power
cable
.
Press
front
panel
LINE
to
1
(down
position)
.
2-3
23
25
