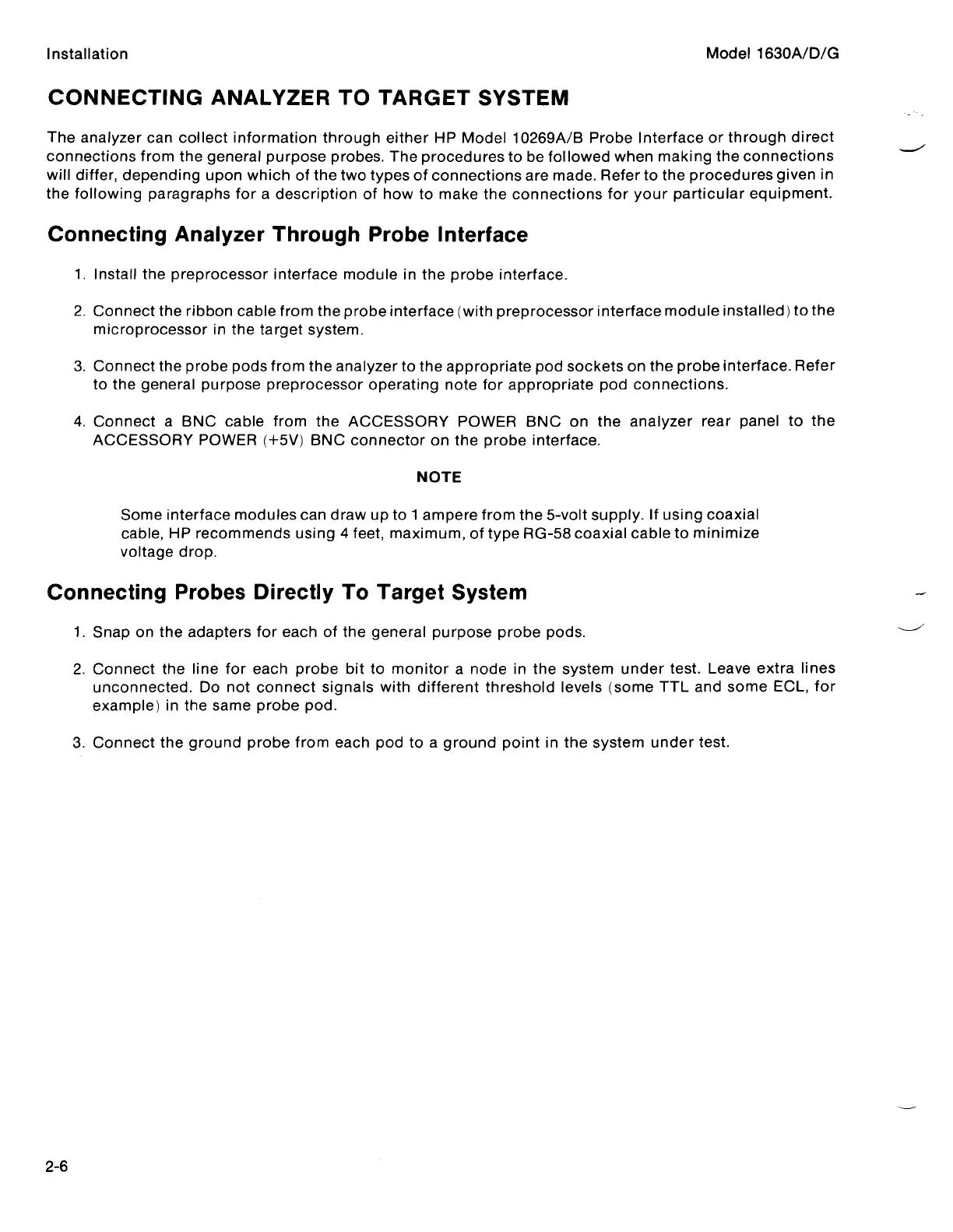

Installation

Model
1630A/D/G
CONNECTING
ANALYZER
TO
TARGET
SYSTEM
The
analyzer
can
collect
information
through
either
HP
Model
10269A/B
Probe
Interface
or
through
direct
connections
from
the
general
purpose
probes
.
The
procedures
to
be
followed
when
making
the
connections
will
differ,
depending
upon
which
of
the
two
types
of
connections
are
made
.
Refer
to
the
procedures
given
in
the
following
paragraphs
for
a
description
of
how
to
make
the
connections
for
your
particular
equipment
.
Connecting
Analyzer
Through
Probe
Interface
1
.
Install
the
preprocessor
interface
module
in
the
probe
interface
.
2
.
Connect
the
ribbon
cable
from
the
probe
interface
(with
preprocessor
interface
module
installed)
to
the
microprocessor
in
the
target
system
.
3
.
Connect
the
probe
pods
from
the
analyzer
to
the
appropriate
pod
sockets
on
the
probe
interface
.
Refer
to
the
general
purpose
preprocessor
operating
note
for
appropriate
pod
connections
.
4
.
Connect
a
BNC
cable
from
the
ACCESSORY
POWER
BNC
on
the
analyzer
rear
panel
to
the
ACCESSORY
POWER
(+5V)
BNC
connector
on
the
probe
interface
.
NOTE
Some
interface
modules
can
draw
up
to
1
ampere
from
the
5-volt
supply
.
If
using
coaxial
cable,
HP
recommends
using
4
feet,
maximum,
of
type
RG-58
coaxial
cable
to
minimize
voltage
drop
.
Connecting
Probes
Directly
To
Target
System
1
.
Snap
on
the
adapters
for
each
of
the
general
purpose
probe
pods
.
2
.
Connect
the
line
for
each
probe
bit
to
monitor
a
node
in
the
system
under
test
.
Leave
extra
lines
unconnected
.
Do
not
connect
signals
with
different
threshold
levels
(some
TTL
and
some
ECL,
for
example)
in
the
same
probe
pod
.
3
.
Connect
the
ground
probe
from
each
pod
to
a
ground
point
in
the
system
under
test
.
