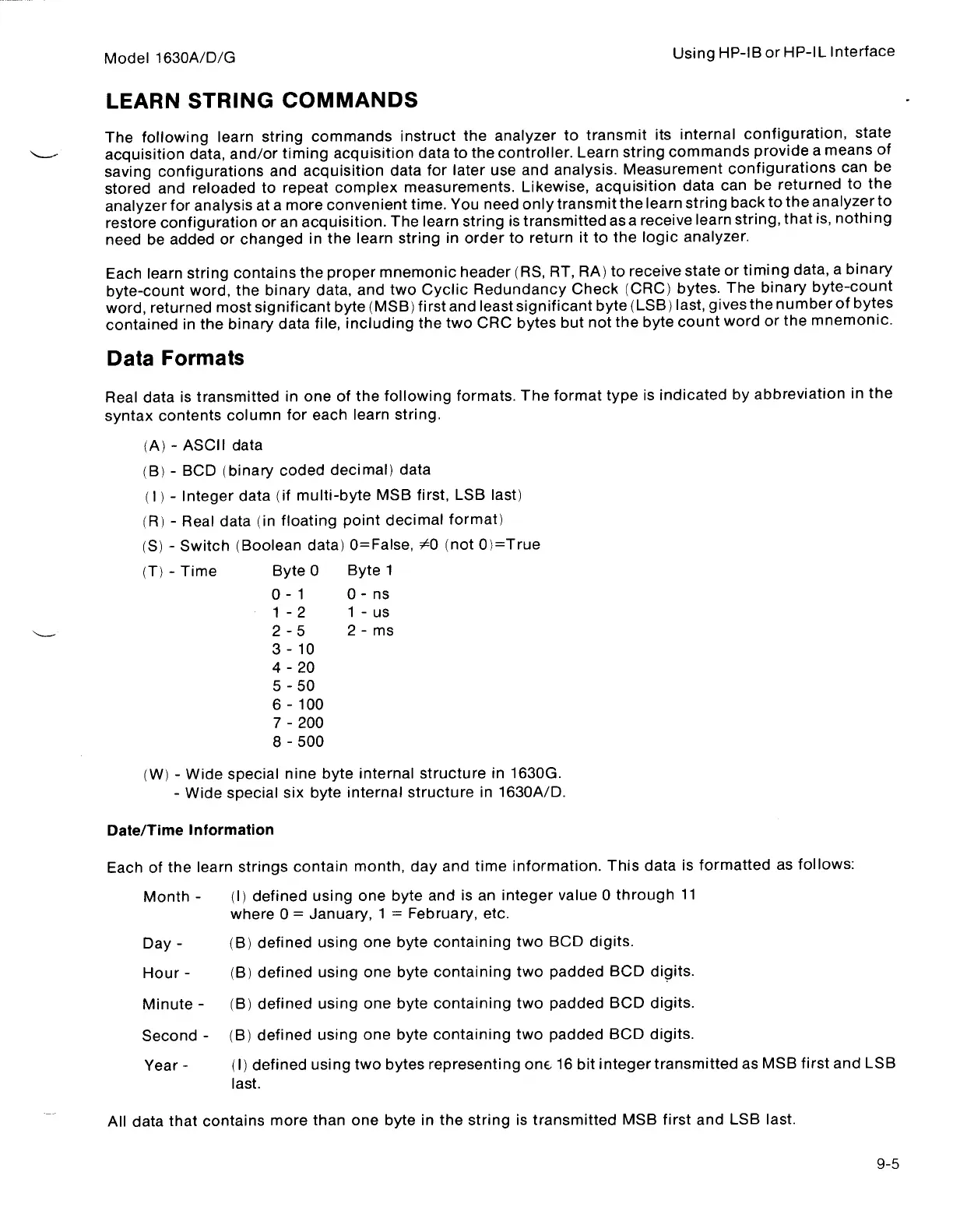

Model
1630A/D/G
Using
HP-IB
or
HP-IL
Interface
LEARN
STRING
COMMANDS
The
following
learn
string
commands
instruct
the
analyzer
to
transmit
its
internal
configuration,
state
acquisition
data,
and/or
timing
acquisition
data
to
the
controller
.
Learn
string
commands
provide
a
means
of
saving
configurations
and
acquisition
data
for
later
use
and
analysis
.
Measurement
configurations
can
be
stored
and
reloaded
to
repeat
complex
measurements
.
Likewise,
acquisition
data
can
be
returned
to
the
analyzer
for
analysis
at
a
more
convenient
time
.
You
need
only
transmit
the
learn
string
back
to
the
analyzer
to
restore
configuration
or
an
acquisition
.
The
learn
string
is
transmitted
asa
receive
learn
string,
that
is,
nothing
need
be
added
or
changed
in
the
learn
string
in
order
to
return
it
to
the
logic
analyzer
.
Each
learn
string
contains
the
proper
mnemonic
header
(RS,
RT,
RA)
to
receive
state
or
timing
data,
a
binary
byte-count
word,
the
binary
data,
and
two
Cyclic
Redundancy
Check
(CRC)
bytes
.
The
binary
byte-count
word,
returned
most
significant
byte
(MSB)
first
and
least
significant
byte
(LSB)
last,
gives
the
numberof
bytes
contained
in
the
binary
data
file,
including
the
two
CRC
bytes
but
not
the
byte
count
word
or
the
mnemonic
.
Data
Formats
Real
data
is
transmitted
in
one
of
the
following
formats
.
The
format
type
is
indicated
by
abbreviation
in
the
syntax
contents
column
for
each
learn
string
.
(A)
-
ASCII
data
(B)
-
BCD
(binary
coded
decimal)
data
(
I
)
-
Integer
data
(if
multi-byte
MSB
first,
LSB
last)
(R)
-
Real
data
(in
floating
point
decimal
format)
(S)
-
Switch
(Boolean
data)
O=False,
7-'0
(not
0)=True
(T)
-
Time
Byte
0
Byte
1
(W)
-
Wide
special
nine
byte
internal
structure
in
1630G
.
-
Wide
special
six
byte
internal
structure
in
1630A/D
.
Date/Time
Information
0-1
0-ns
1
-2
1
-us
2-5
2-ms
3-10
4-20
5-50
6-100
7-200
8-500
Each
of
the
learn
strings
contain
month,
day
and
time
information
.
This
data
is
formatted
as
follows
:
Month
-
(I)
defined
using
one
byte
and
is
an
integer
value
0
through
11
where
0
=
January,
1
=
February,
etc
.
Day
-
(B)
defined
using
one
byte
containing
two
BCD
digits
.
Hour
-
(B)
defined
using
one
byte
containing
two
padded
BCD
digits
.
Minute
-
(B)
defined
using
one
byte
containing
two
padded
BCD
digits
.
Second-
(B)
defined
using
one
byte
containing
two
padded
BCD
digits
.
Year
-
(I)
defined
using
two
bytes
representing
one
16
bit
integer
transmitted
as
MSB
first
and
LSB
last
.
All
data
that
contains
more
than
one
byte
in
the
string
is
transmitted
MSB
first
and
LSB
last
.
9-
5
111
113
