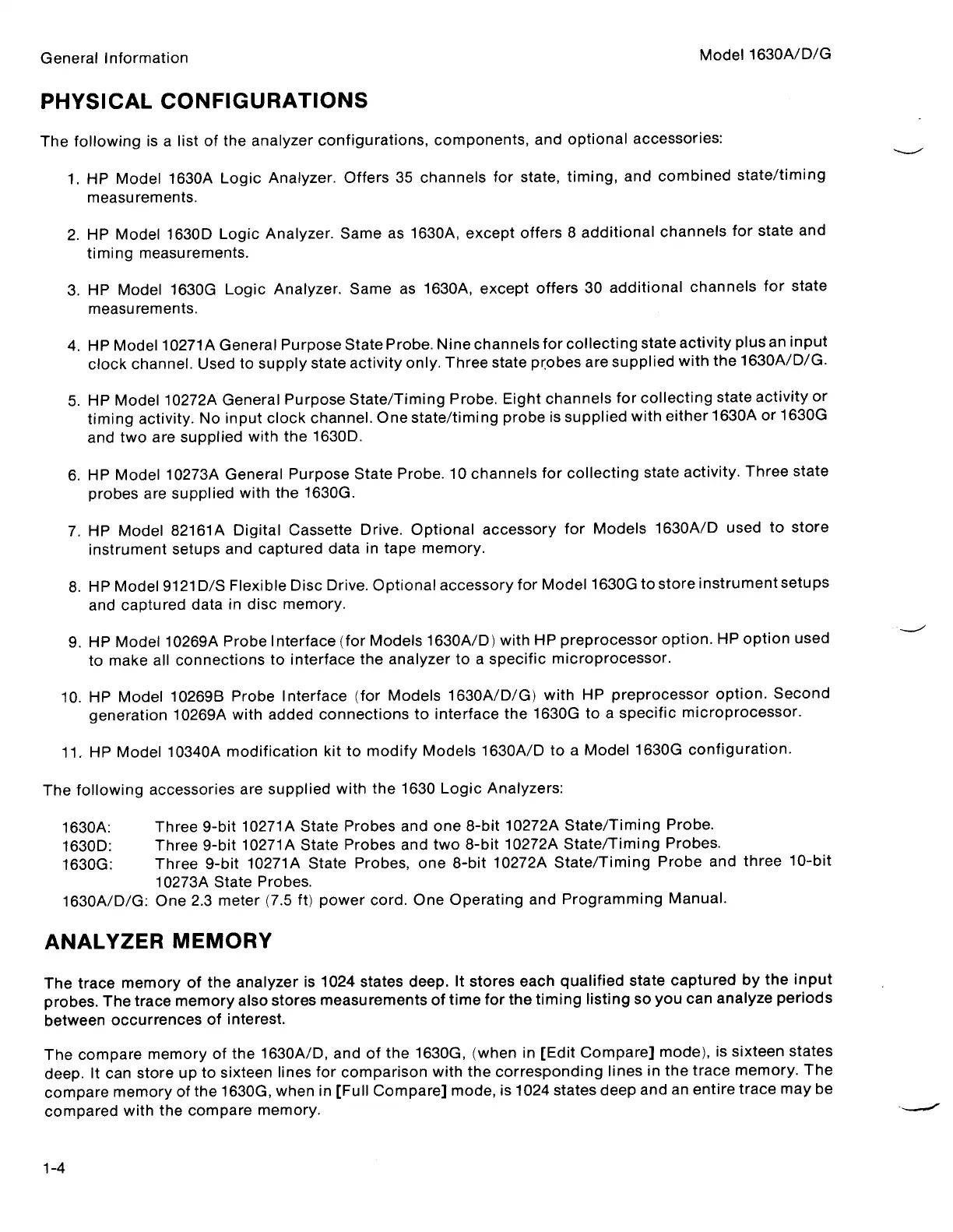

General
Information

Model
1630A/D/G
PHYSICAL
CONFIGURATIONS
The
following
is
a
list
of
the
analyzer
configurations,
components,
and
optional
accessories
:
1
.
HP
Model
1630A
Logic
Analyzer
.
Offers
35
channels
for
state,
timing,
and
combined
state/timing
measurements
.
2
.
HP
Model
1630D
Logic
Analyzer
.
Same
as
1630A,
except
offers
8
additional
channels
for
state
and
timing
measurements
.
3
.
HP
Model
1630G
Logic
Analyzer
.
Same
as
1630A,
except
offers
30
additional
channels
for
state
measurements
.
4
.
HP
Model
10271A
General
Purpose
State
Probe
.
Nine
channels
for
collecting
state
activity
plus
an
input
clock
channel
.
Used
to
supply
state
activity
only
.
Three
state
probes
are
supplied
with
the
1630A/D/G
.
5
.
HP
Model
10272A
General
Purpose
State/Timing
Probe
.
Eight
channels
for
collecting
state
activity
or
timing
activity
.
No
input
clock
channel
.
One
state/timing
probe
is
supplied
with
either
1630A
or
1630G
and
two
are
supplied
with
the
1630D
.
6
.
HP
Model
10273A
General
Purpose
State
Probe
.
10
channels
for
collecting
state
activity
.
Three
state
probes
are
supplied
with
the
1630G
.
7
.
HP
Model
82161A
Digital
Cassette
Drive
.
Optional
accessory
for
Models
1630A/D
used
to
store
instrument
setups
and
captured
data
in
tape
memory
.
8
.
HP
Model
9121
D/S
Flexible
Disc
Drive
.
Optional
accessory
for
Model
1630G
to
store
instrument
setups
and
captured
data
in
disc
memory
.
9
.
HP
Model
10269A
Probe
Interface
(for
Models
1630A/D)
with
HP
preprocessor
option
.
HP
option
used
to
make
all
connections
to
interface
the
analyzer
to
a
specific
microprocessor
.
10
.
HP
Model
10269B
Probe
Interface
(for
Models
1630A/D/G)
with
HP
preprocessor
option
.
Second
generation
10269A
with
added
connections
to
interface
the
1630G
to
a
specific
microprocessor
.
11
.
HP
Model
10340A
modification
kit
to
modify
Models
1630A/D
to
a
Model
1630G
configuration
.
The
following
accessories
are
supplied
with
the
1630
Logic
Analyzers
:
1630A
:

Three
9-bit
10271A
State
Probes
and
one
8-bit
10272A
State/Timing
Probe
.
1630D
:

Three
9-bit
10271A
State
Probes
and
two
8-bit
10272A
State/Timing
Probes
.
1630G
:

Three
9-bit
10271A
State
Probes,
one
8-bit
10272A
State/Timing
Probe
and
three
10-bit
10273A
State
Probes
.
1630A/D/G
:
One
2
.3
meter
(7
.5
ft)
power
cord
.
One
Operating
and
Programming
Manual
.
ANALYZER
MEMORY
The
trace
memory
of
the
analyzer
is
1024
states
deep
.
It
stores
each
qualified
state
captured
by
the
input
probes
.
The
trace
memory
also
stores
measurements
of
time
for
the
timing
listing
so
you
can
analyze
periods
between
occurrences
of
interest
.
The
compare
memory
of
the
1630A/D,
and
of
the
1630G,
(when
in
[Edit
Compare]
mode),
is
sixteen
states
deep
.
It
can
store
up
to
sixteen
lines
for
comparison
with
the
corresponding
lines
in
the
trace
memory
.
The
compare
memory
of
the
1630G,
when
in
[Full
Compare]
mode,
is
1024
states
deep
and
an
entire
trace
may
be
compared
with
the
compare
memory
.
14
