Model
1630A/D/G
State
Measurements
Waveform
Displays

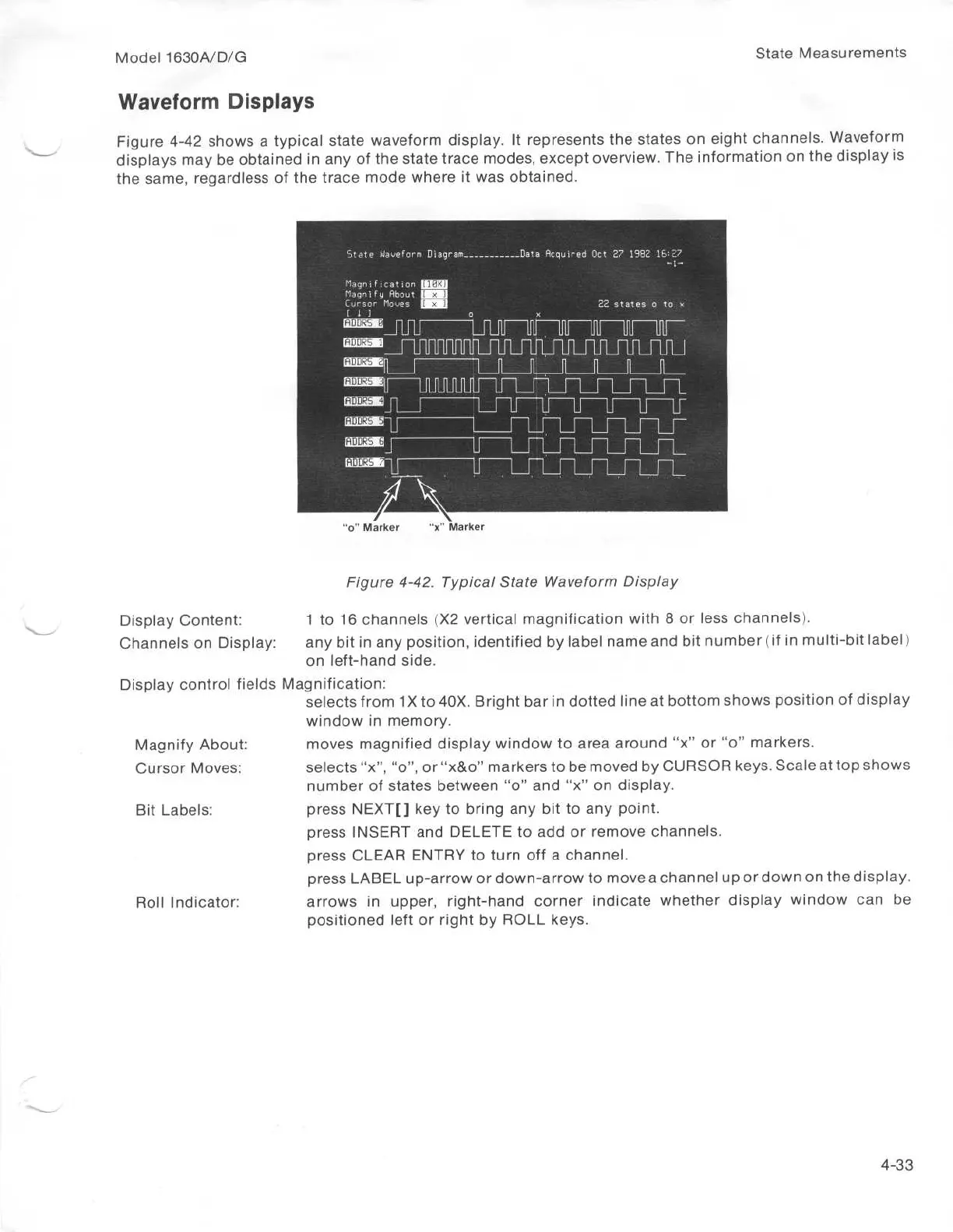

Figure
4-42
shows
a
typical
state
waveform
display
.
It
represents
the
states
on
eight
channels
.
Waveform
displays
may
be
obtained
in
any
of
the
state
trace
modes,
except
overview
.
The
information
on
the
display
is
the
same,
regardless
of
the
trace
mode
where
it
was
obtained
.
"o"
Marker
"x"
Marker
Figure
4-42
.
Typical
State
Waveform
Display
Display
Content
:
1
to
16
channels
(X2
vertical
magnification
with
8
or
less
channels)
.
Channels
on
Display
:
any
bit
in
any
position,
identified
by
label
name
and
bit
number
(if
in
multi-bit
label)
on
left-hand
side
.
Display
control
fields
Magnification
:
selects
from
1X
to
40X
.
Bright
bar
in
dotted
line
at
bottom
shows
position
of
display
window
in
memory
.
Magnify
About
:
moves
magnified
display
window
to
area
around
"x"
or
"o"
markers
.
Cursor
Moves
:
selects
"x",
"o",
or
"x&o"
markers
to
be
moved
by
CURSOR
keys
.
Scale
at
top
shows
number
of
states
between
"o"
and
"x"
on
display
.
Bit
Labels
:
press
NEXT[]
key
to
bring
any
bit
to
any
point
.
press
INSERT
and
DELETE
to
add
or
remove
channels
.
press
CLEAR
ENTRY
to
turn
off
a
channel
.
press
LABEL
up-arrow
or
down-arrow
to
move
a
channel
up
or
down
on
the
display
.
Roll
Indicator
:
arrows
in
upper,
right-hand
corner
indicate
whether
display
window
can
be
positioned
left
or
right
by
ROLL
keys
.
