Model
1630A/D/G

State
Measurements
Resource

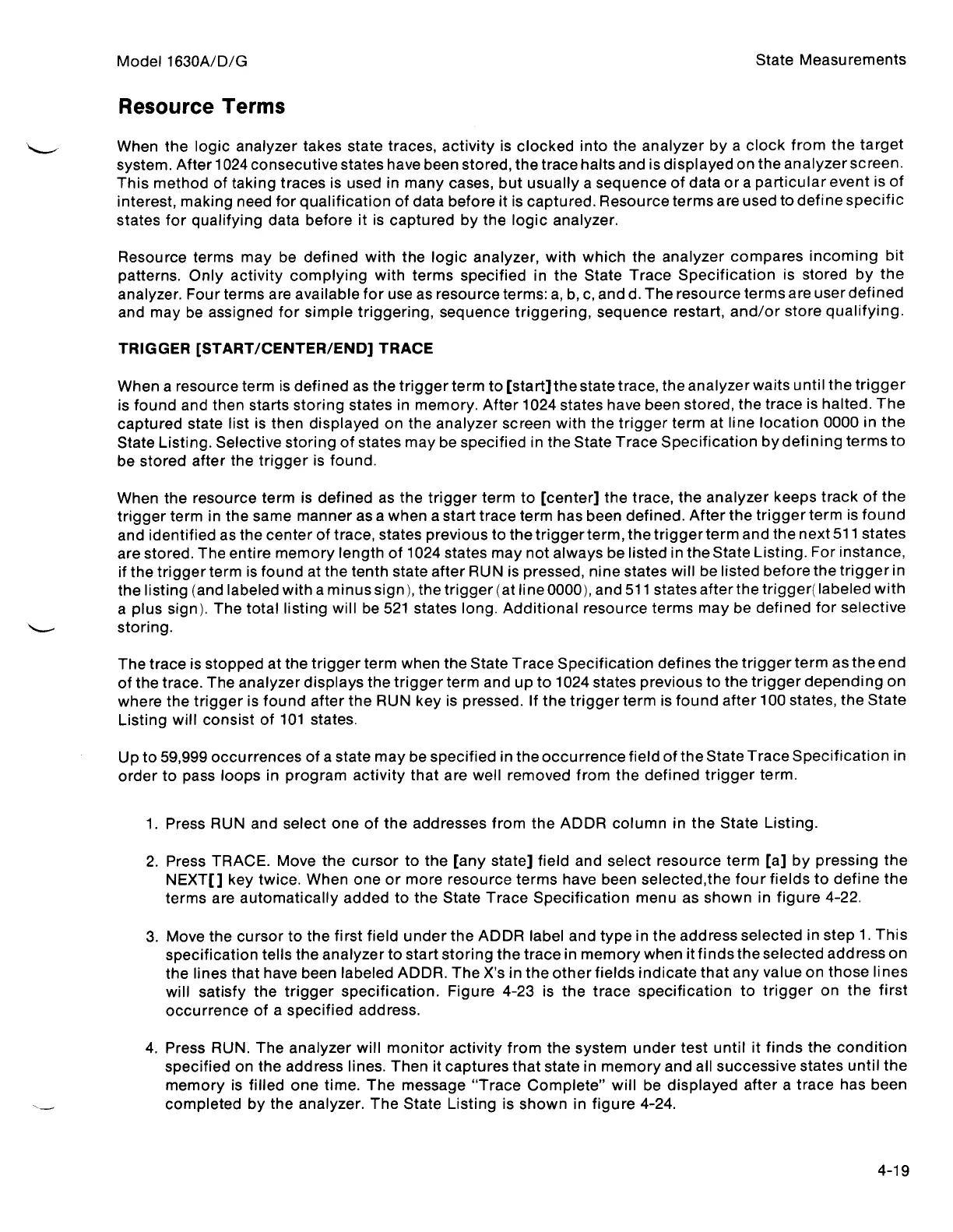

Terms
When
the
logic
analyzer
takes
state
traces,
activity
is
clocked
into
the
analyzer
by
a
clock
from
the
target
system
.
After
1024
consecutive
states
have
been
stored,
the
trace
halts
and
is
displayed
on
the
analyzer
screen
.
This
method
of
taking
traces
is
used
in
many
cases,
but
usually
a
sequence
of
data
or
a
particular
event
is
of
interest,
making
need
for
qualification
of
data
before
it
is
captured
.
Resource
terms
are
used
to
define
specific
states
for
qualifying
data
before
it
is
captured
by
the
logic
analyzer
.
Resource
terms
may
be
defined
with
the
logic
analyzer,
with
which
the
analyzer
compares
incoming
bit
patterns
.
Only
activity
complying
with
terms
specified
in
the
State
Trace
Specification
is
stored
by
the
analyzer
.
Four
terms
are
available
for
use
as
resource
terms
:
a,
b,
c,
and
d
.
The
resource
terms
are
user
defined
and
may
be
assigned
for
simple
triggering,
sequence
triggering,
sequence
restart,
and/or
store
qualifying
.
TRIGGER
[START/CENTER/END]
TRACE
When
a
resource
term
is
defined
as
the
trigger
term
to
[start]the
state
trace,
the
analyzer
waits
until
the
trigger
is
found
and
then
starts
storing
states
in
memory
.
After
1024
states
have
been
stored,
the
trace
is
halted
.
The
captured
state
list
is
then
displayed
on
the
analyzer
screen
with
the
trigger
term
at
line
location
0000
in
the
State
Listing
.
Selective
storing
of
states
may
be
specified
in
the
State
Trace
Specification
bydefining
terms
to
be
stored
after
the
trigger
is
found
.
When
the
resource
term
is
defined
as
the
trigger
term
to
[center]
the
trace,
the
analyzer
keeps
track
of
the
trigger
term
in
the
same
manner
as
a
when
a
start
trace
term
has
been
defined
.
After
the
trigger
term
is
found
and
identified
as
the
center
of
trace,
states
previous
to
the
triggerterm,
the
triggerterm
and
the
next
511
states
are
stored
.
The
entire
memory
length
of
1024
states
may
not
always
be
listed
in
the
State
Listing
.
For
instance,
if
the
trigger
term
is
found
at
the
tenth
state
after
RUN
is
pressed,
nine
states
will
be
listed
before
the
trigger
in
the
listing
(and
labeled
with
a
minus
sign),
the
trigger
(at
line
0000),
and
511
states
after
the
trigger(labeled
with
a
plus
sign)
.
The
total
listing
will
be
521
states
long
.
Additional
resource
terms
may
be
defined
for
selective
storing
.
The
trace
is
stopped
at
the
trigger
term
when
the
State
Trace
Specification
defines
the
trigger
term
as
the
end
of
the
trace
.
The
analyzer
displays
the
trigger
term
and
up
to
1024
states
previous
to
the
trigger
depending
on
where
the
trigger
is
found
after
the
RUN
key
is
pressed
.
If
the
trigger
term
is
found
after
100
states,
the
State
Listing
will
consist
of
101
states
.
Up
to
59,999
occurrences
of
a
state
may
be
specified
in
the
occurrence
field
of
the
State
Trace
Specification
in
order
to
pass
loops
in
program
activity
that
are
well
removed
from
the
defined
trigger
term
.
1
.
Press
RUN
and
select
one
of
the
addresses
from
the
ADDR
column
in
the
State
Listing
.
2
.
Press
TRACE
.
Move
the
cursor
to
the
[any
state]
field
and
select
resource
term
[a]
by
pressing
the
NEXT[]
key
twice
.
When
one
or
more
resource
terms
have
been
selected,the
four
fields
to
define
the
terms
are
automatically
added
to
the
State
Trace
Specification
menu
as
shown
in
figure
4-22
.
3
.
Move
the
cursor
to
the
first
field
under
the
ADDR
label
and
type
in
the
address
selected
in
step
1
.
This
specification
tells
the
analyzer
to
start
storing
the
trace
in
memory
when
it
finds
the
selected
address
on
the
lines
that
have
been
labeled
ADDR
.
The
X's
in
the
other
fields
indicate
that
any
value
on
those
lines
will
satisfy
the
trigger
specification
.
Figure
4-23
is
the
trace
specification
to
trigger
on
the
first
occurrence
of
a
specified
address
.
4
.
Press
RUN
.
The
analyzer
will
monitor
activity
from
the
system
under
test
until
it
finds
the
condition
specified
on
the
address
lines
.
Then
it
captures
that
state
in
memory
and
all
successive
states
until
the
memory
is
filled
one
time
.
The
message
"Trace
Complete"
will
be
displayed
after
a
trace
has
been
completed
by
the
analyzer
.
The
State
Listing
is
shown
in
figure
4-24
.
4-
1
9
51
53
