State
Measurements

Model
1630A/D/G
[Continuous]
LIST
DISPLAYS
The
list
in
the
continuous
trace
mode
is
like
the
list
in
the
single
trace
mode,
except
that
"Continuous
Trace
in
Process"
appears
at
the
top
.
In
this
mode,
the
analyzer
makes
a
continuous
series
of
single
traces,
updating
the
display
each
time
it
completes
a
trace
.
The
content
of
the
list
will
change
as
each
new
trace
is
completed
if
the
display
is
updated
with
different
information
.
To
stop
a
continuous
trace,
press
the
STOP
key
.
This
causesthe
analyzer
to
complete
its
trace
in
progress
and
not
start
a
new
trace
.
[Compare]
LIST
DISPLAYS

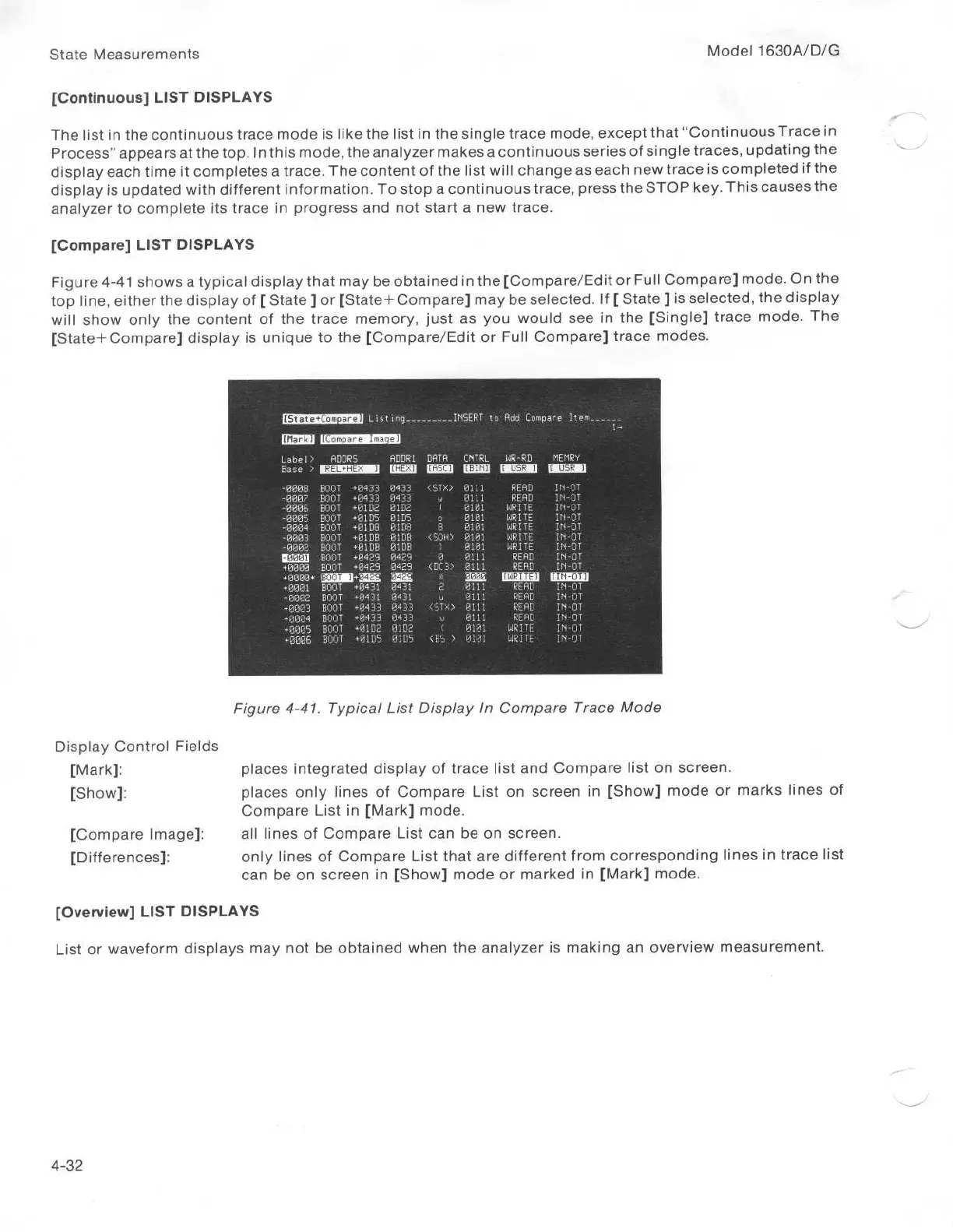

Figure
4-41
shows
a
typical
display
that
may
be
obtained
in
the
[Compare/Edit
or
Full
Compare]
mode
.
On
the
top
line,
either
the
display
of
[
State
]
or
[State+Compare]
may
be
selected
.
If
[
State
]
is
selected,
the
display
will
show
only
the
content
of
the
trace
memory,
just
as
you
would
see
in
the
[Single]
trace
mode
.
The
[State+Compare]
display
is
unique
to
the
[Compare/Edit
or
Full
Compare]
trace
modes
.
Display
Control
Fields
[Overview]
LIST
DISPLAYS
Figure
4-41
.
Typical
List
Display
In
Compare
Trace
Mode
[Mark]
:

places
integrated
display
of
trace
list
and
Compare
list
on
screen
.
[Show]
:

places
only
lines
of
Compare
List
on
screen
in
[Show]
mode
or
marks
lines
of
Compare
List
in
[Mark]
mode
.
[Compare
Image]
:

all
lines
of
Compare
List
can
be
on
screen
.
[Differences]
:

only
lines
of
Compare
List
that
are
different
from
corresponding
lines
in
trace
list
can
be
on
screen
in
[Show]
mode
or
marked
in
[Mark]
mode
.
List
or
waveform
displays
may
not
be
obtained
when
the
analyzer
is
making
an
overview
measurement
.
Listing
---------
INSERT
to
Add
Compare
Item__-
Islt
Labe1>
Base
>
ADDRS
ADDR1
®
DATA
®
CNTRL
f
WR-RD
MEMRY
-0006
BOOT
+0433
0433
<STX>
0111
READ
IH-OT
-0007
BOOT
+0433
0433
w
0111
READ
IH-OT
-0006
BOOT
+0102
01132
(
0101
WRITE
IN-OT
-0005
BOOT
+0105
0105
0
0101
WRITE
IN-OT
-0004
BOOT
+01
D8
01D8
8
0101
WRITE
IN-OT
-0003
BOOT
+01DB
010B
<SOH>
0101
WRITE
IN-OT
-0002
BOOT
+01DB
01DB
0101
WRITE
IN-OT
BOOT
+0429
0429
0
0111
READ
IN-OT
+0000
BOOT
+0429
0429
<DC3>
0111
READ
IN-OT
+0000*
BOOT
1
+=
+0001
BOOT
+0431
0431
2
0111
READ
IN-OT
+0002
BOOT
+0431
0431
a
0111
READ
IN-OT
+0003
BOOT
+0433
0433
(57X0
0111
READ
IN-OT
+0004
BOOT
+0433
0433
0111
READ
IN-OT
+5005
BOOT
+0102
0102
(
0101
WRITE
IN-OT
+0006
BOOT
+0105
01115
<ES
)
0151
WRITE
IN-OT
64
66
