Introducing the Switch

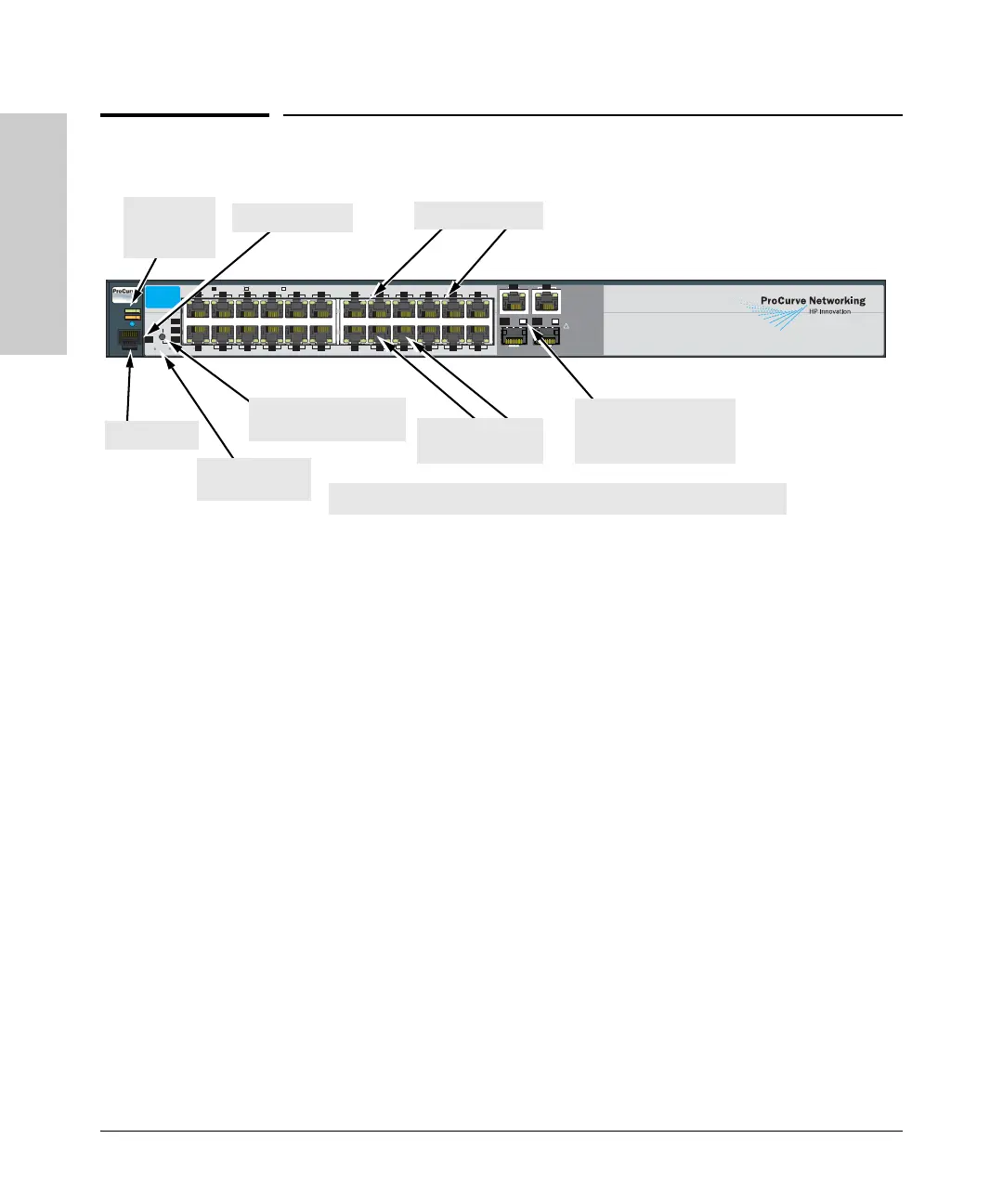

Front of the Switch
Introducing the Switch
Front of the Switch
Network Ports
■ 24 auto-sensing 10/100Base-TX ports.
All these ports have the “IEEE Auto MDI/MDI-X” feature, which means
you can use either straight-through or crossover twisted-pair cables to
connect any network devices to the switch.
■ Two dual-personality ports. Use either the 10/100/1000Base-T RJ-45
connector, or install a supported ProCurve mini-GBIC for fiber-optic
connections.
The RJ-45 connectors support the IEEE Auto MDI/MDI-X feature, which
means you can use either straight-through or crossover twisted-pair
cables to connect any network device to the switch.
Dual-Personality Port Operation. By default, the RJ-45 connectors are
enabled. If a mini-GBIC is installed in a slot, it is enabled and the associated
RJ-45 connector is disabled and cannot be used. If the mini-GBIC is removed,
the associated RJ-45 port is automatically re-enabled.
Console Port
This port is used to connect a console to the Series 2510 Switch by using the
supplied cable with the switch. The console port is located on the front of the
Switch. This connection is described under “Connect a Console to the Switch”
in chapter 2, “Installing the Switch.” The console can be a PC or workstation
running a VT-100 terminal emulator, or a VT-100 terminal.
Power
Fault
Locator
Console
10/100Base-T Ports (1 - 24)  Ports are HP Auto MDI-X
Dual-Personality Ports:
10/100/1000-T (T)
or Mini-GBIC (M)
!
Use only one (T or M)
for each Port
25M
*
Spd mode: off = 10 Mbps, flash = 100 Mbps, on = 1000 Mbps
12
10
864
2
11
97
5
3
1
Link
Mode
Link
Mode
24
222018
16
14
23
2119
17
15
13
Link
Mode
Link
Mode
Link
Mode
LED
Mode
Clear
Reset
Test
FDx
Spd
Act
*
ProCurve Switch
2510-24
J9019A
26M
25T 26T
Link
Mode
ProCurve Switch 2510-24
* 10/100/1000Base-T ports have the IEEE Auto MDI/MDI-X feature.
Power, Fault
and Locator
LEDs
Test Status LED
Switch port LEDs
Console port
LED Mode select button
and indicator LEDs
Reset and Clear
buttons
Dual-personality ports
(10/100/1000Base-T* or
mini-GBIC)
10/100Base-TX RJ-
45 ports*
