2-12
Installing the Switch
Installation Procedures
Installing the Switch
Rack Mounting the Switch 2510-24

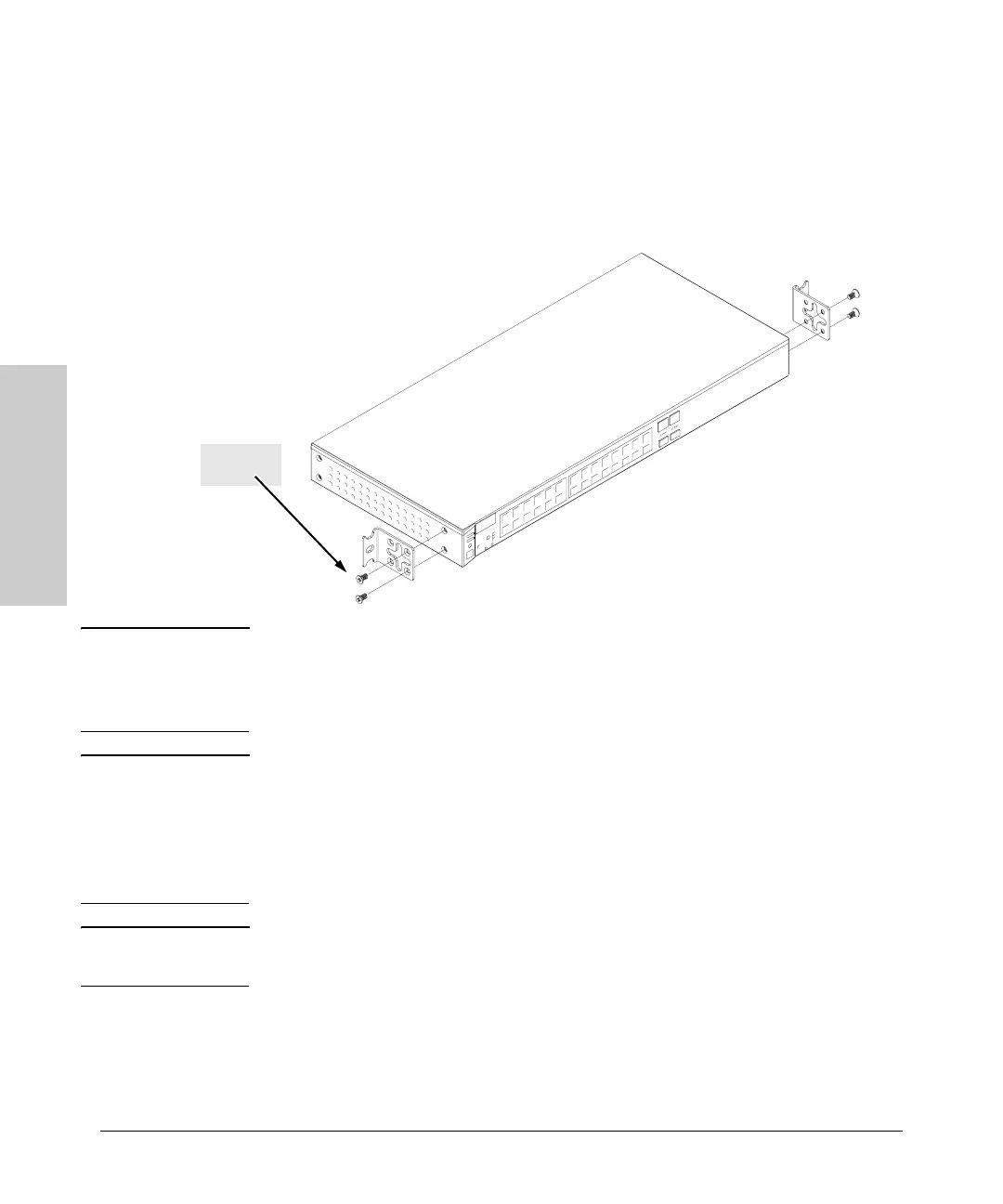

1. Use a #1 Phillips (cross-head) screwdriver and attach the mounting
brackets to the switch with the included 8-mm M4 screws.
Note The mounting brackets have multiple mounting holes and can be rotated
allowing for a wide variety of mounting options. These include mounting the
switch so its front face is flush with the face of the rack, or mounting it in a
more balanced position as shown in the illustration.
Note Steps 2, 3, and 4 on the next page describe a convenient method of mounting
the switch in a rack by placing it on two screws that you first install in the
rack. You may, instead, just hold the switch with attached brackets up to the
rack and move it vertically until rack holes line up with the bracket holes and
notches, then insert and tighten the four screws holding the brackets to the
rack.
WARNING For safe reliable installation, only use the screws provided in the
accessory kit to attach the mounting brackets to the switch.
8 mm
M4 screws
To Next Page
