HP 2510-24 User Manual

2-10
Installing the Switch
Installation Procedures
Installing the Switch
2. Check the LEDs on the switch as described below.
When the switch is powered on, it performs its diagnostic self test. Self
test takes approximately 50 seconds to complete.
LED Behavior:
During the self test:
• Initially, all the status, LED Mode and port LEDs are on for most of
the duration of the test.
• Most of the LEDs go off and then may come on again during phases
of the self test. For the duration of the self test, the Test LED stays on.
When the self test completes successfully:
•The Power LED remains on.
•The Fault and Test LEDs go off.
• The port LEDs on the front of the switch go into their normal opera-
tional mode:
– If the ports are connected to active network devices, the LEDs
behave according to the LED Mode selected. In the default view
mode (Link), the LEDs should be on.
– If the ports are not connected to active network devices, the LEDs
will stay off.
If the LED display is different than what is described above, especially if
the Fault and Test LEDs stay on for more than 60 seconds or they start
blinking, the self test has not completed correctly. Refer to chapter 4,
“Troubleshooting” for diagnostic help.
Power
Fault
Locator
Console
10/100Base-T Ports (1 - 24)  Ports are HP Auto MDI-X
25 M
*
Spd mode: off = 10 Mbps, flash = 100 Mbps, on = 1000 Mbps
12
10
864
2
11
97
5
3
1
Link
Mode
Link
Mode
24
222018
16
14
23
2119
17
15
13
Link
Mode
Link
Mode
Link
LED
Mode
Clear
Reset
Test
FDx
Spd
Act
*
ProCurve Switch
2510-24
J9019A
Link

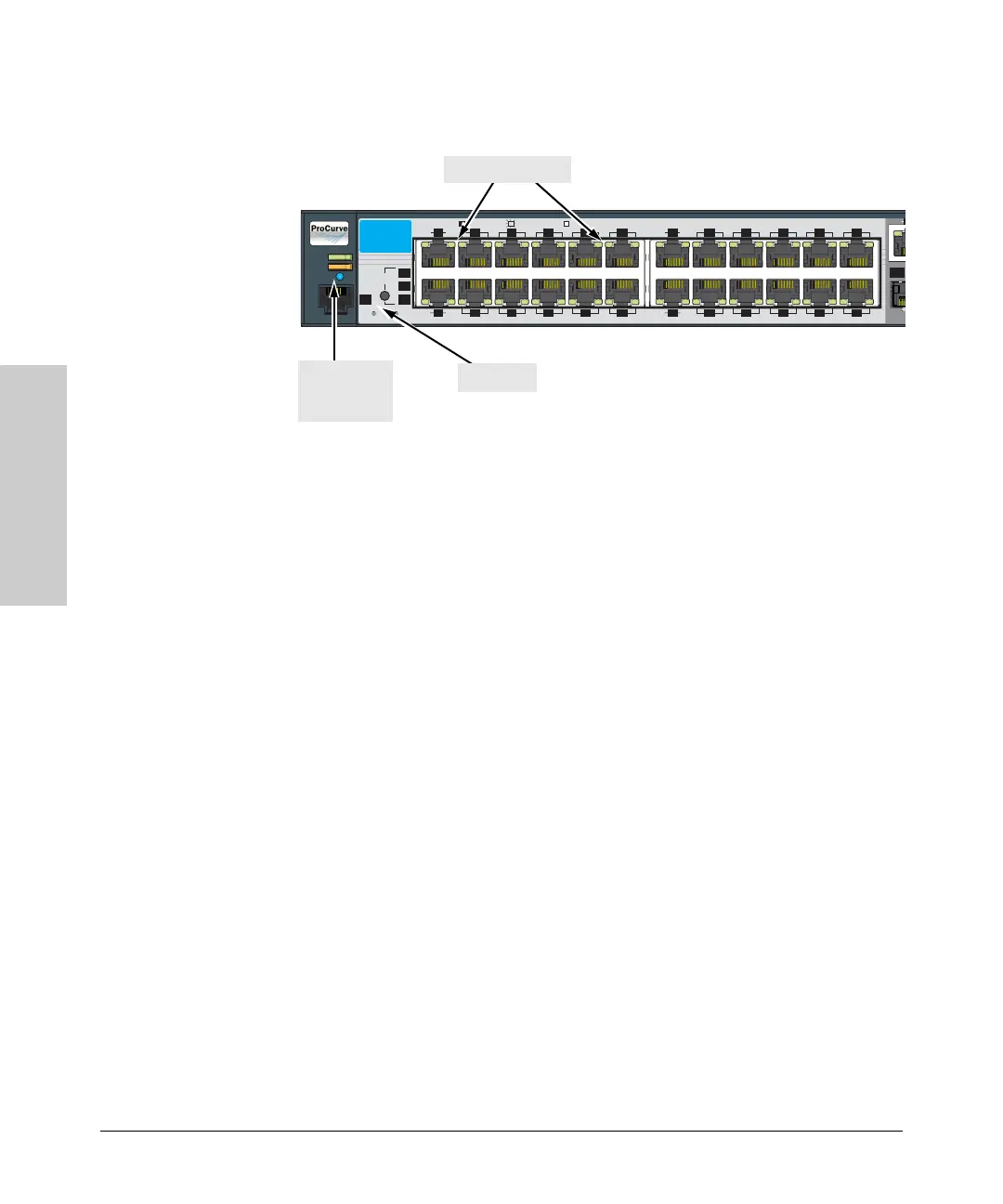

ProCurve Switch 2510-24 (J9019A)
Test LED
Switch port LEDs
Power, Fault
and locator
LEDs
