Installing the Switch
Installation Procedures
Installing the Switch
Wall Mounting
Caution The switch can only be mounted with the RJ-45 ports facing up.
1. Use a #1 Phillips (cross-head) screwdriver and attach the mounting
brackets to the switch with the included 8-mm M4 screws.
2. Attach the switch to the wall or wood surface with two 5/8-inch number
12 wood screws (not included).
5. Connect the Switch to a Power Source
1. Plug the included power cord into the switch’s power connector and into
a nearby AC power source.
2. Re-check the LEDs during self test. See “LED Behavior” on page 2-10

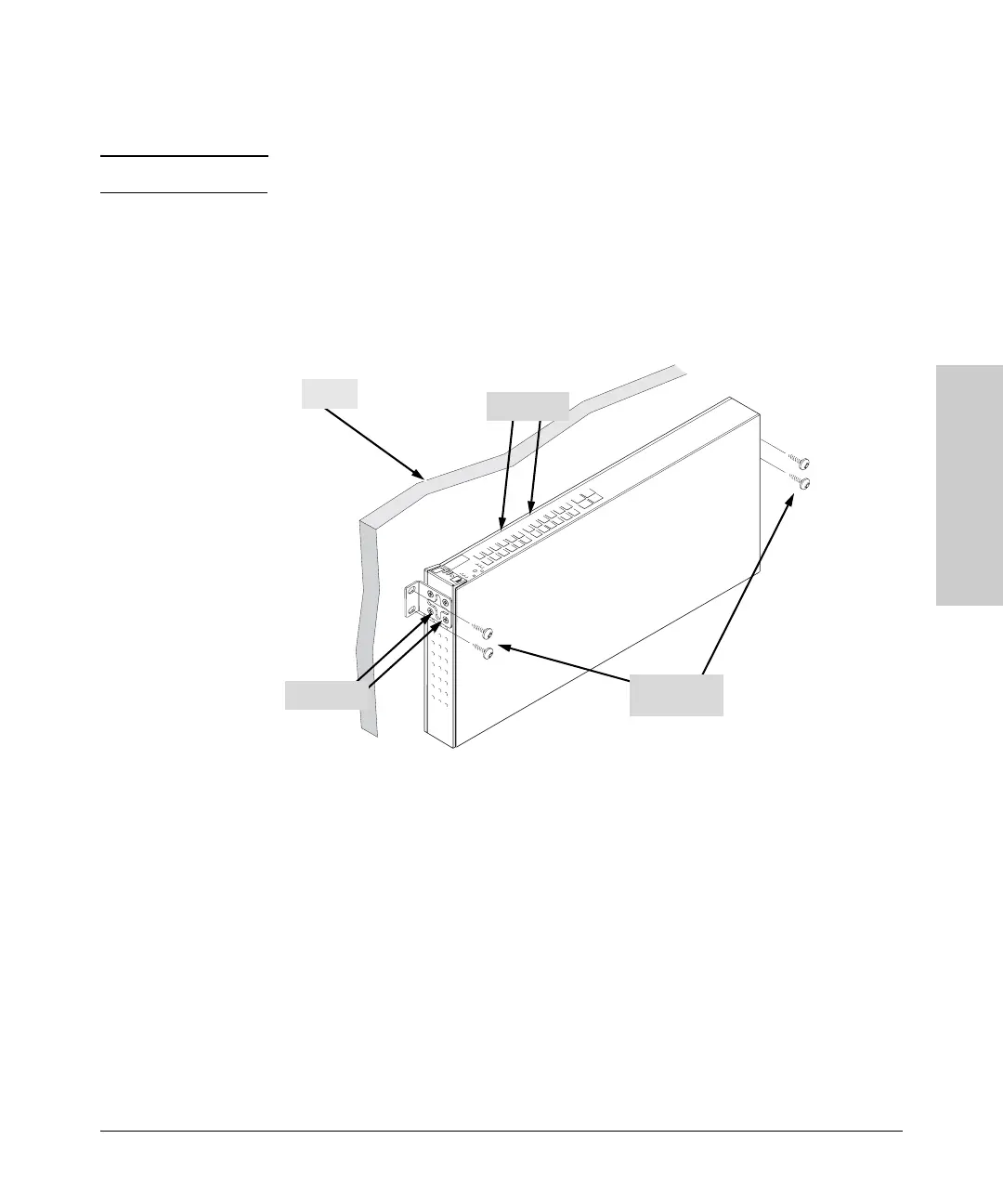

Wall
5/8-inch
wood screws
M4 screws
RJ-45 Ports
To Next Page
